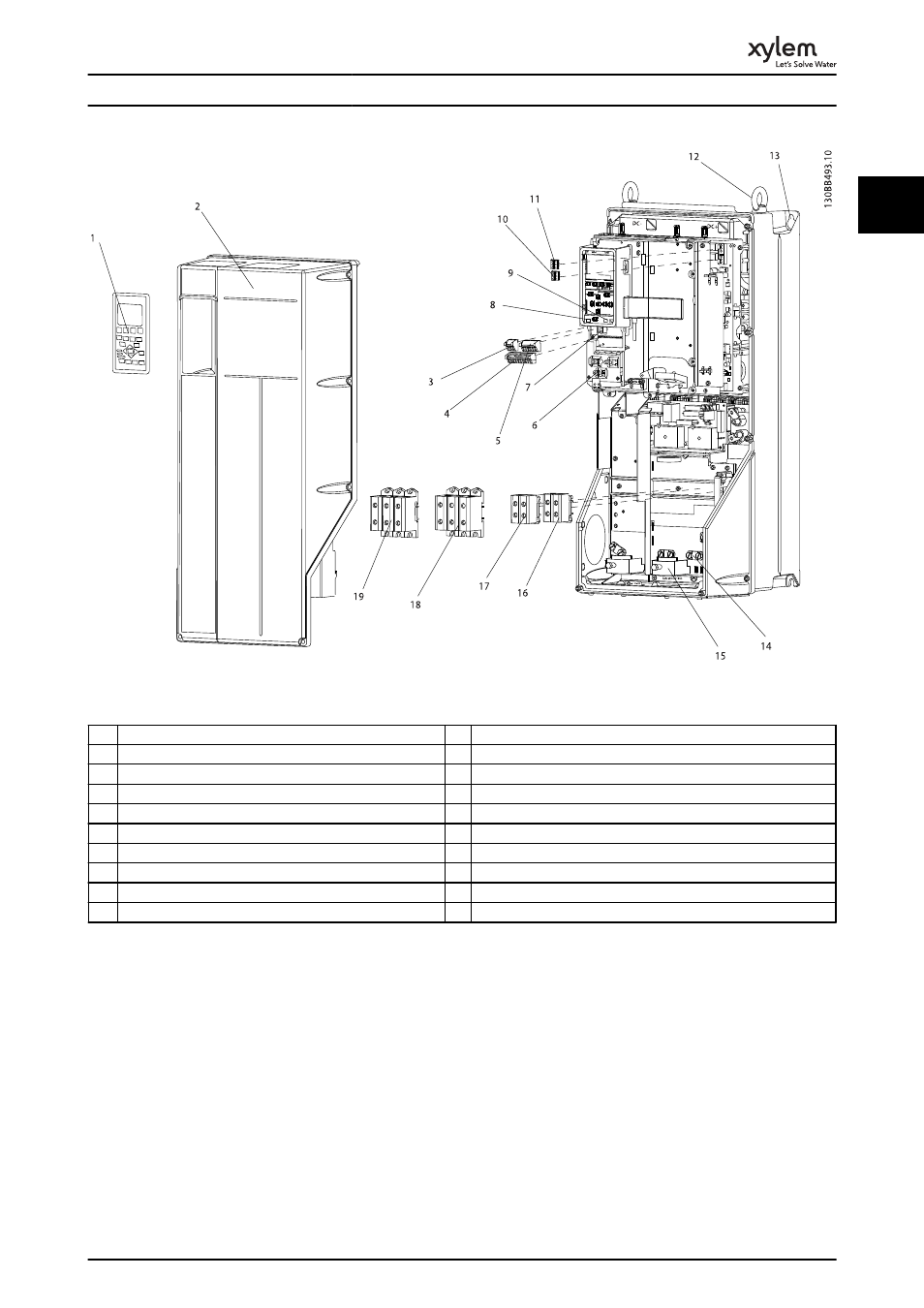

Illustration 1.2 Exploded View Frame Sizes B and C

1

LCP

11

Relay 2 (04, 05, 06)

2

Cover

12

Lifting ring

3

RS-485 serial bus connector

13

Mounting slot

4

Digital I/O and 24 V power supply

14

Grounding clamp (PE)

5

Analog I/O connector

15

Cable strain relief / PE ground

6

Cable strain relief/PE ground

16

Brake terminal (-81, +82)

7

USB connector

17

Load sharing terminal (DC bus) (-88, +89)

8

Serial bus terminal switch

18

Motor output terminals 96 (U), 97 (V), 98 (W)

9

Analog switches (A53), (A54)

19

Mains input terminals 91 (L1), 92 (L2), 93 (L3)

10

Relay 1 (01, 02, 03)

Table 1.2 Legend to Illustration 1.2
