2.

Mount cable clamp to ensure 360

° connection

between chassis and screen, note the outer
insulation of the motor cable is removed under
the clamp.

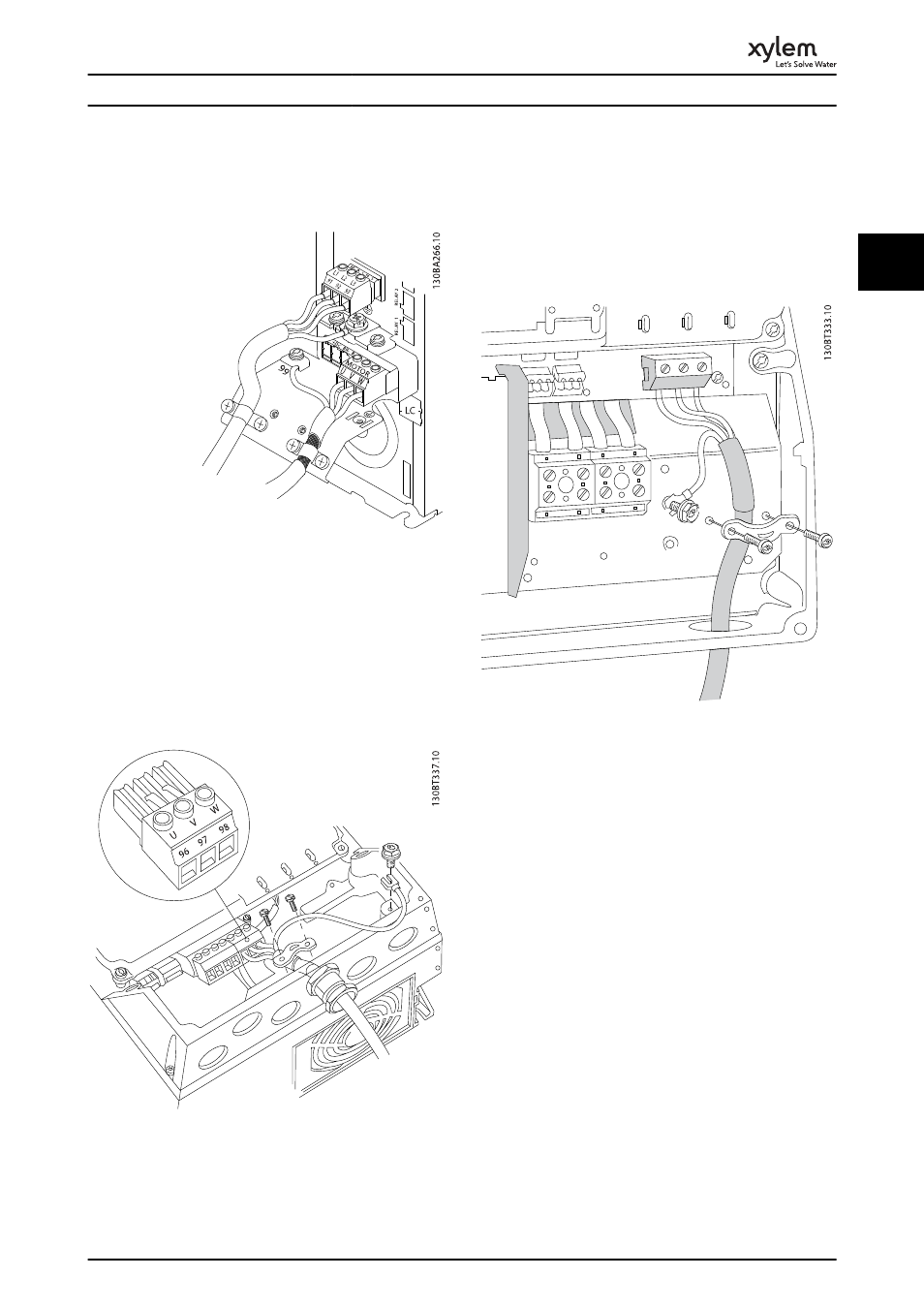

Illustration 2.12 Cable Clamp Mounting

2.4.3.2 Motor Connection for A4 and A5

1.

Terminate the motor earth

2.

Place motor U, V and W wires in terminal and
tighten

3.

Ensure that the outer insulation of the motor
cable is removed under the EMC clamp

Illustration 2.13 Motor Connection for A4 and A5

2.4.3.3 Motor Connection for B1 and B2

1.

Terminate the motor earth

2.

Place motor U, V and W wires in terminal and
tighten

3.

Ensure that the outer insulation of the motor
cable is removed under the EMC clamp

Illustration 2.14 Motor Connection for B1 and B2

2.4.3.4 Motor Connection for C1 and C2

1.

Terminate the motor earth

2.

Place motor U, V and W wires in terminal and
tighten

3.

Ensure that the outer insulation of the motor
cable is removed under the EMC clamp

Installation

15

2

2
