Terminal Description
Digital Inputs/Outputs
Terminal Parameter
Default
Setting
Description
12, 13
-
+24 V DC
24 V DC supply
voltage. Maximum
output current is 200
mA total for all 24 V
loads. Useable for
digital inputs and
external transducers.
18
5-10
[8] Start
Digital inputs.
19
5-11
[0] No
operation
32
5-14
[0] No
operation
33
5-15
[0] No
operation
27
5-12
[2] Coast
inverse
Selectable for digital
input and output.
Default setting is
input.
29
5-13
[14] JOG
20
-
Common
for
digital
inputs and 0 V
potential for 24 V
supply.
Analog Inputs/Outputs
39
-
Common for analog
output
42
6-50
Speed 0 -
High Limit
Programmable analog
output. The analog
signal is 0-20 mA or
4-20 mA at a
maximum of 500
Ω
50
-
+10 V DC
10 V DC analog
supply voltage. 15 mA
maximum commonly
used for potenti-
ometer or thermistor.
53
6-1
Reference
Analog input.
Selectable for voltage
or current. Switches
A53 and A54 select
mA or V.
54
6-2
Feedback
55
-
Common for analog
input
Serial Communication
61
-
Integrated RC-Filter
for cable screen. ONLY
for connecting the
screen when experi-
encing EMC problems.
68 (+)
8-3
RS-485 Interface. A
control card switch is
provided for
termination resistance.
69 (-)
8-3
Terminal Description
Digital Inputs/Outputs
Terminal Parameter
Default
Setting
Description
Relays
01, 02, 03
5-40 [0]
[0] Alarm
Form C relay output.
Usable for AC or DC
voltage and resistive
or inductive loads.
04, 05, 06
5-40 [1]
[0] Running
Table 2.6 Terminal Description
2.4.5.3 Wiring to Control Terminals
Control terminal connectors can be unplugged from the
frequency converter for ease of installation, as shown in
Illustration 2.20.

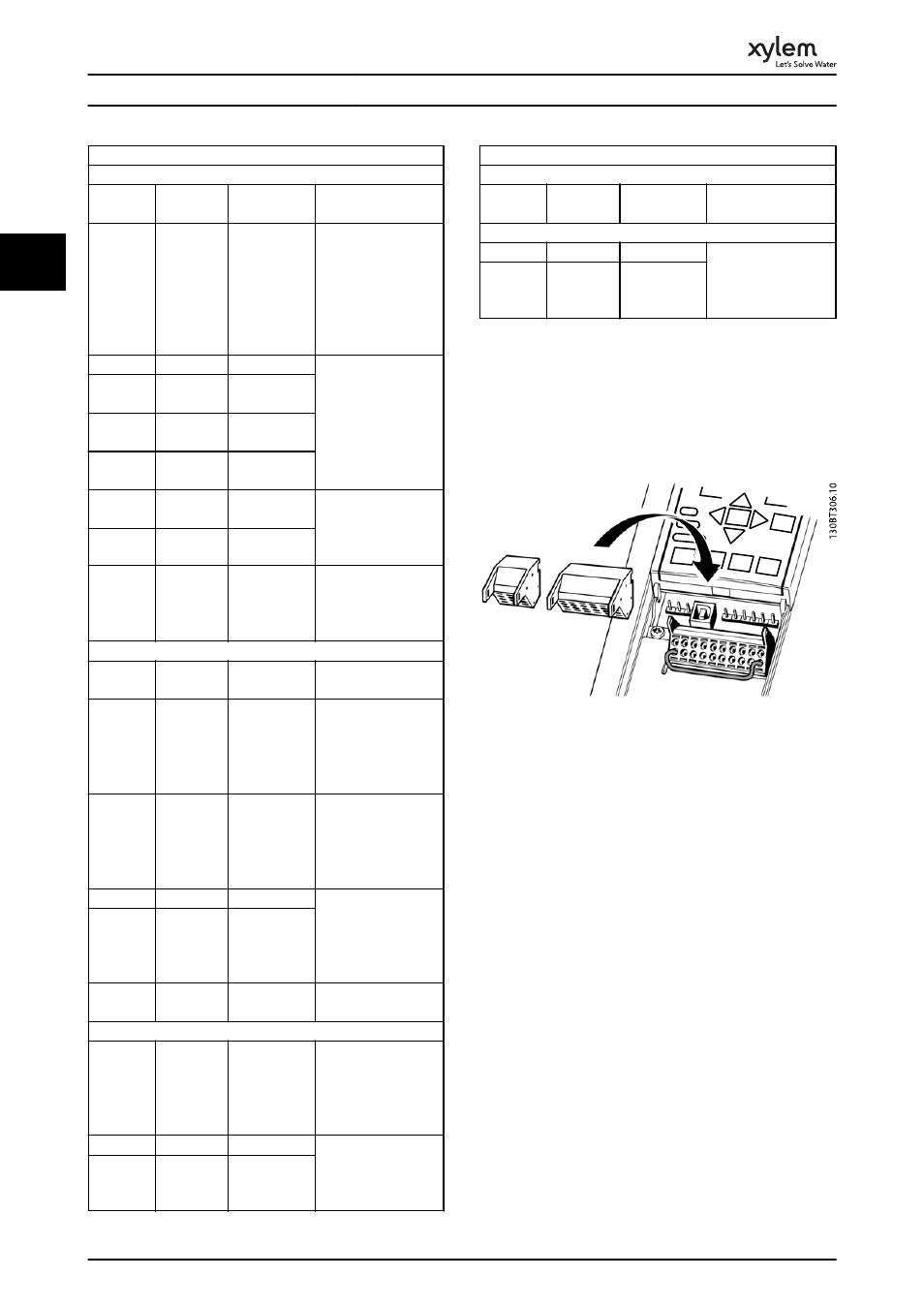

Illustration 2.20 Unplugging Control Terminals
1.
Open the contact by inserting a small screwdriver
into the slot above or below the contact, as
shown in Illustration 2.21.
2.
Insert the bared control wire into the contact.
3.
Remove the screwdriver to fasten the control wire
into the contact.
4.
Ensure the contact is firmly established and not
loose. Loose control wiring can be the source of
equipment faults or less than optimal operation.
See 10.1 Power-dependent Specifications for control terminal
wiring sizes.
See 6 Application Set-Up Examples for typical control wiring
connections.
