Note 5: The default value depends on the number of motor poles. For
a 4 poled motor the international default value is 1500 RPM and for
a 2 poled motor 3000 RPM. The corresponding values for North
America is 1800 and 3600 RPM, respectively.
Changes made to default settings are stored and available
for viewing in the quick menu along with any
programming entered into parameters.
1. Press [Quick Menu].
2. Scroll to Q5 Changes Made and press [OK].
3. Select Q5-2 Since Factory Setting to view all
programming changes or Q5-1 Last 10 Changes
for the most recent.

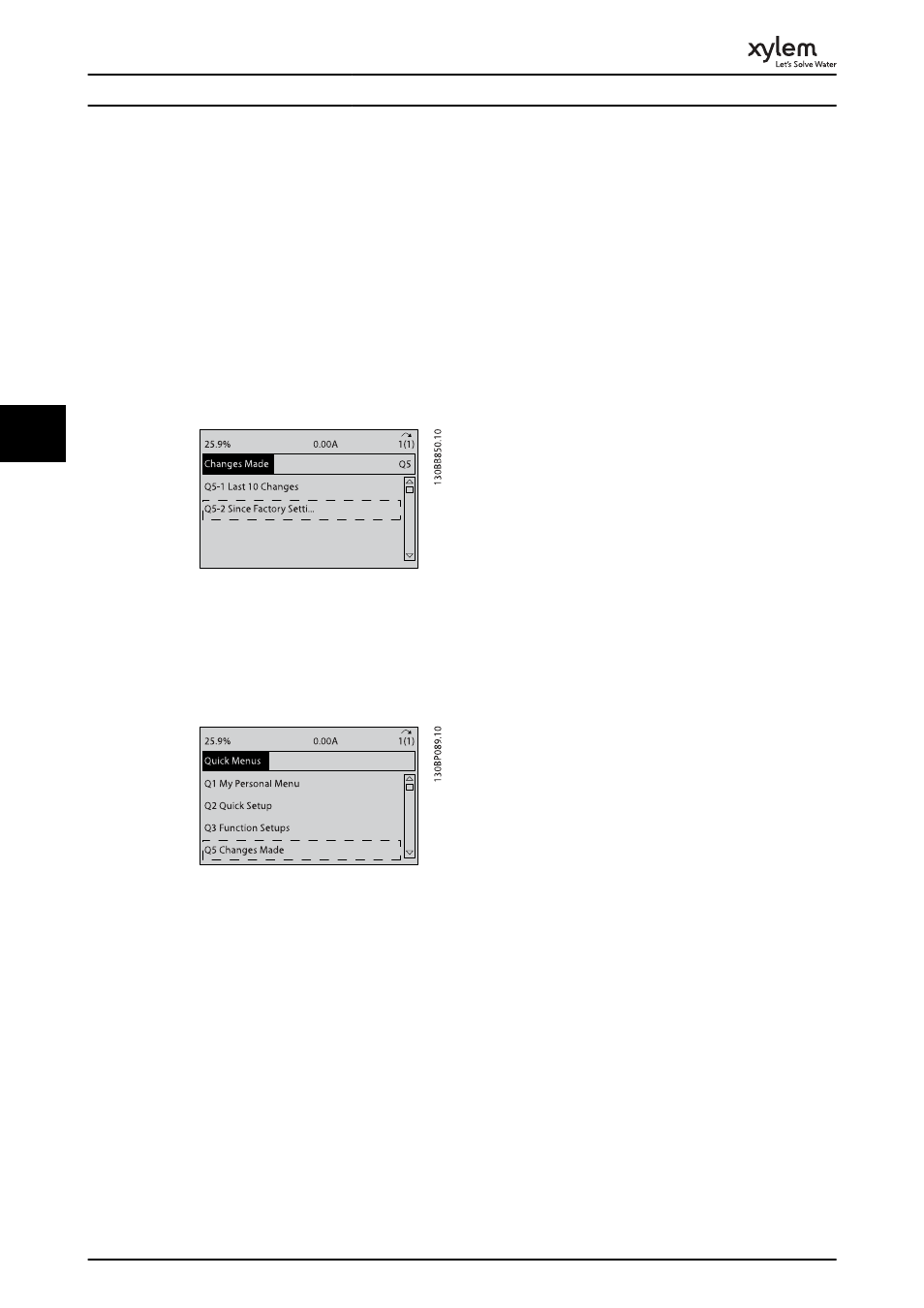

Illustration 5.12 Changes Made
5.4.1 Parameter Data Check
1. Press [Quick Menu].
2. Scroll to Q5 Changes Made and press [OK].
Illustration 5.13 Q5 Changes Made
3. Select Q5-2 Since Factory Setting to view all
programming changes or Q5-1 Last 10 Changes
for the most recent.
5.5 Parameter Menu Structure
Establishing the correct programming for applications
often requires setting functions in several related
parameters. These parameter settings provide the
frequency converter with system details it needs to
operate properly. System details may include such things
as input and output signal types, programming terminals,
minimum and maximum signal ranges, custom displays,
automatic restart, and other features.
• See the LCP display to view detailed parameter
programming and setting options
• Press [Info] in any menu location to view
additional details for that function
• Press and hold [Main Menu] to enter a parameter
number for direct access to that parameter
• Details for common application set ups are
provided in 6 Application Set-Up Examples.
