4 electrical installation – Bell & Gossett P2001487 Technologic Pump Controller User Manual
Page 13
2.4 Electrical
Installation
This section contains detailed instructions for wiring the frequency converter. The following tasks are described.
•
Wiring the motor to the frequency converter output terminals
•
Wiring the AC mains to the frequency converter input terminals
•
Connecting control and serial communication wiring
•
After power has been applied, checking input and motor power; programming control terminals for their intended
functions
Illustration 2.4 shows a basic electrical connection.

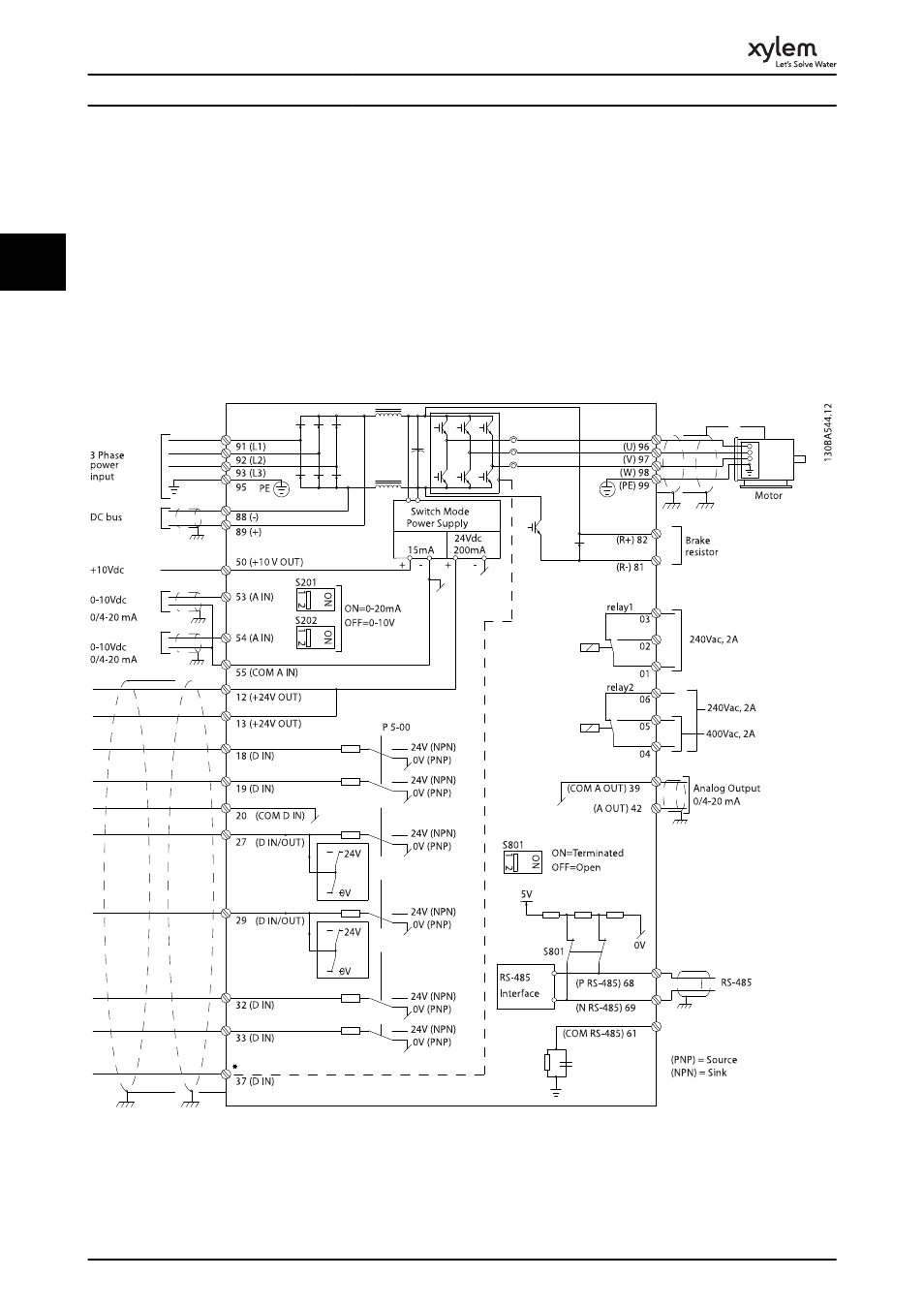

Illustration 2.4 Basic Wiring Schematic Drawing
* Terminal 37 is an option
Installation
10
2
2
