Caution – Bell & Gossett P2001487 Technologic Pump Controller User Manual
Page 50
Parameters
Function
Setting
8-30 Protocol
FC*
8-31 Address
1*
8-32 Baud Rate
9600*
* = Default Value
Notes/comments:
Select protocol, address and
baud rate in the above
mentioned parameters.

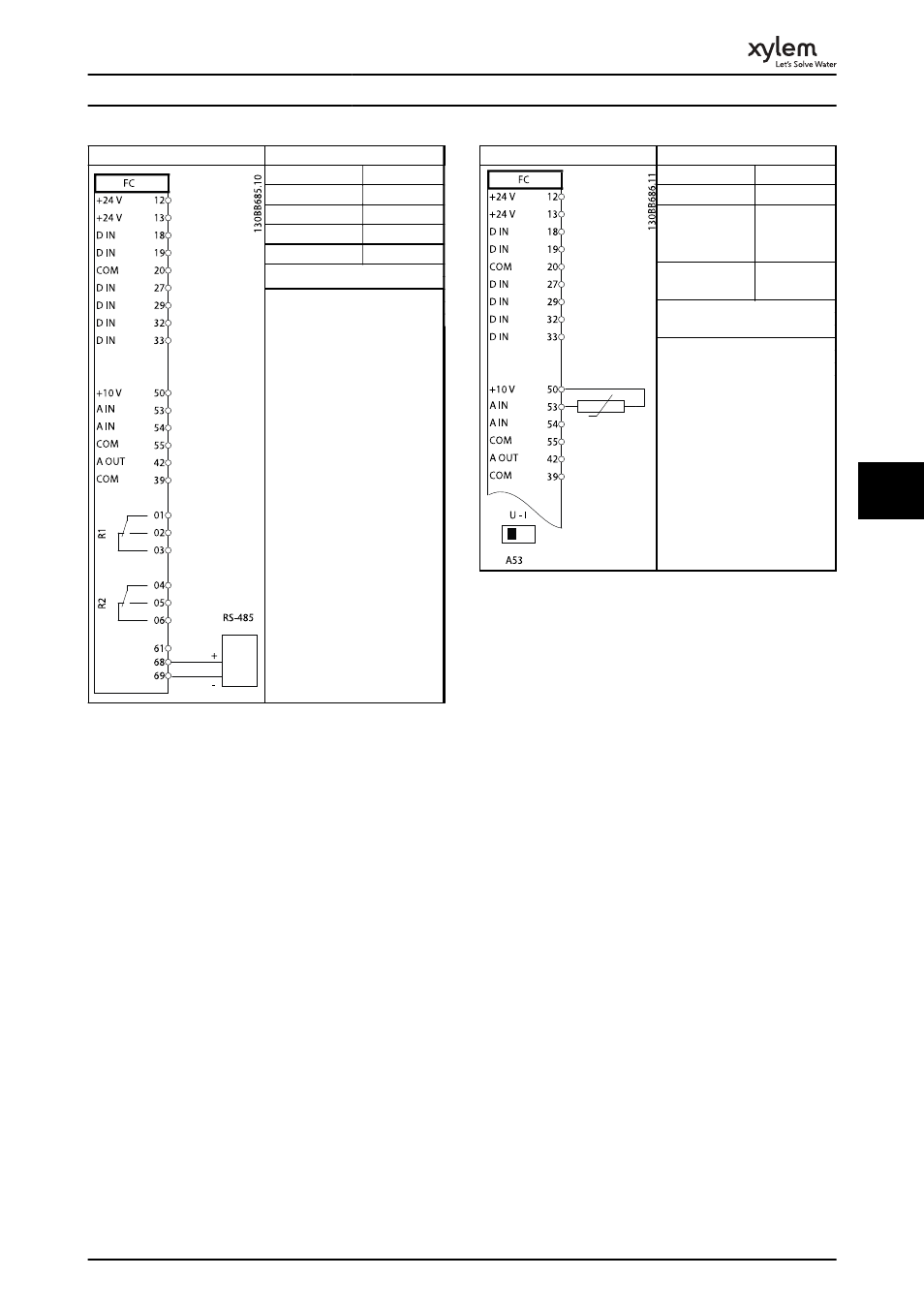

Table 6.10 RS-485 Network Connection
CAUTION
Thermistors must use reinforced or double insulation
to meet PELV insulation requirements.
Parameters
Function
Setting
1-90 Motor
Thermal
Protection
[2]
Thermistor
trip
1-93 Thermistor
Source
[1] Analog
input 53
* = Default Value
Notes/comments:
If only a warning is desired,
1-90 Motor Thermal Protection
should be set to [1] Thermistor
warning.
Table 6.11 Motor Thermistor
Application Set-Up Examples
47
6
6
