Sampling Chambers
Ocean Optics offers a comprehensive line of compact, low-cost sampling chambers for a variety of UV-VIS-
Shortwave NIR applications. All sampling chambers have SMA terminations for easy coupling to optical fibers.
Options include a variety of cuvette holders for 1-cm and 10-cm cuvettes, in-line filter holders, flow cells, and
other sampling devices.
" CUV-UV and CUV-VIS C UVETTE H OLDERS , are our standard
cuvette holders for 1-cm cuvettes. The CUV-UV-10 and CUV-
VIS-10 C
UVETTE H OLDERS are cuvette holders for 10-cm paths.
They all come with a pair of 5-mm diameter f/2 collimating lenses
and filter slots.
" The CUV-ALL 4- WAY
C UVETTE H OLDER is a
cuvette holder for 1-cm cuvettes that has fiber optic couplings at four
collimators -- a pair of collimating lenses optimized for the UV-VIS
and a pair optimized for the VIS-NIR. Also available is the CUV-FL-
DA D
IRECT A TTACH C UVETTE H OLDER , a 1-cm cuvette holder that
attaches directly to light sources. When combined with our
spectrometers and light sources, the CUV-ALL and CUV-FL-DA can
measure absorbance, fluorescence, scattering, or any combination of
these optical phenomena.
" ISS, ISS-2, and ISS-UV-VIS I NTEGRATED S AMPLING S YSTEMS consist
of compact light sources with integrated cuvette holders for 1-cm
cuvettes. These versatile sampling devices couple to our spectrometers
via optical fibers to create integrated, small-footprint sampling systems.
The ISS-2 (pictured) is designed specially for use with the S2000.
" FHS-UV and FHS-VIS I N -L INE
F ILTER H OLDERS provide a
convenient platform for rapid
absorbance or transmission
measurements of optical and other filters. These filter holders come
with a pair of 5-mm diameter f/2 collimating lenses to maximize light
throughput, and a manual light-block wheel for taking dark readings.
The filter holders accept 1" round or any size square optical filters, up
to 6 mm in thickness.
" LPC L ONG P ASS F LOW C ELLS couple to our fiber optic spectrometers and
compact light sources to measure low-concentration (ppb-ppt) aqueous
samples. LPC Flow Cells are available in 1-meter, 5-meter and 10-meter
path lengths for absorbance measurements, and in a 1-meter path length
with built-in 365-nm excitation source for fluorescence measurements.
" The CUV-CCE E LECTROPHORESIS S AMPLE C ELL for chromatography
and capillary electrophoresis is an optical fixture for measuring the
absorbance of fluids in chromatography or capillary electrophoresis
systems. The cell is attached on-line, i.e., the light is projected through
the sides of fused silica tubing without violating the tube integrity.
- 54 -

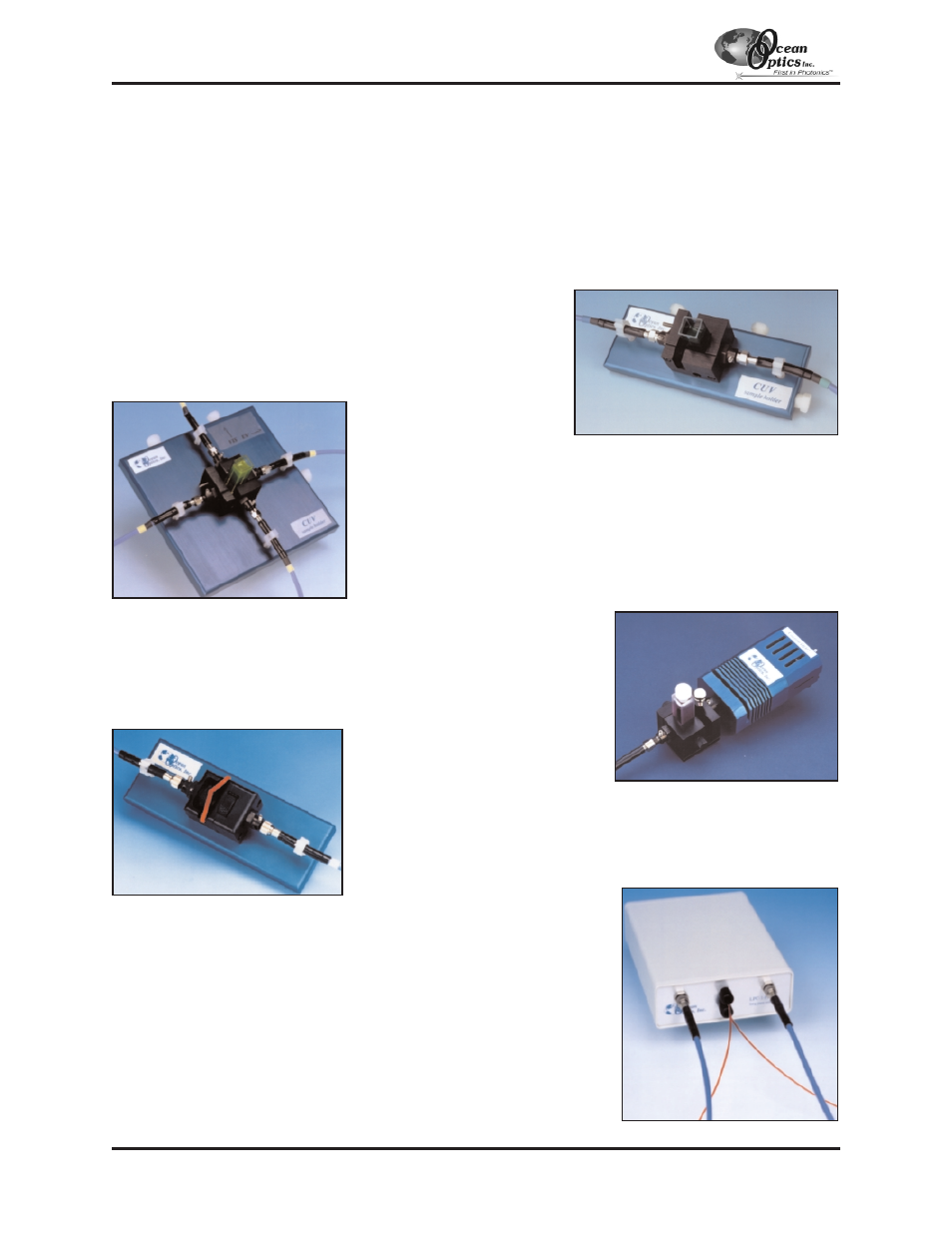

CUV-UV
ISS-2
FHS-UV
CUV-ALL
LPC
