Area Description
3. Transport
Functions
Area This area provides buttons to control all the required transport
functions. It displays information for the current position in the list
with reference to the next element and next break.
See section "Transport Functions Area" on page 14.
4. Playlist
Grid This area displays all the playlist elements in columns.
See section "Playlist Grid" on page 16.
5. Status
Bar This area displays information regarding lock on air position, Auxiliary
Clip, End Cue, As run log and Post-Roll.
See section "Status Bar" on page 22.
2.1.2. Background Color of Window Outline
The background color of the window title bar and the window frame border will differ

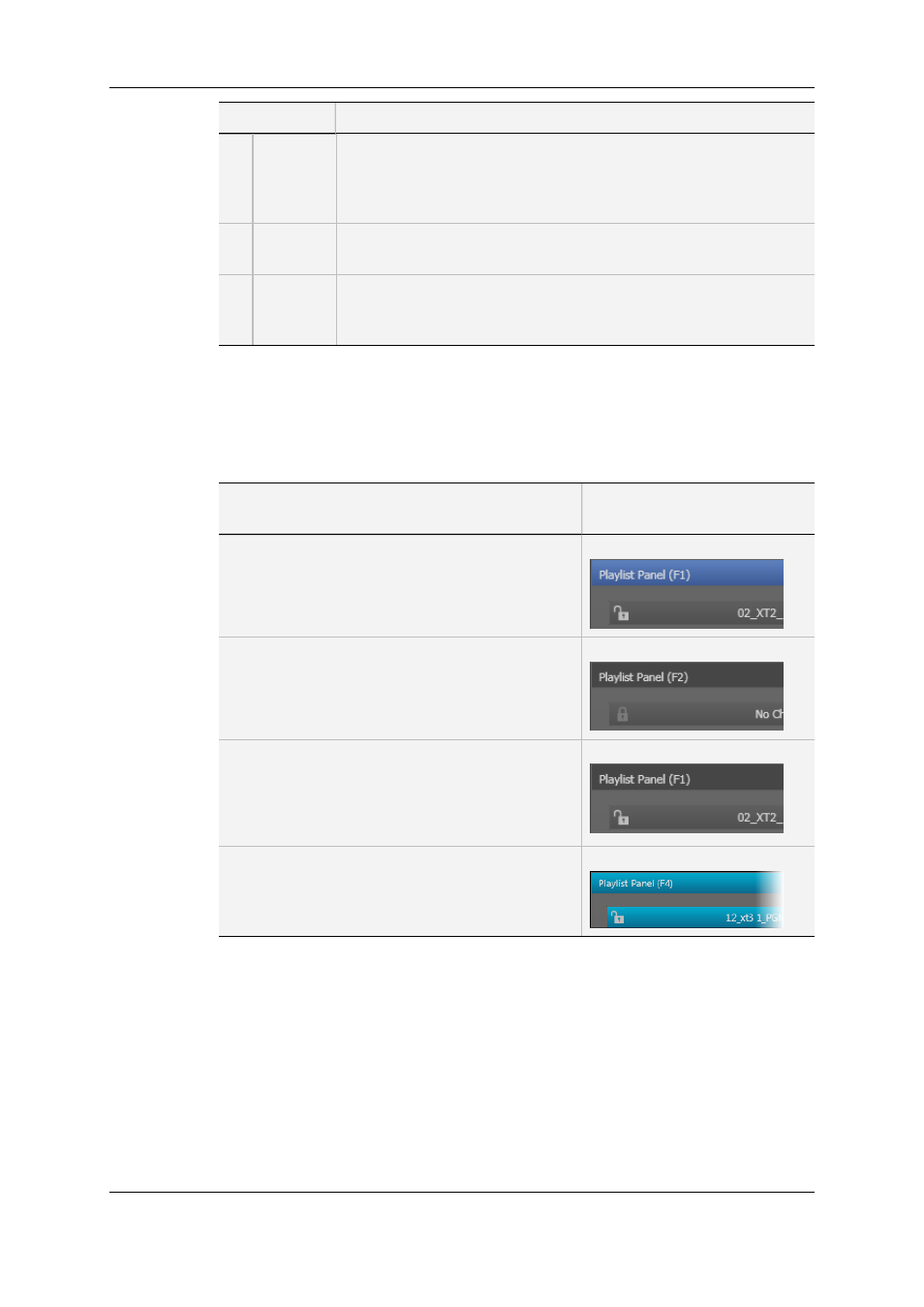

depending on several parameters, as summarized in the table below:
Channel Mode
Title bar / window frame
color
Focus ON the window (=Window active) Blue
Focus OFF the window (=Window not active) and
• no channel associated to the Playlist Panel
Black
Focus OFF and
• channel associated to the Playlist Panel and
• channel not ganged or channel ganged to
another one, and
• no playlist element loaded on a Control Panel
Black
Focus OFF and
• playlist element loaded on a Control Panel for
editing purposes
(regardless of ganged or not)
Turquoise
2.1.3. Channel Mode Display
The window title bar gives information such as the association type or the channel mode
in which the controlled player channel is involved or the "Mix on one channel"
functionality.
