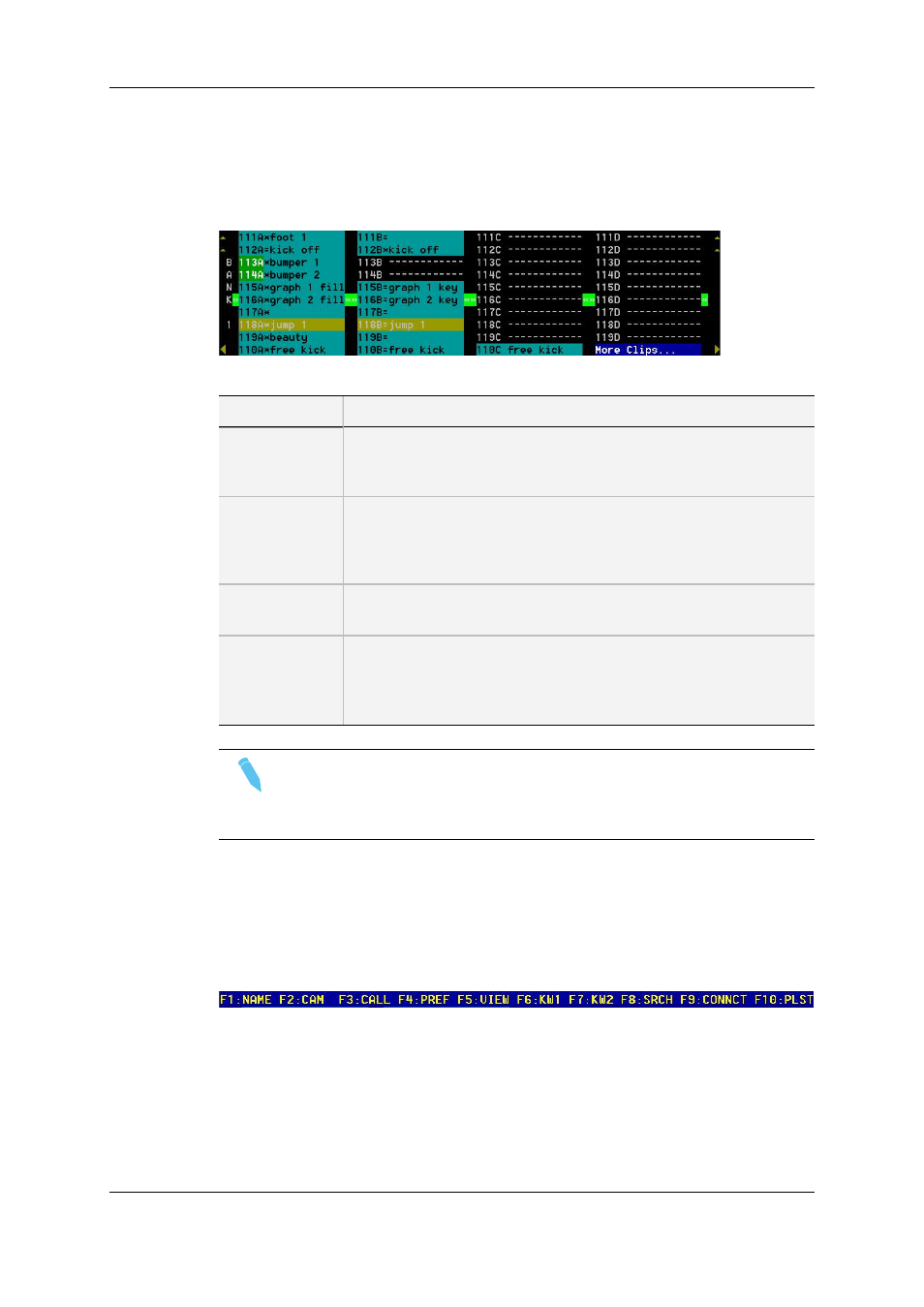

Clip Information Area
The next area is the Clip Information Area which displays the clips of the selected page
and bank(s). Two clip banks are displayed at a time.
For each clip and camera angle, the following information is available:
Field Description
Clip ID Unique identifier of the clip on the server. Ex: 111A
The clip ID is followed by the “Creating” message when the clip is in
the process of being created, copied or moved to this location.
Clip “rank” Clip rank depending on the channel on which it has been created :
• Primary (“*” next to the clip ID)
• Secondary (“=” next to the clip ID)
The clip rank information is highlighted in blue if the clip is protected.
Clip name Name of the clip, either automatically assigned or defined by the
user.
Archive Status • If the clip ID is blinking green, the clip is flagged for archiving, but
not yet archived
• If the clip ID is permanently highlighted in green, the archiving of
the clip has been completed
Note
In the standard view (cameras A to D), if camera E and/or F exist for a particular
clip, the D-column for this clip is replaced by the mention “More Clips” on blue
background.
4.3.2. VGA Functions - Clip Screen
Function Bar
The second line of the Clip screen displays the available functions. Each function can be
called by the corresponding F_ key of the keyboard, or by clicking with stylus & tablet on
the corresponding area on this line.
