Issue 5.8.B IPDirector Version 5.8 – User Manual – Part 6: Playout – Playlist Panel
EVS Broadcast Equipment – July 2010
126
H
OW TO
A
DD A
P
REDEFINED
C
ONFIGURATION
To add a configuration, proceed as follows:
1. Select Add.

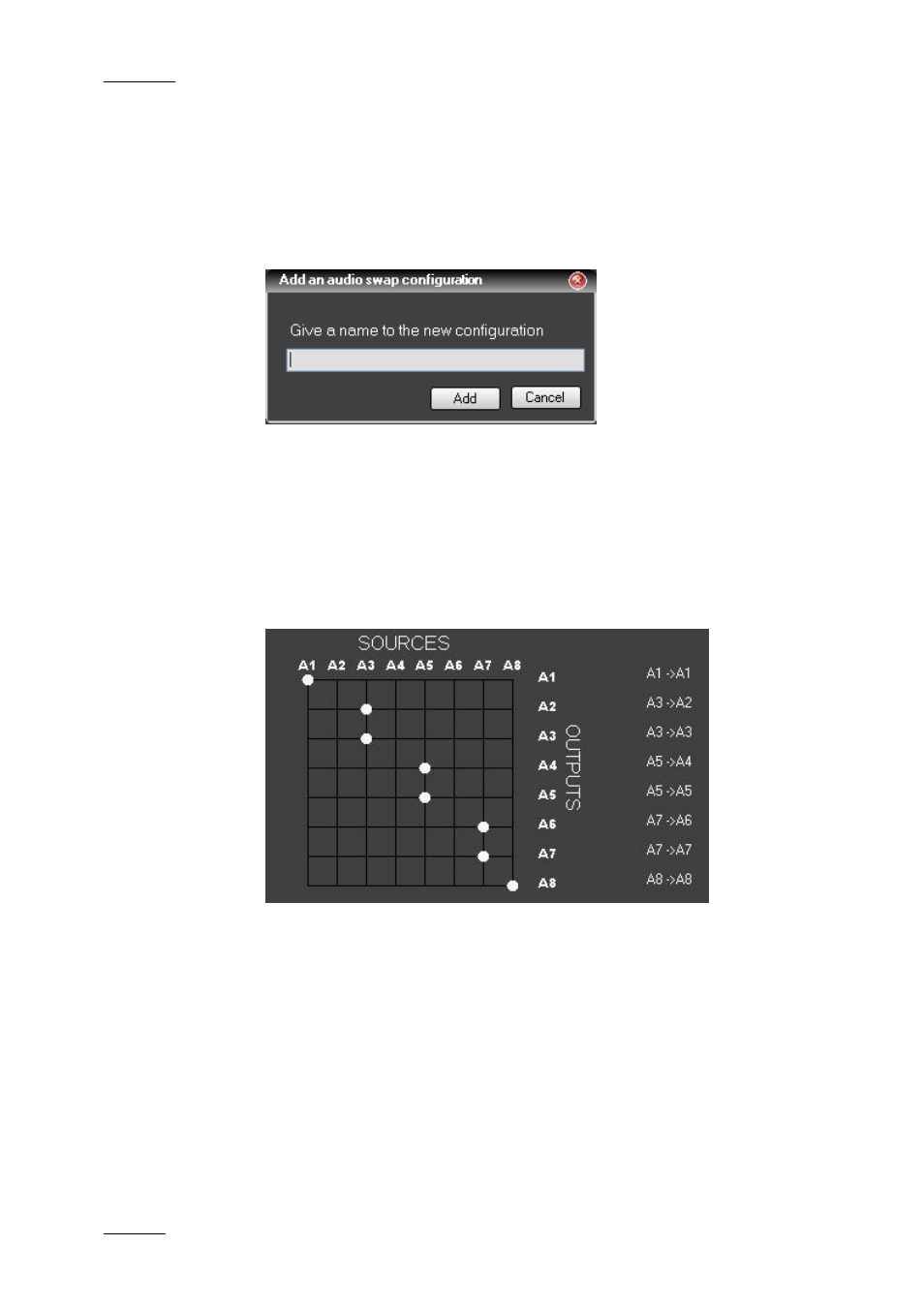

The Add an Audio Swap Configuration dialog box opens:
2. Type a name for the new configuration in the dialog box and then press
the Add button.
3. Enter the duration in the Swap Mix Duration field.
4. Click on an intersection on the grid to define the output track each input
would be played from.
The dot then moves to the new position and the reference field, next to
the grid, shows the tracks involved in the transition:
