Prestige 334W User’s Guide
Wireless Configuration and Roaming 7-3

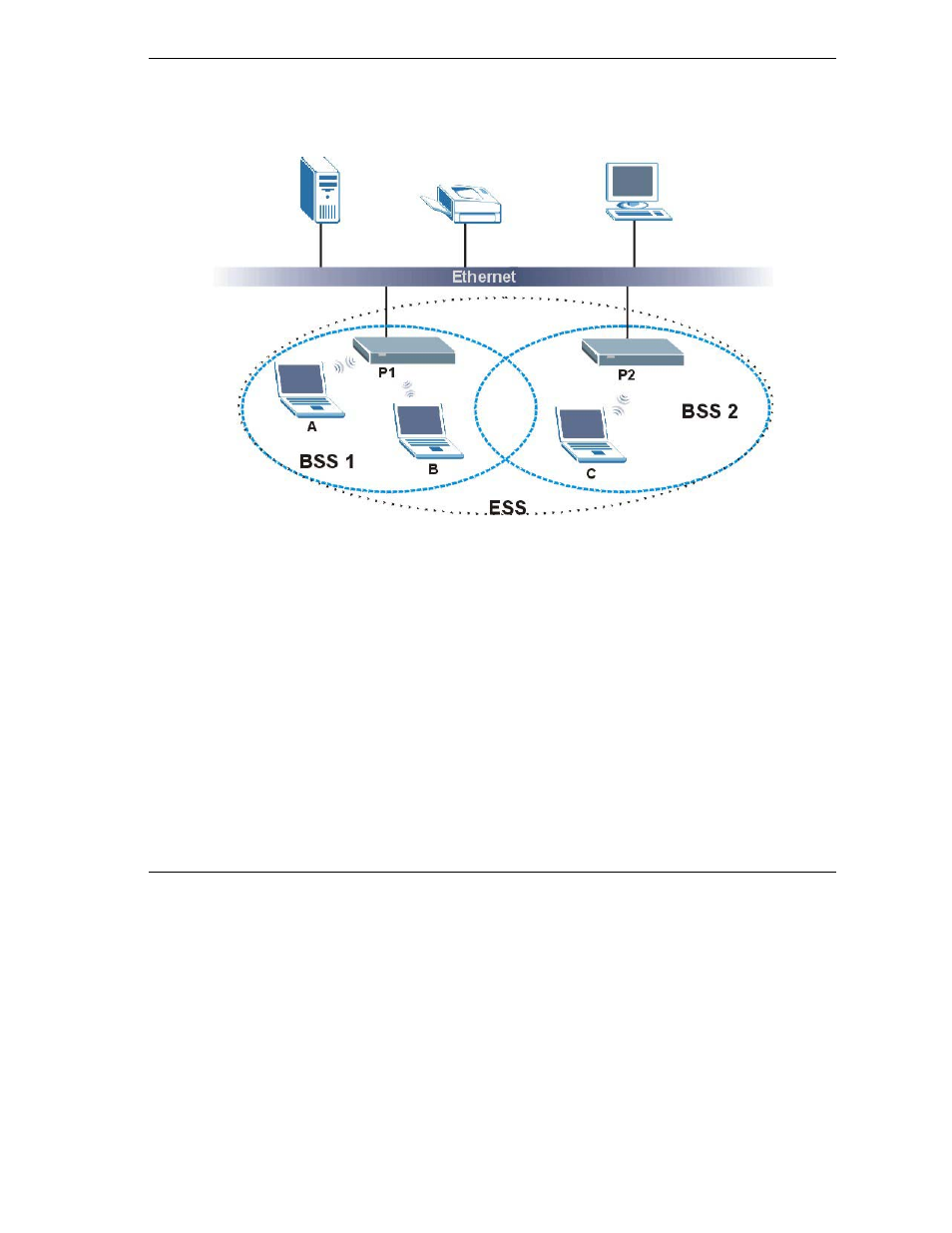

Figure 7-3 Extended Service Set
7.2 Wireless LAN Basics
Refer also to the Wizard Setup chapter for more background information on Wireless LAN features, such as
channels.
7.2.1 RTS/CTS
A hidden node occurs when two stations are within range of the same access point, but are not within range
of each other. The following figure illustrates a hidden node. Both stations (STA) are within range of the
access point (AP) or wireless gateway, but out-of-range of each other, so they cannot “hear” each other, that
is they do not know if the channel is currently being used. Therefore, they are considered hidden from each
other.
