Prestige 334W User’s Guide
NAT 28-13

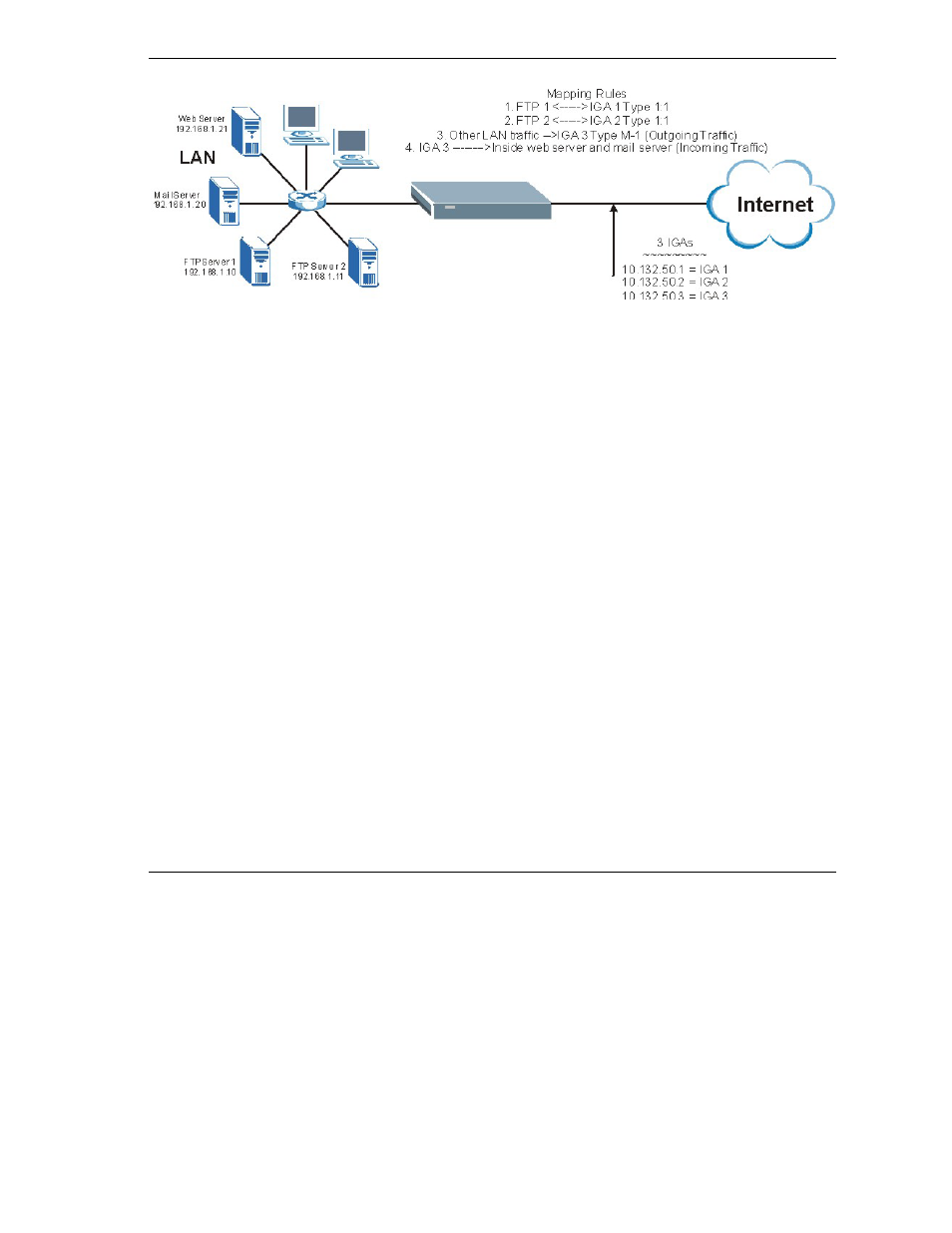

Figure 28-14 NAT Example 3
Step 1. In this case you need to configure Address Mapping Set 1 from Menu 15.1 - Address Mapping
Sets. Therefore you must choose the Full Feature option from the Network Address
Translation field (in menu 4 or menu 11.3) in Figure 28-15.
Step 2. Then enter 15 from the main menu.
Step 3. Enter 1 to configure the Address Mapping Sets.
Step 4. Enter 1 to begin configuring this new set. Enter a Set Name, choose the Edit Action and then
enter 1 for the Select Rule field. Press [ENTER] to confirm.
Step 5. Select Type as One-to-One (direct mapping for packets going both ways), and enter the local
Start IP as 192.168.1.10 (the IP address of FTP Server 1), the global Start IP as 10.132.50.1 (our
first IGA). (See Figure 28-16).
Step 6. Repeat the previous step for rules 2 to 4 as outlined above.
Step 7. When finished, menu 15.1.1.1 should look like as shown in Figure 28-17.
