Prestige 334W User’s Guide
18-2 Media Bandwidth Management

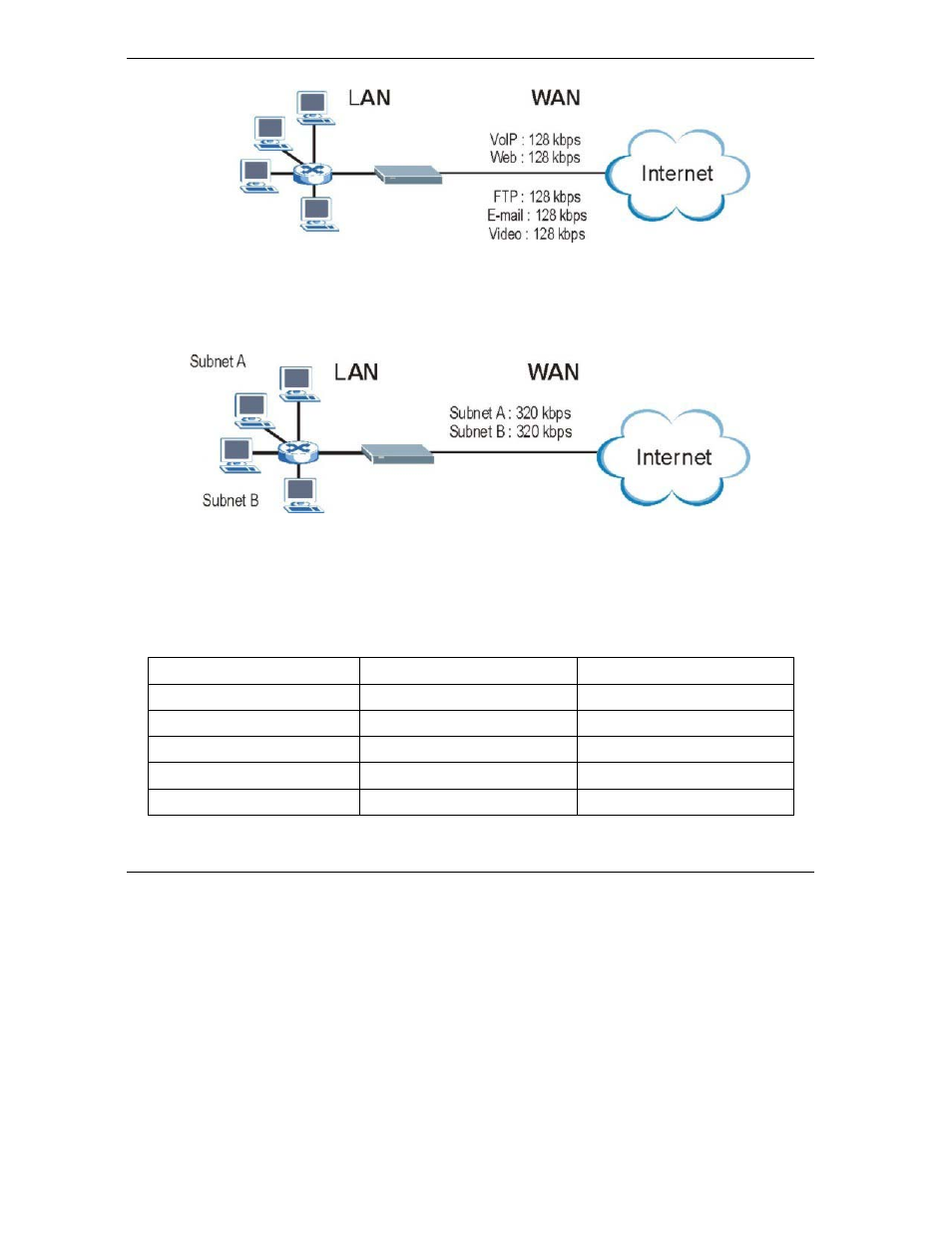

Figure 18-1 Application-based Bandwidth Management Example
18.1.2 Subnet-based Bandwidth Management Example
The following example uses bandwidth rules based solely on LAN subnets. Each bandwidth rule (Subnet A
and Subnet B) is allotted 320 Kbps.
Figure 18-2 Subnet-based Bandwidth Management Example
18.1.3 Application and Subnet-based Bandwidth Management Example
The following example uses bandwidth rules based on LAN subnets and applications (specific applications in
each subnet are allotted bandwidth).
Table 18-1 Application and Subnet-based Bandwidth Management Example
TRAFFIC TYPE FROM SUBNET A FROM SUBNET B
VoIP 64 Kbps 64 Kbps
Web 64 Kbps 64 Kbps
FTP 64 Kbps 64 Kbps
E-mail 64 Kbps 64 Kbps
Video 64 Kbps 64 Kbps
