Prestige 334W User’s Guide
Media Bandwidth Management
18-3

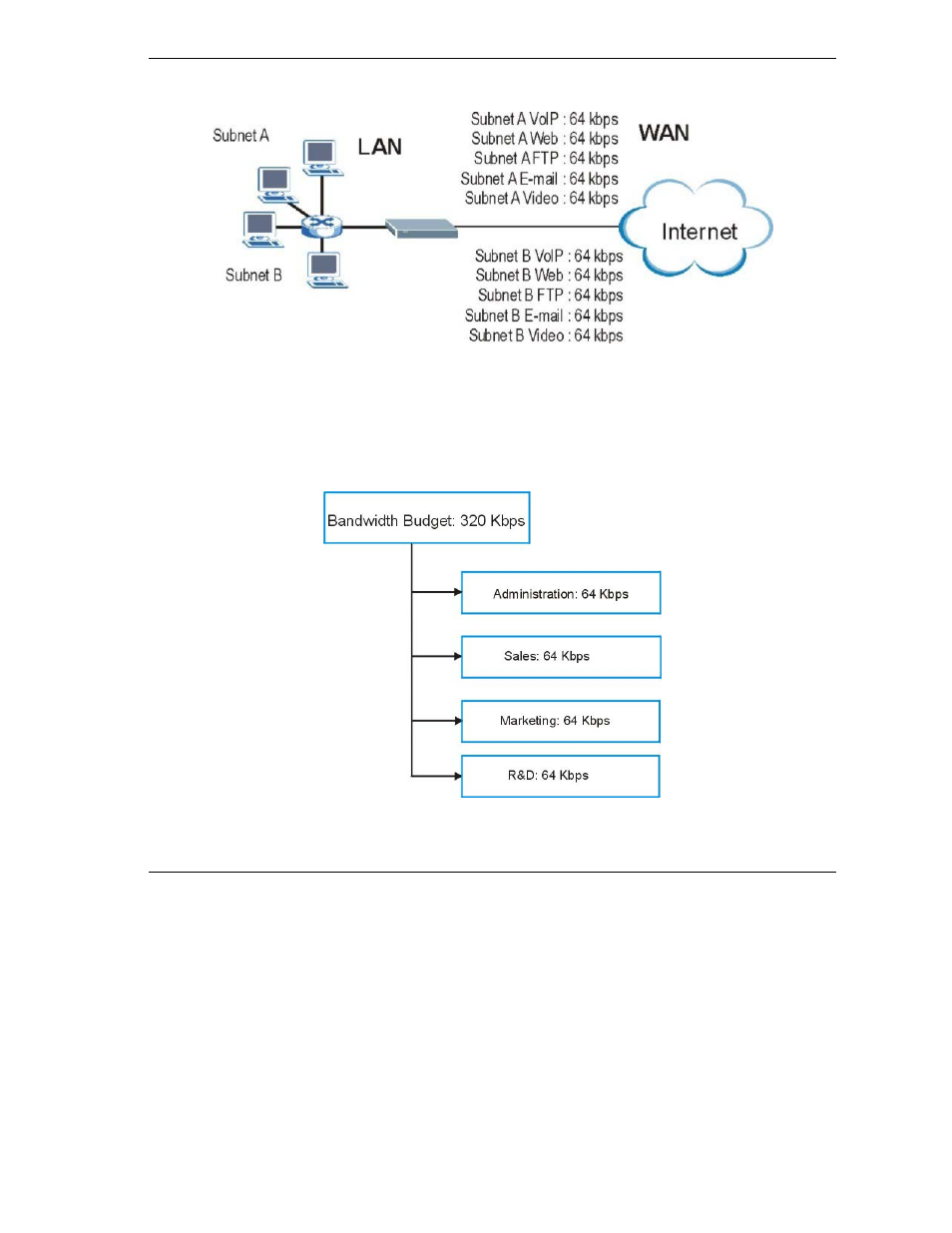

Figure 18-3 Application and Subnet-based Bandwidth Management Example
18.1.4 Bandwidth Usage Example
Here is an example of a Prestige that has bandwidth usage enabled on an interface. The first figure shows
each bandwidth rule’s bandwidth budget. The rules are set up based on subnets. The interface is set to 320
Kbps. Each subnet is allocated 64 Kbps. The unbudgeted 64 Kbps allows traffic not defined to go out when
you do not select the Use All Managed Bandwidth option.
Figure 18-4 Bandwidth Usage Example
