National Instruments BridgeVIEW User Manual
Page 43

Chapter 2
BridgeVIEW Environment
© National Instruments Corporation
2-9
2.
Run the VI by clicking on the Run button in the toolbar. The button
changes appearance to indicate that the VI is running.
3.
Use the Operating tool to change the values of the Inflow Rates and
other controls. First, highlight the old value, either by double-clicking
on the value you want to change, or by clicking and dragging across
the value with the Labeling tool. When the initial value is highlighted,
type a new value and press
button in the toolbar, or click the mouse in an open area of the window
to enter the new value.
4.
Stop the VI by clicking on the Stop button.
5.
Open the block diagram of the Tank Simulator VI by choosing
Windows»Show Diagram.

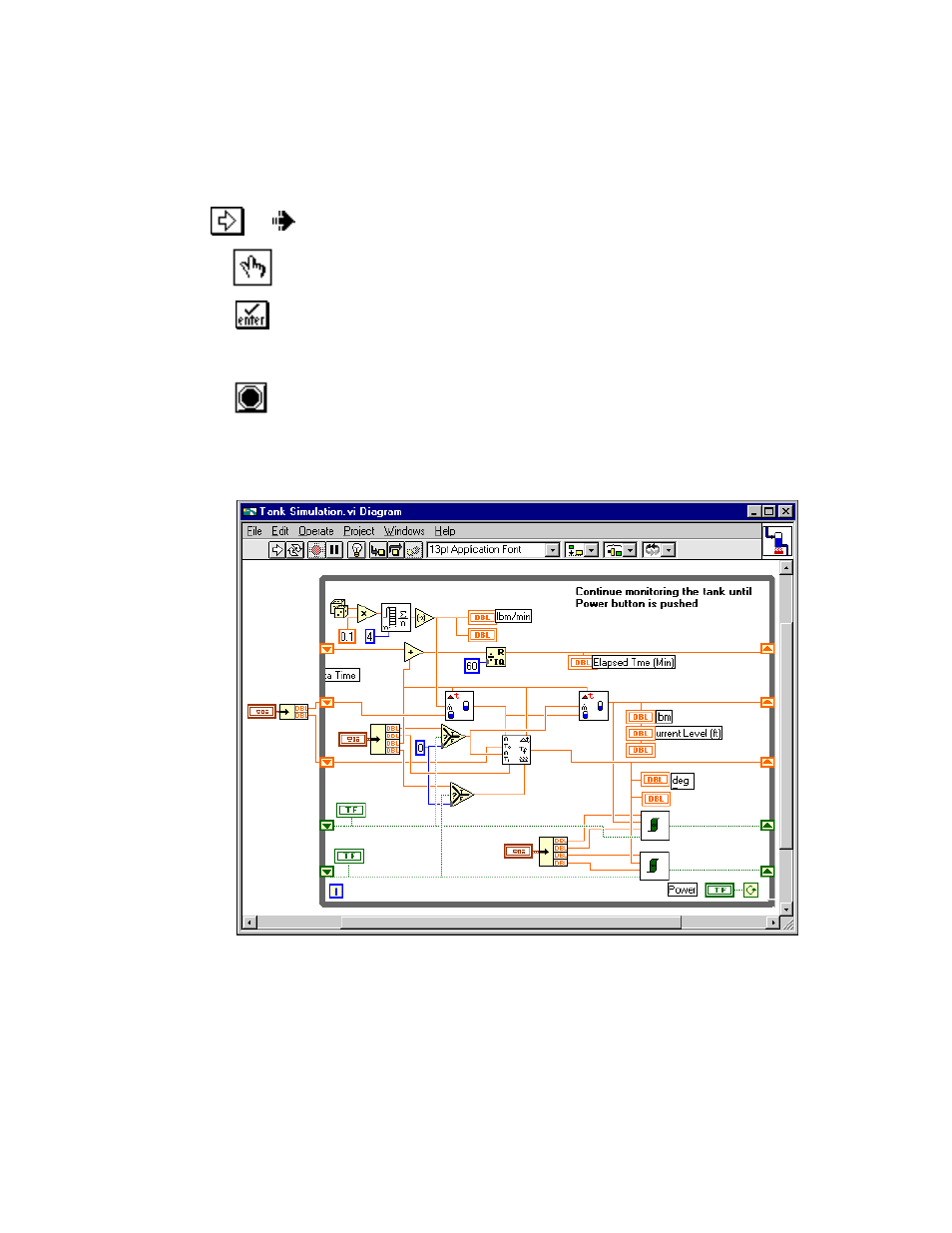

The following illustration shows the block diagram.
6.
Examine the different objects in the block diagram.
Every front panel in BridgeVIEW has an accompanying block
diagram, which is the VI equivalent of a program. Think of the block
