Block diagram – National Instruments BridgeVIEW User Manual
Page 234
Chapter 10
Customizing VIs
© National Instruments Corporation
10-3
Block Diagram
2.

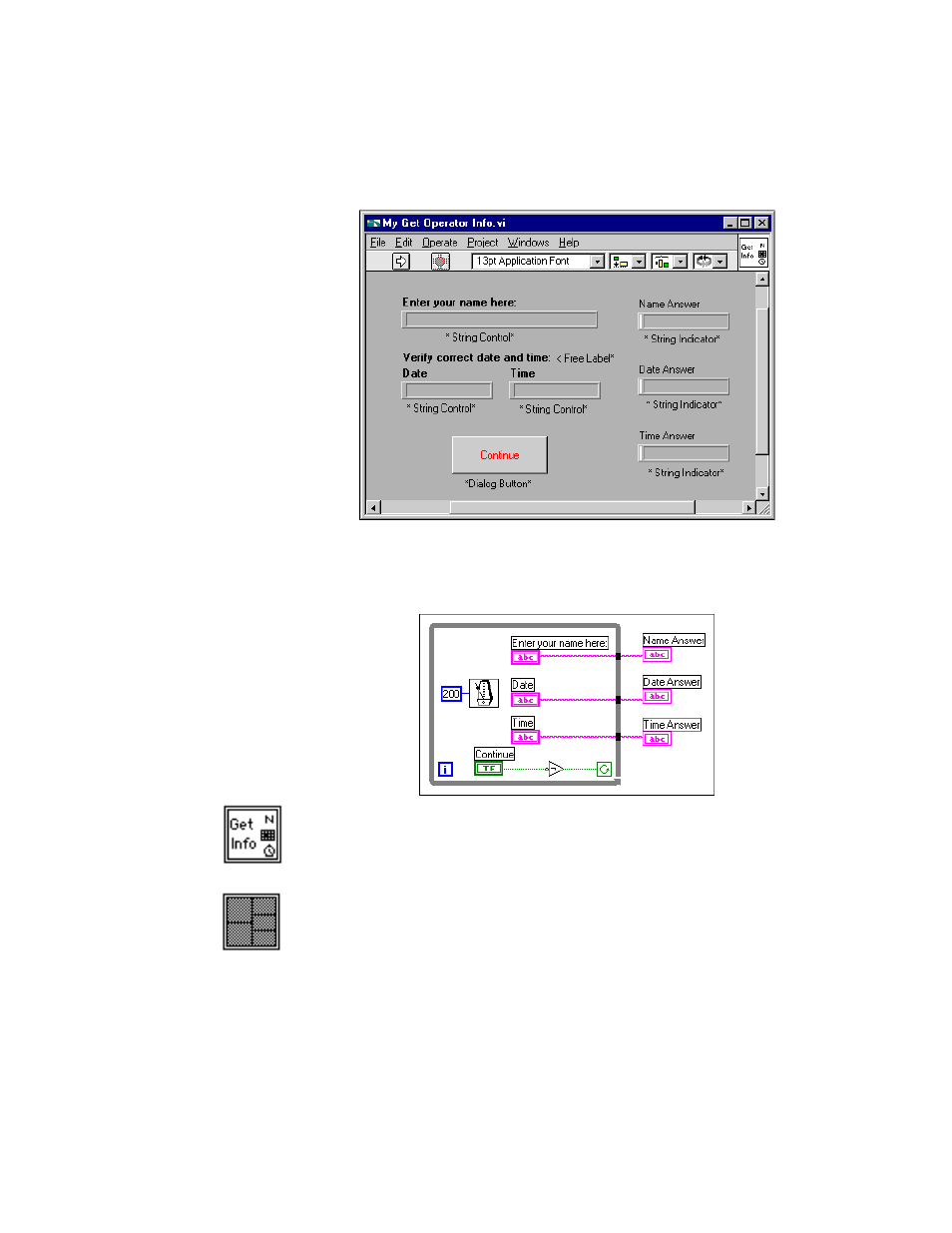

Build the block diagram shown in the following illustration.
3.
Create the icon for the VI as shown at left. To access the Icon Editor,
pop up on the icon pane of the front panel and select Edit Icon.
4.
Switch to the connector pane by popping up on the icon pane and
selecting Show Connector.
5.
Build the connector. Notice that the default connector pane is not what
you see illustrated to the left. To get the correct connector pane, choose
Patterns from the pop-up menu on the connector. Choose the pattern
with three inputs and two outputs. Then choose Flip Horizontal. Now
you can connect the
Date
and
Time
controls to the two connectors on
the left side of the icon, and the
Name Answer
,
Date Answer
, and
Time Answer
indicators to the three connectors on the right side of
