Chapter 10 Customizing VIs
© National Instruments Corporation 10-7 BridgeVIEW User Manual
Block Diagram

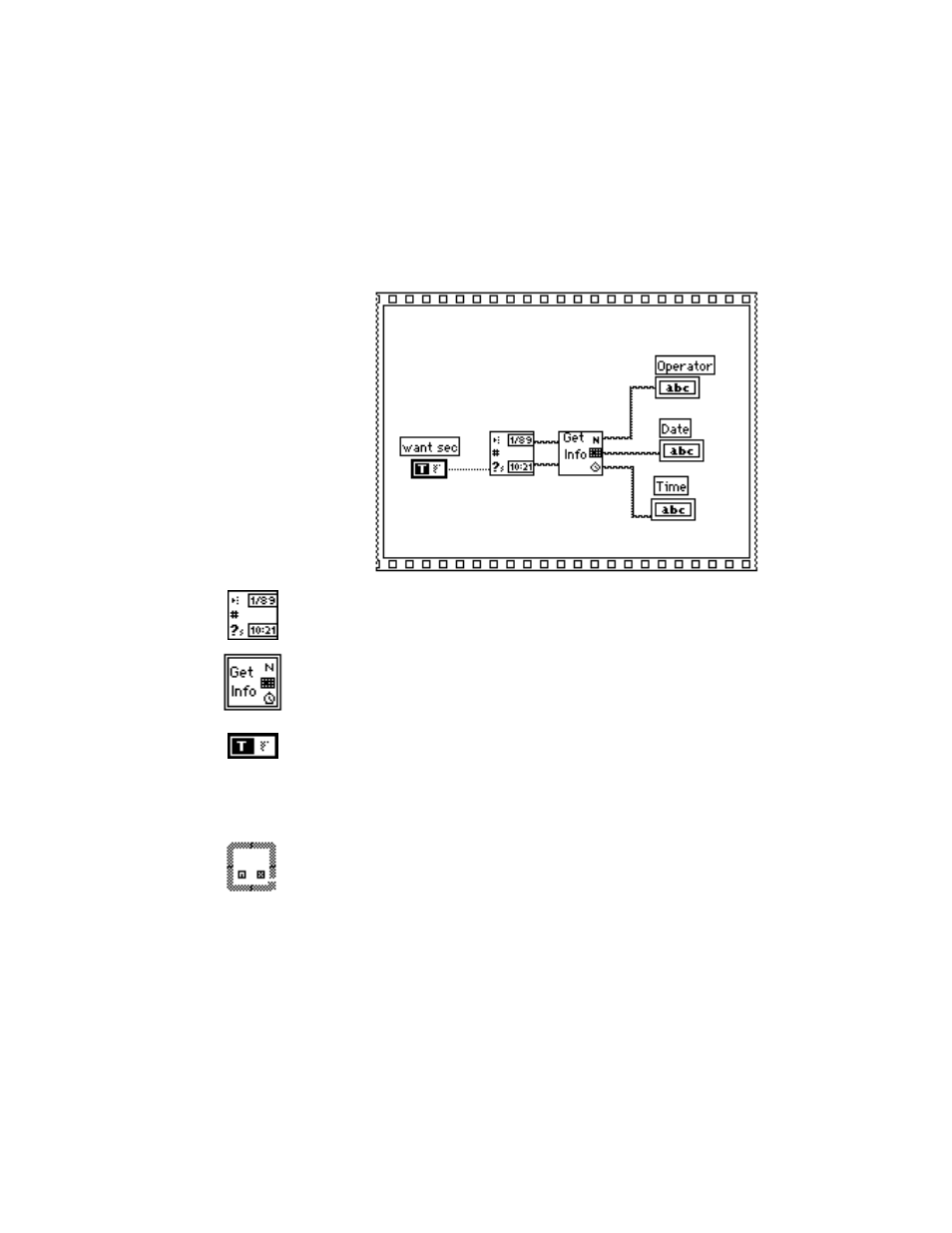

14. Create a Sequence structure and add the following to frame 0, as shown
in the following illustration.
Get Date/Time String function (Functions»Time &
Dialog)—Outputs the current date and time.
Get Operator Info VI (Functions»Select a VI… from the
BridgeVIEW\Activity directory)—Pops open its front panel and
prompts the user to enter a name, the date, and the time.
Boolean constant (Functions»Boolean)—Controls whether the input
date and time string are TRUE. To set this option to TRUE, click on the
constant with the Operating tool.
15. Pop up on the Sequence structure and select Add Frame After from
the pop-up menu.
16. Place a While Loop inside frame 1 of the Sequence structure.
