National Instruments BridgeVIEW User Manual
Page 172
Chapter 7
Advanced Application Topics
7-4
© National Instruments Corporation
2.
Save the VI as
My Menu Bar.vi
in the
BridgeVIEW\Activity
directory.
3.

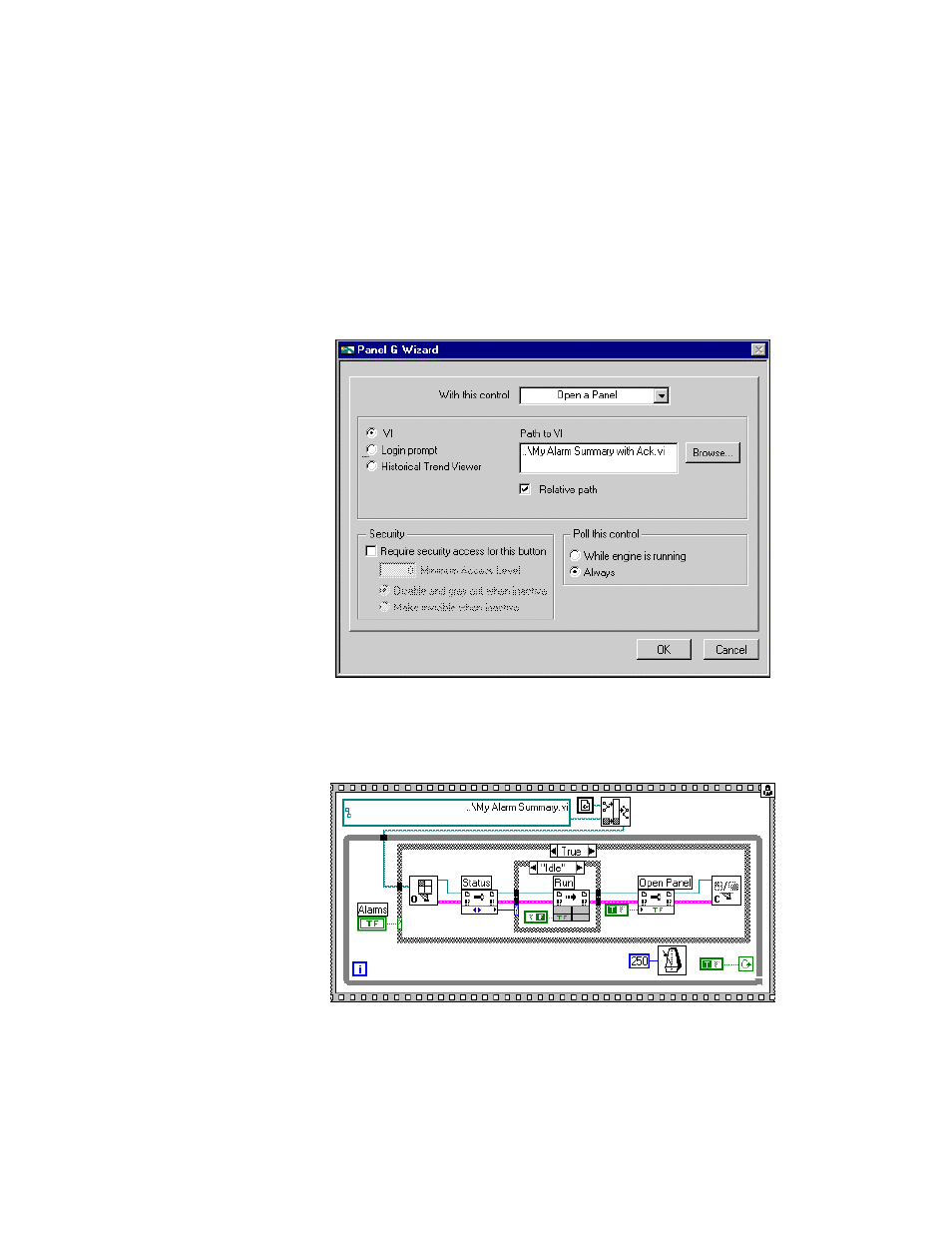

Pop up on the Alarms button and select Panel G Wizard….
Configure the button to open the
My Alarm Summary with Ack.vi
that you created in Activity 5-2,
Acknowledge Alarms in the Alarm
, as shown below.
4.
Examine the block diagram created by the Panel G Wizard. The
diagram code is locked as indicated by the lock icon in the upper right
corner of the window. The locking mechanism works the same way as
it does for the HMI G Wizard.
