Chapter 2 BridgeVIEW Environment
BridgeVIEW User Manual 2-8 © National Instruments Corporation
Tag
You use tag controls and indicators for entering and displaying tag names
or group names contained in the loaded tag configuration (
.scf ) file.
You can find tag controls and indicators in Controls»String Table Tags.
For more information about the tag data type, see the section
Tag Data
Type , in Chapter 4, Human Machine Interface .
Activity 2-1. Open and Run a VI
Your objective is to familiarize yourself with the basic concepts of virtual
instruments. You will open, examine, and operate the front panel and
block diagram of a VI.
1. Select File»Open, and open Tank Simulation.vi from the
BridgeVIEW\Examples\G Examples\Apps\tankmntr.llb .

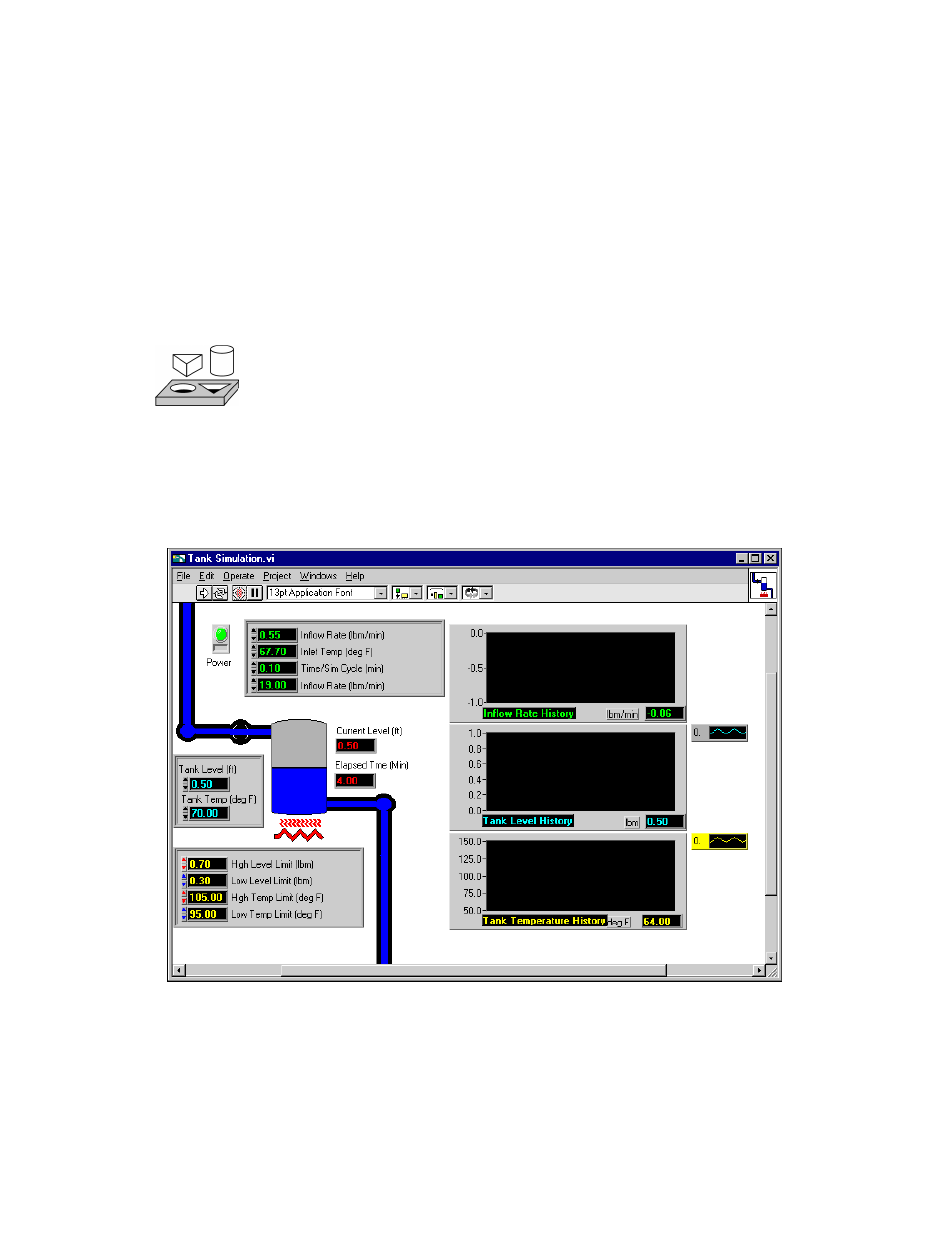

The front panel appears as shown in the following illustration.
