Front panel – National Instruments BridgeVIEW User Manual
Page 237

Chapter 10
Customizing VIs
10-6
© National Instruments Corporation
Front Panel
10. Open a new front panel.
11. Place a Waveform Chart (Controls»Graph) on the front panel and
label it
Temperature Data
.
12. Modify the scale of the chart, so that its upper limit is set to 90.0 and
its lower limit is set to 70.0. Pop up on the chart and choose
Show»Legend to hide the legend. Pop up on the chart again and
choose Show»Palette to hide the palette.

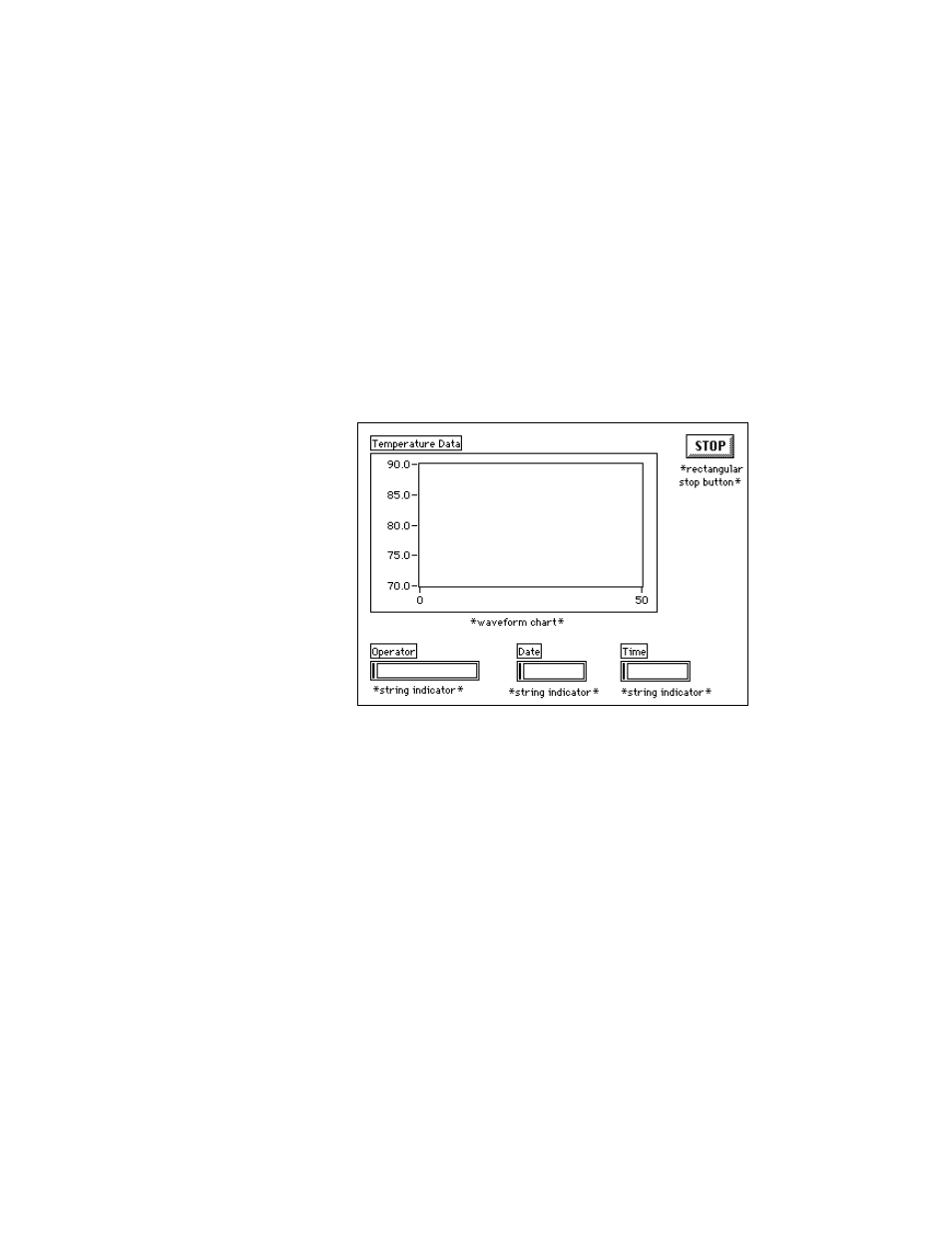

13. Build the rest of the front panel as shown in the following illustration.
