Chapter 14 Arrays, Clusters, and Graphs
BridgeVIEW User Manual 14-14 © National Instruments Corporation
Notice that the index terminal symbol changes from a solid to an empty
box when you disable indexing. To restore a disabled index, use the
Enable Indexing command from the same menu.
You can extract subarrays along any combination of dimensions.

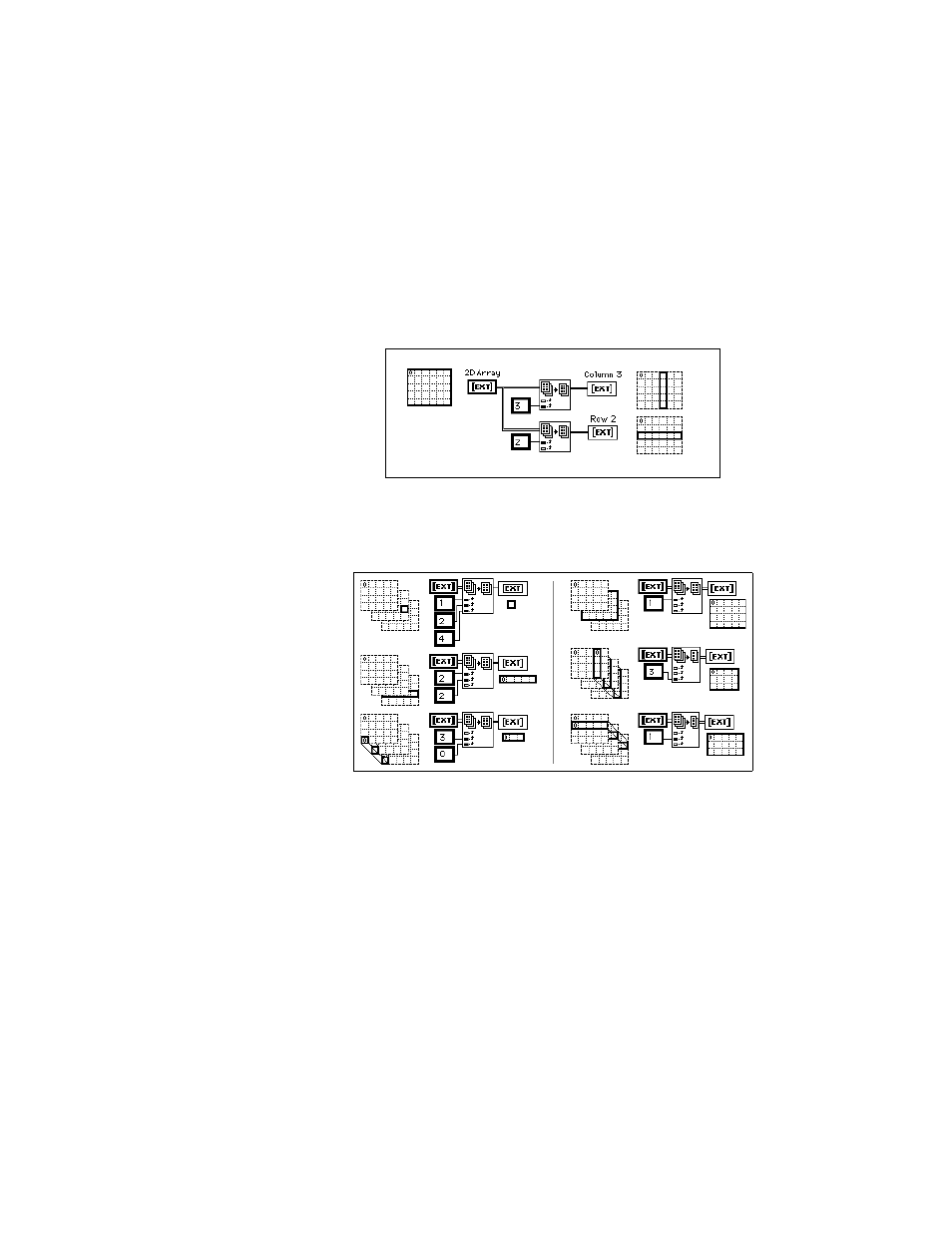

The following illustration shows how to extract a 1D row or column arrays
from a 2D array.
From a 3D array, you can extract a 2D array by disabling two index
terminals, or a 1D array by disabling a single index terminal. The following
figure shows several ways to slice a 3D array.
The following rules govern the use of the Index Array function to slice
arrays:
• The dimension of the output object must equal the number of disabled
index terminals. For example:
– Zero disabled = scalar element
– One disabled = 1D component
– Two disabled = 2D component
• The values wired to enabled terminals must identify the output
elements.
Extract Column
Extract Row
