National Instruments BridgeVIEW User Manual
Page 100

Chapter 3
Tag Configuration
3-42
© National Instruments Corporation
9.
Save the configuration by selecting File»Save. The modified
.scf
file is provided for you in the
BridgeVIEW\Activity\Solutions
directory.
10. View the tag configuration using the Tag Browser. From a VI front
panel, choose Project»Tag»Browser… and select different tag names

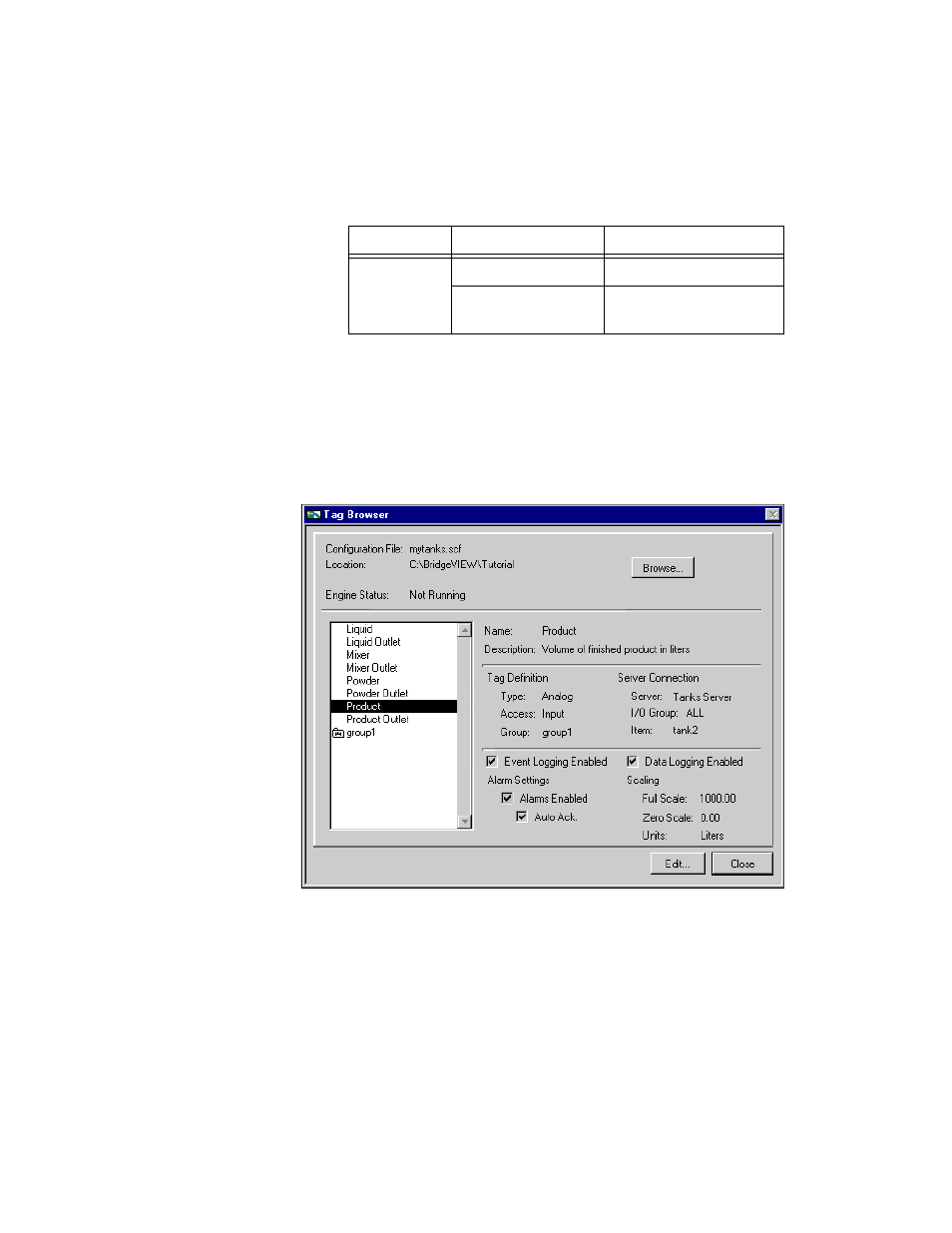

to see the configuration parameters. The Tag Browser is shown in the
following illustration.
11. Close the Tag Browser.
12. View the tag value and status of the Product tag with the Tag Monitor.
Select Project»Tag»Monitor…. Select Product and click on the
Add>> button. Then select OK. The Select Tags to Monitor dialog
box is shown in the following illustration.
Alarms
Enable Alarms
Enabled
Alarm Acknowledge
Mode
User must Ack
Table 3-11. Configuration Modifications for Activity 3-1 (Continued)
Category
Attribute
Setting
