National Instruments BridgeVIEW User Manual
Page 114

Chapter 4
Human Machine Interface
4-10
© National Instruments Corporation

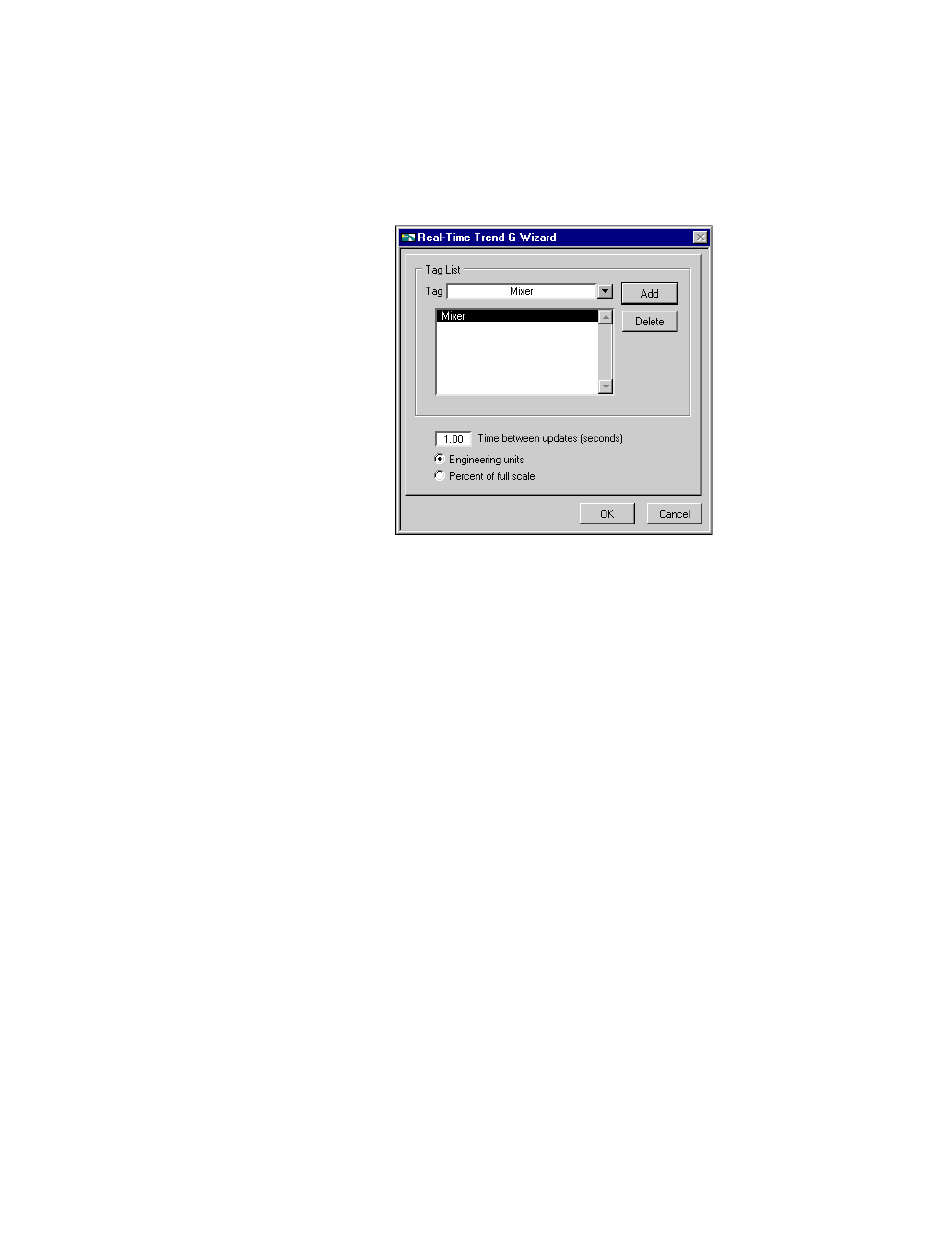

If you do not see a list of available tags or the tag name Mixer is not in
the list when you click on the Tag menu ring, pop up on the menu ring
and select Tag Browser… to select the correct
.scf
file. Press the
Browse… button on the Tag Browser to bring up a dialog box and
select
mytanks.scf
. This dialog box automatically appears if no
.scf
file is currently selected.
If the Engine is running already, the Browse… button is dimmed and
you cannot change the
.scf
file until you stop the Engine. The Tag
Browser shows you a summary of the configuration parameters of the
tags in the file.
When you have selected the proper
.scf
file from the Tag Browser,
click OK to return to the HMI G Wizard.
4.
Click OK. Notice that the HMI G Wizard has created the block
diagram for you, as shown in the following illustration.
