can change the default colors of alarms, acknowledged alarms and
unacknowledged tags that have returned to normal with the Color Codes for
Alarm Summary control, which also is available in the Alarms and Events
palette.
Activity 5-1. Build an Alarm Summary Display
Your objective is to use the HMI G Wizard to display alarm summary
information.
1.

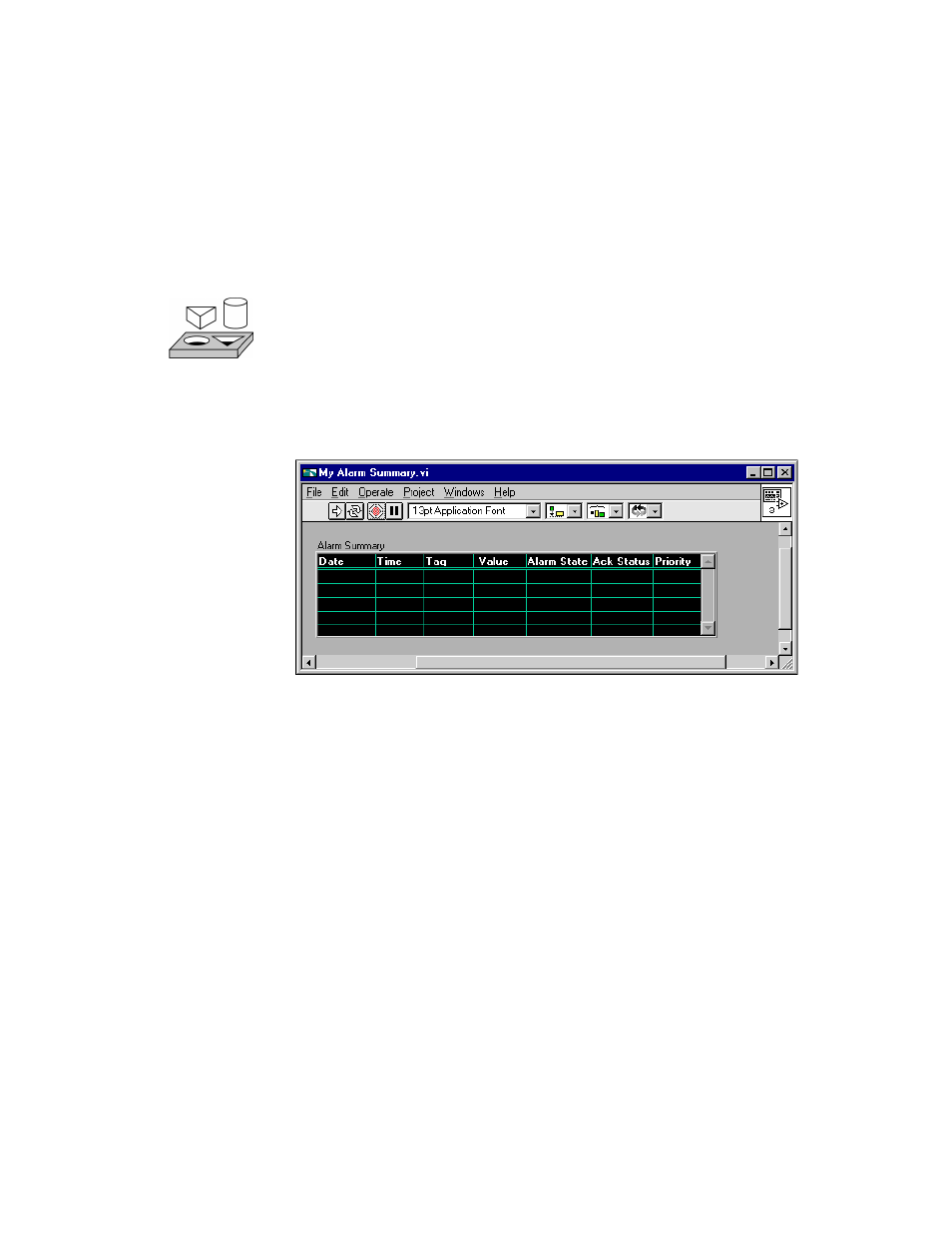

Place an Alarm Summary Display from the Controls»Alarms and
Events subpalette on a new front panel, as shown below.
2.
Pop up on the Alarm Summary Display, and select HMI G Wizard….
The following dialog box appears.
