2-8 General Description

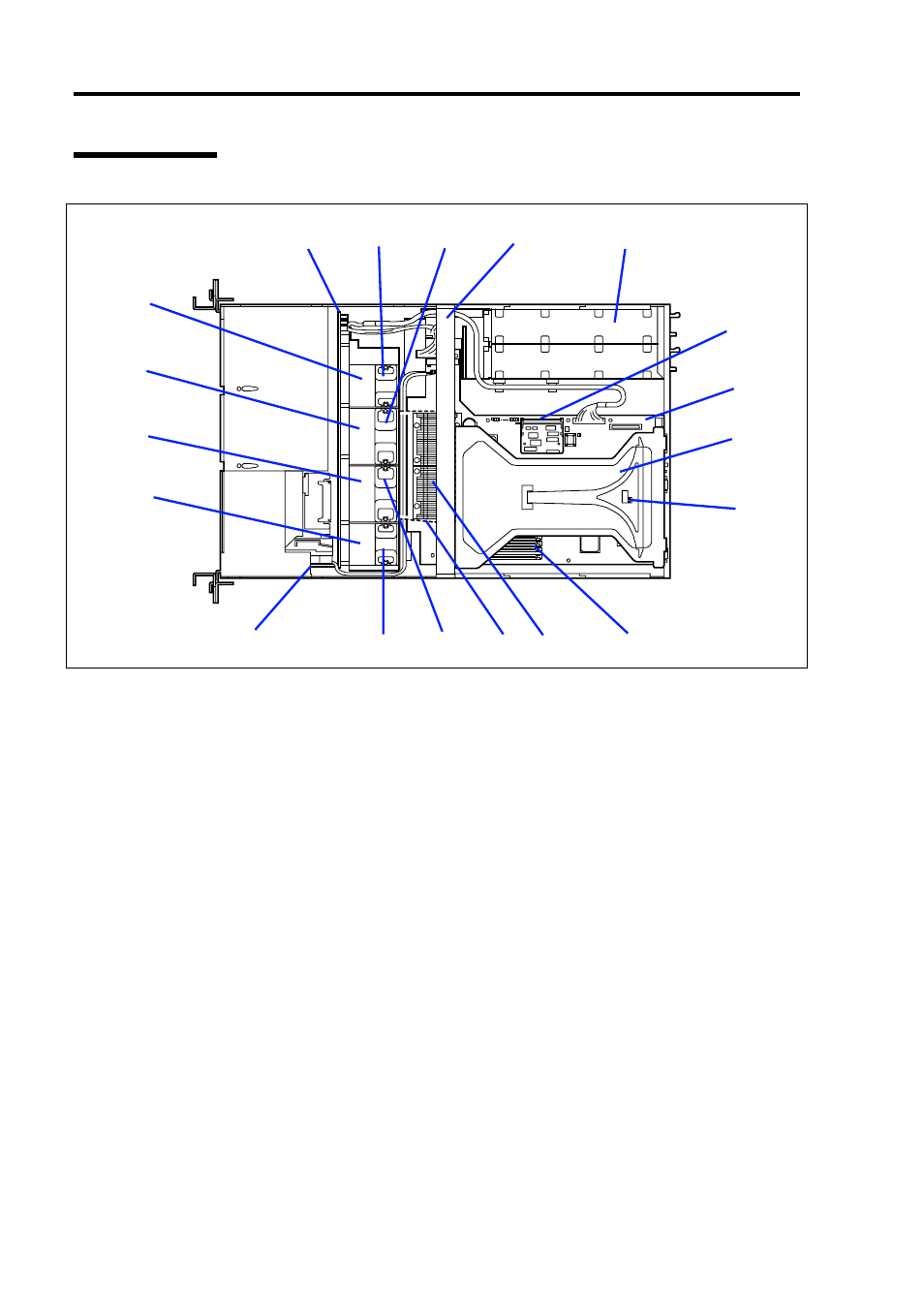

Internal View
1 SCSI backplane
2 Cooling fans
2-1: FAN1
2-2: FAN2 2-3: FAN3
2-4: FAN4
3 Support arm
4 Power supply unit
5 Remote management card
6 Mother board
7 Riser card
8 Chassis intrusion switch
9 DIMM (Two DIMMs are mounted as standard in slots #7 and #8.)
10 Processor (mounted under the CPU and heat sink)
11 Processor duct (dashed-line)
12 Front panel board
13 Optional redundant fan slots
13-1: FAN5
13-2: FAN6 13-3: FAN7
13-4: FAN8
1 2-1 2-2 3 4
6
7
8
9 10 11 2-3 2-4 12
13-1
13-2
13-3
13-4
FRONT REAR
5
