Upgrading Your Server 9-43

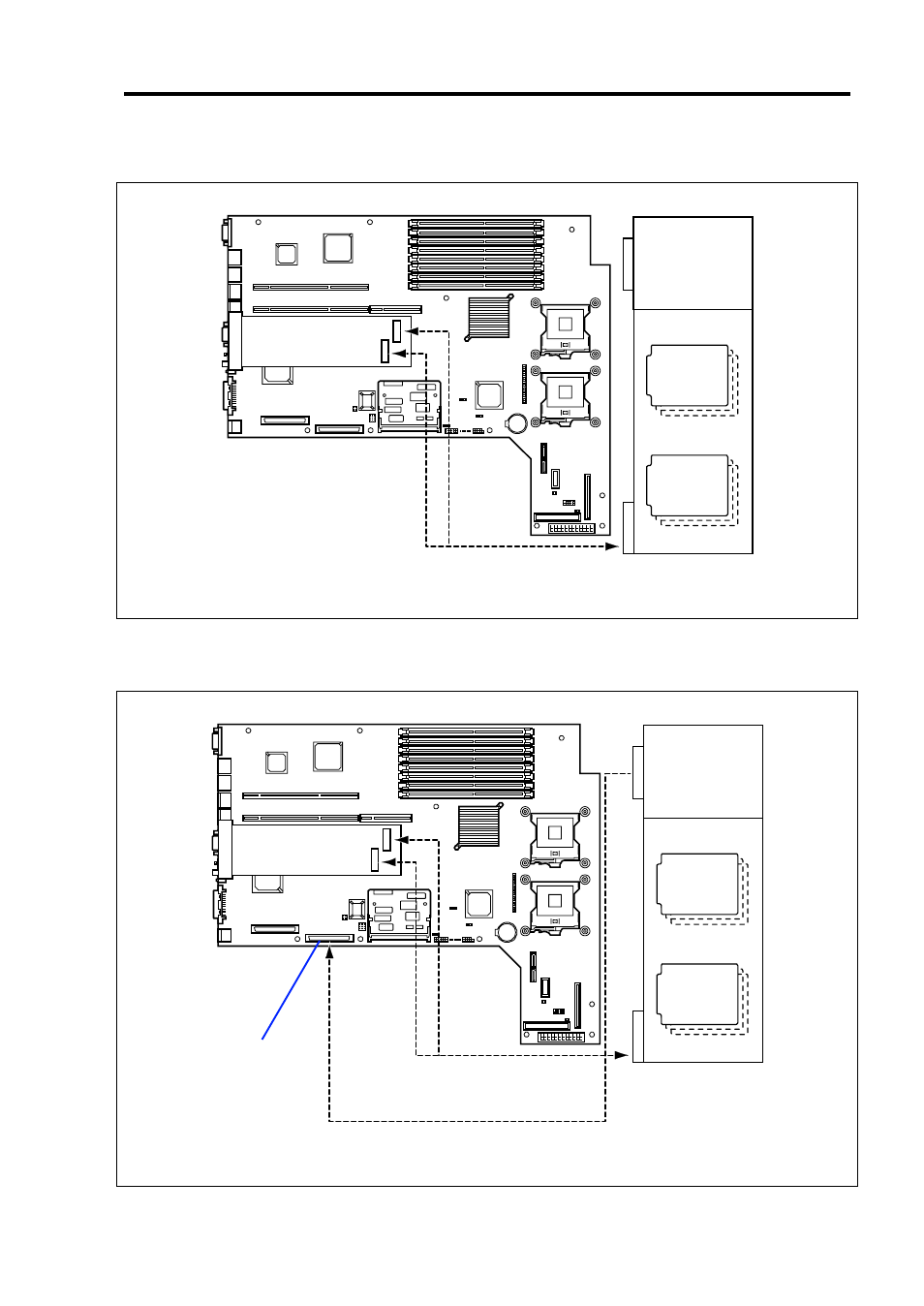

With N8103-91 disk array controller connected and internal IDE backup device
With N8103-91 disk array controller connected and internal SCSI backup device
SAS hard
disk drive
Ports 3-5
Internal IDE
backup device
SAS hard
disk drive
Ports 0-2
N8154-10 SAS back panel
N8103-91
disk array controller
(for internal HDD)
Mother board
REAR FRONT
Internal SAS cable
(provided with N8154-10
SAS back panel)
SAS hard
disk drive
Ports 3-5
Internal SCSI
backup device
SAS hard
disk drive
Ports 0-2
N8154-10 SAS back panel
N8103-91
disk array controller
(for internal HDD)
Mother board
REAR FRONT
Internal SAS cable
(provided with N8154-10
SAS back panel)
SCSI connector
K410-130 (00) internal SCSI cable
