4-30 Configuring Your Server
Main Menu
When you select [Configure/View HostRAID Settings], the Main Menu as shown below appears
upon completion of device scan.

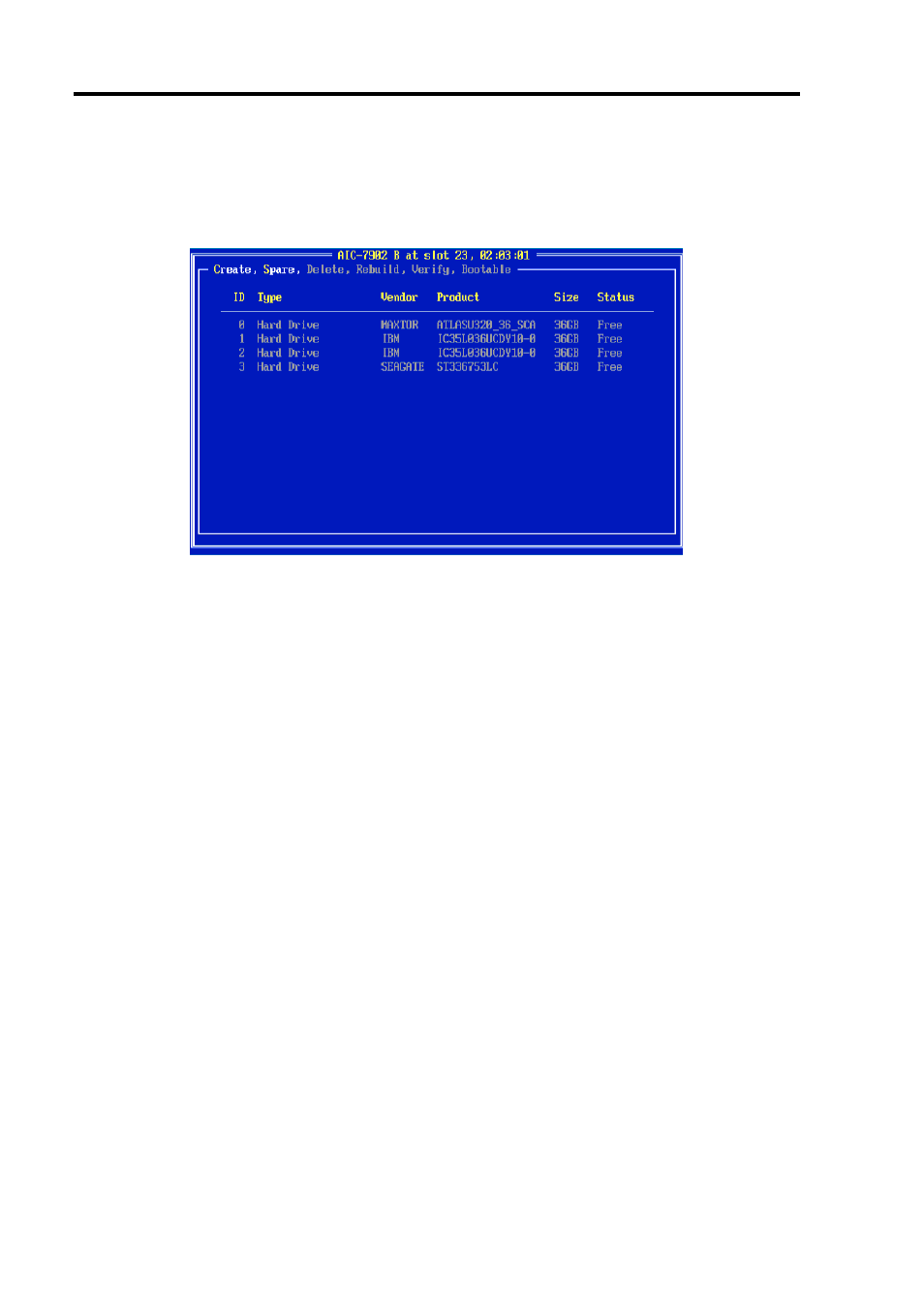

Main Menu Display
■ ID - Indicates SCSI ID of hard disk drive or ID of array.
■ Type - Indicates RAID level for the array, and available disk drive that is not in the array.
† Hard Drive - Available hard disk drive that is not in the array.
† Striped(R0) - Array configured in RAID0
† Mirrored(R1) - Array configured in RAID1
† Stripe/Mirror(R10) - Array configured in RAID10 (spanning of RAID1)
† Spare - Hard disk drive assigned as a spare disk
■ Vendor - Indicates the manufacturer of hard disk drive or HostRAID (Adaptec).
■ Product - Indicates the model name of hard disk drive or array name.
■ Size - Indicates the capacity of hard disk drive or that of array.
■ Status - Indicates the status of hard disk drive or array.
† Free - Available hard disk drive that is not in the array.
† Optimal - Array is in normal state.
† Degraded - One of the RAID1 or RAID10 hard disk drives is failed.
† Dead - One or more RAID0 hard disk drives is failed.
Two or more RAID1 or RAID10 hard disk drives are failed.
† Building - The array is in build process.
† Verify - The array is in verify process.
† Rebuild - The array is in rebuild process.
