9-18 Upgrading Your Server

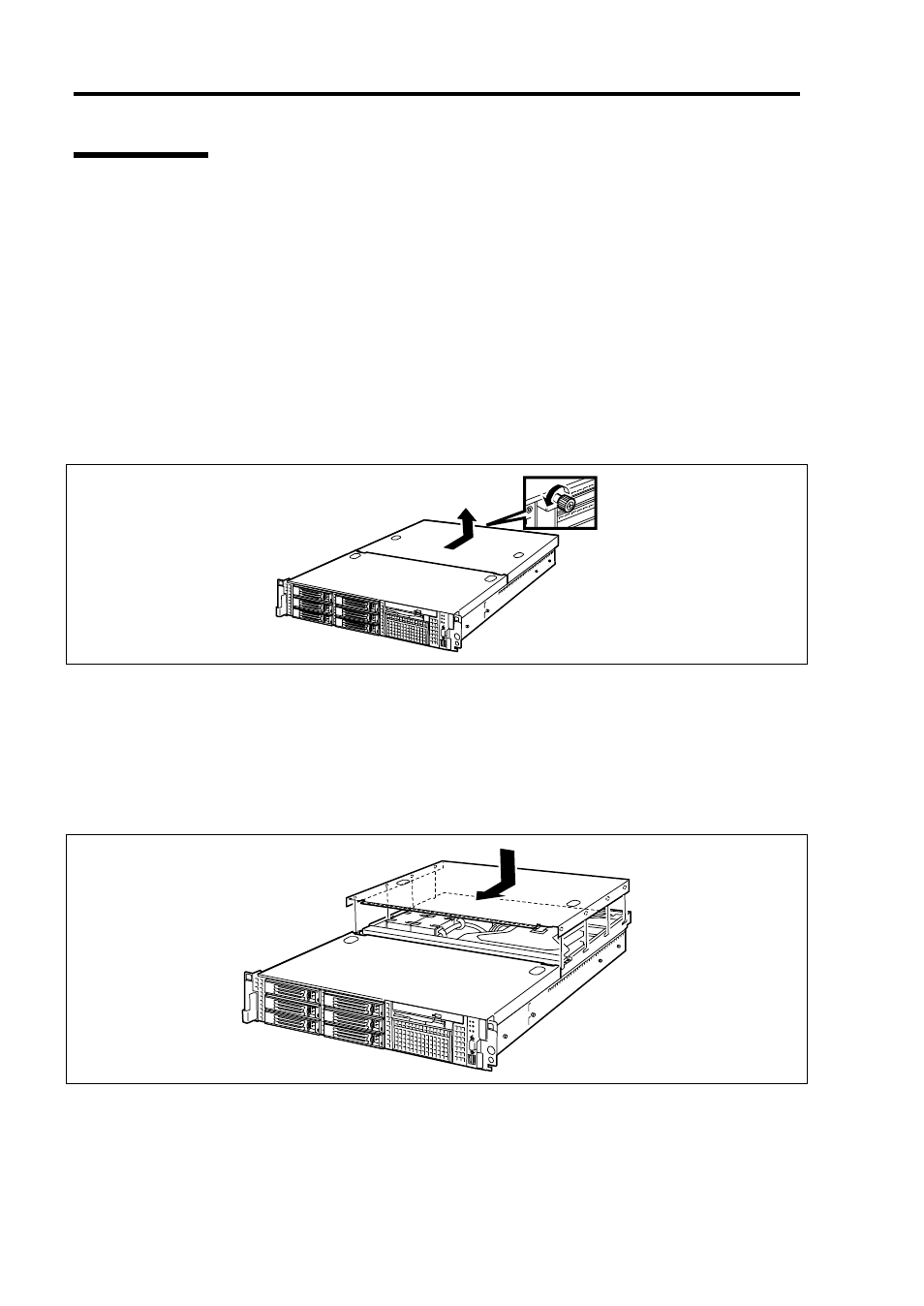

Logic Cover
Open the logic cover when installing/removing a DIMM, processor, and PCI add-in card or
reconnecting an internal cable.
Removal
1. See the section "Preparing for Installation and Removal" described earlier to prepare.
2. Pull out the server from the rack.
3. Loosen a captive thumbscrew at the rear of the server.
4. Slide the logic cover toward the rear of the server and lift off the cover from the server.
Installation
When installing the logic cover, confirm that the tab of the cover is securely inserted into the slot in
the server frame.
Slide the logic cover toward the rear of the server and secure the cover with captive thumbscrew.
