9-40 Upgrading Your Server

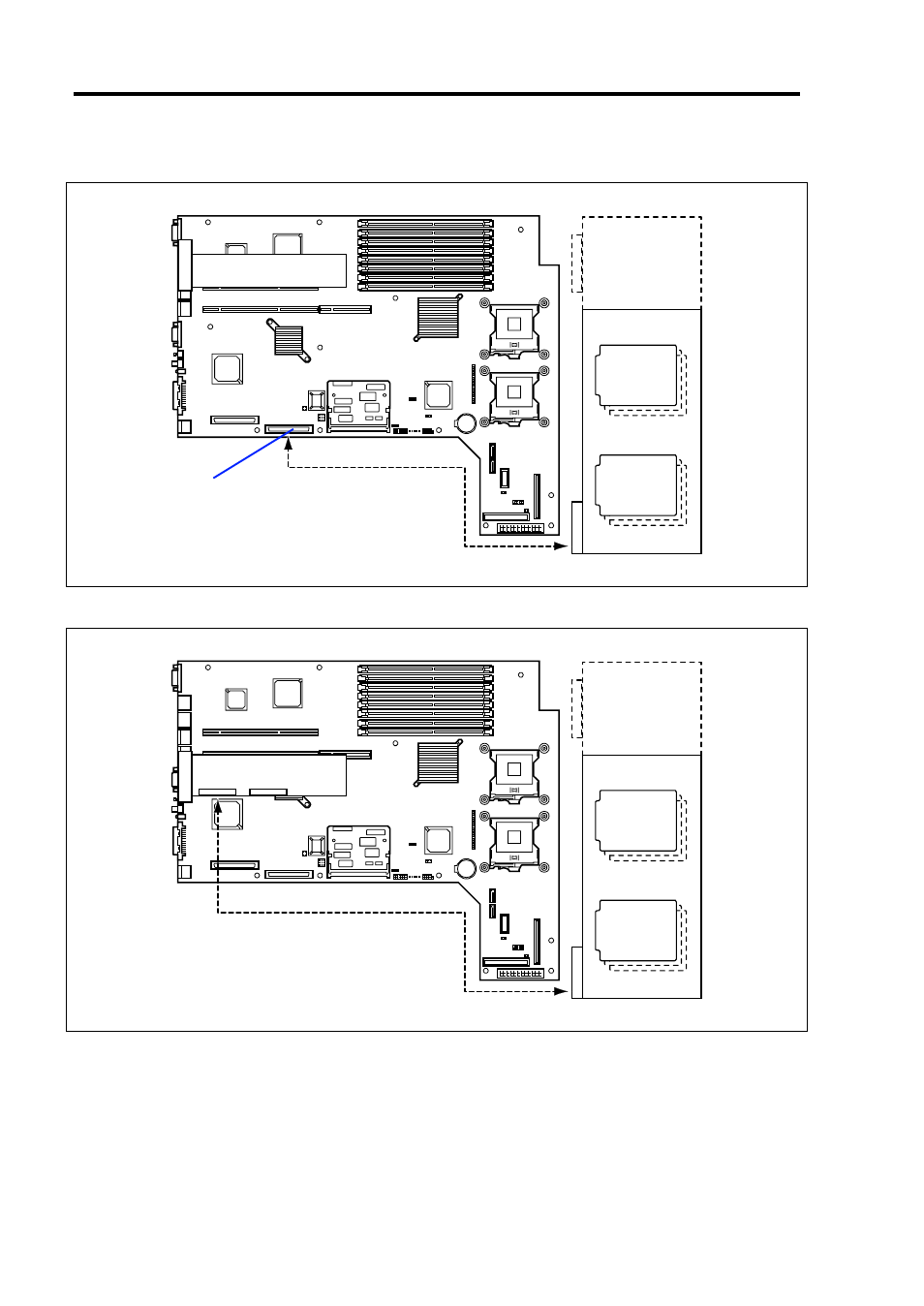

With N8103-86 disk array controller connected

With N8103-80F/81F disk array controller connected

Mother board

Hard disk

drive

SCSI ID3-5

Internal backup

device

Hard disk

drive

SCSI ID0-2

SCSI backplane

SCSI connector

N8103-86

disk array controller

Mother board

Hard disk

drive

SCSI ID3-5

Internal backup

device

Hard disk

drive

SCSI ID0-2

SCSI backplane

N8103-80F/81F

disk array controller

Connect the SCSI cable to the SCSI connector on
mother board to configure the disk array.

To use the internal hard disk drives in disk array
configuration, disconnect the standard SCSI cable from the
SCSI connector on mother board, and connect it to the
connector on disk array controller board.

REAR

FRONT

REAR

FRONT
