Symbol Technologies AP-5131 User Manual
Page 291
Monitoring Statistics
7-31

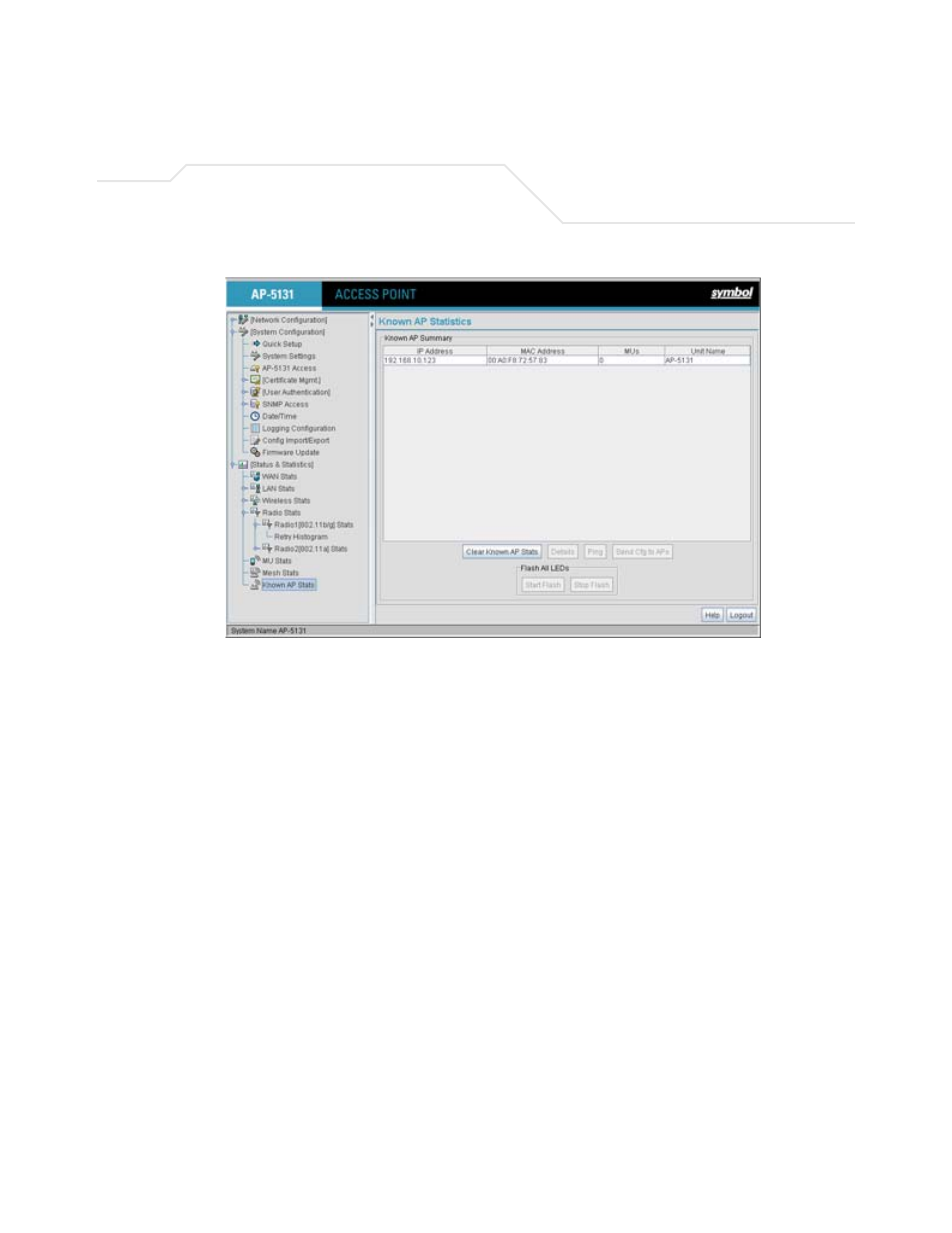

The
Known AP Statistics
screen displays the following information:
2.
Click the
Clear Known AP Stats
button to reset each of the data collection counters to zero
in order to begin new data collections.
3.
Click the
Details
button to display AP-5131 address and radio information.
IP Address
The network-assigned Internet Protocol address of the located AP.
MAC Address
The unique 48-bit, hard-coded Media Access Control address,
known as the devices station identifier. This value is hard coded at
the factory by the manufacturer and cannot be changed.
MUs
The number MUs associated with the located
AP-5131
.
Unit Name
Displays the name assigned to the
AP-5131
using the System
Settings screen. For information on changing the unit name, see
Configuring System Settings on page 4-2
.
