Configuring Access Point Security 6-35

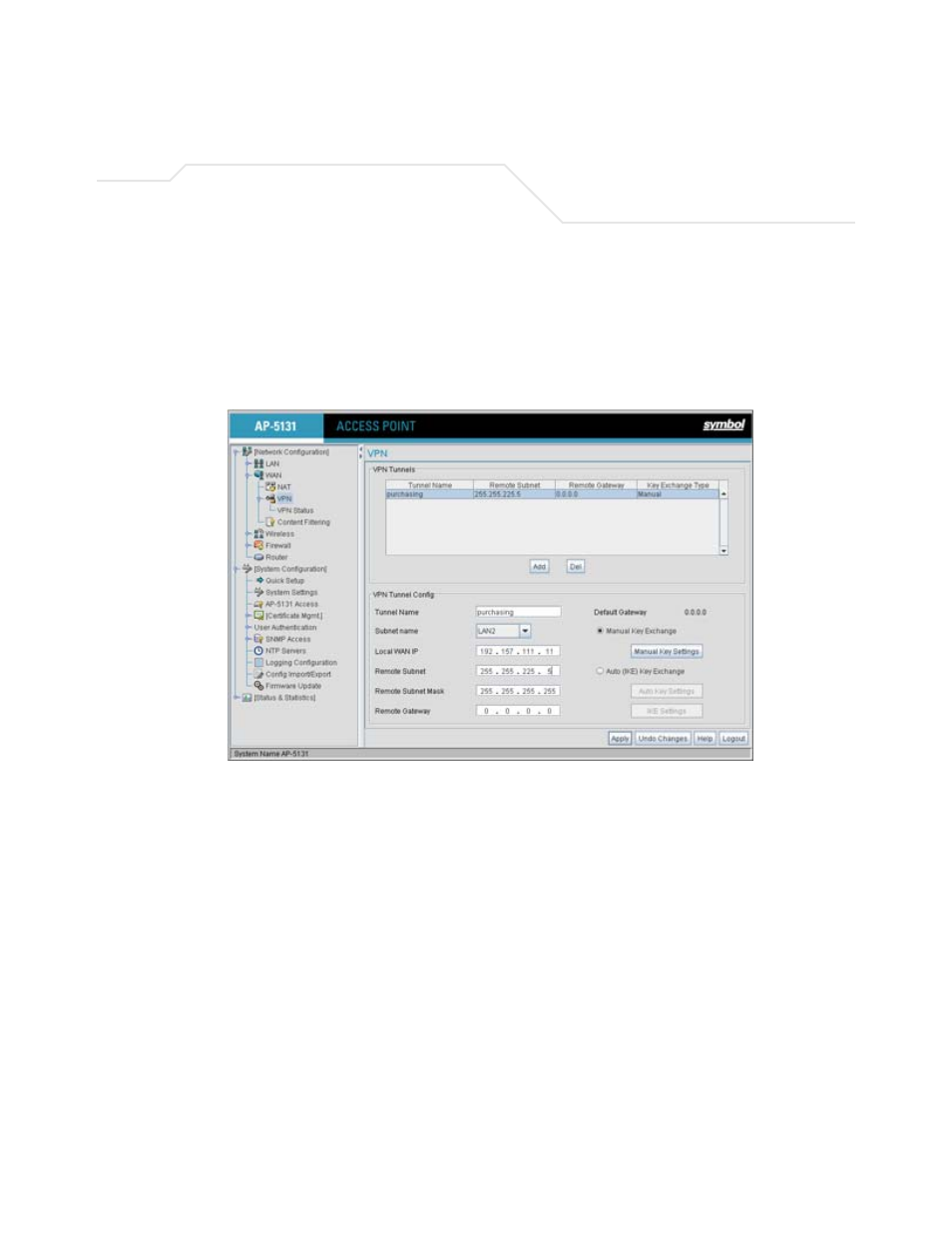

Use the VPN screen to add and remove VPN tunnels. To configure an existing VPN tunnel, select it
from the list in the VPN Tunnels field. The selected tunnel’s configuration displays in a VPN Tunnel
Config field.
To configure a VPN tunnel on the AP-5131:
1. Select Network Configuration -> WAN -> VPN from the AP-5131 menu tree.
2. Use the VPN Tunnels field to add or delete a tunnel to the list of available tunnels, list
tunnel network address information and display key exchange information for each tunnel.
Add Click Add to add a VPN tunnel to the list. To configure a specific
tunnel, select it from the list and use the parameters within the
VPN Tunnel Config field to set its properties.
Del Click Del to delete a highlighted VPN tunnel. There is no
confirmation before deleting the tunnel.
Tunnel Name The Tunnel Name column lists the name of each VPN tunnel on
the AP-5131 .
