AP-5131 Access Point Product Reference Guide

4-38

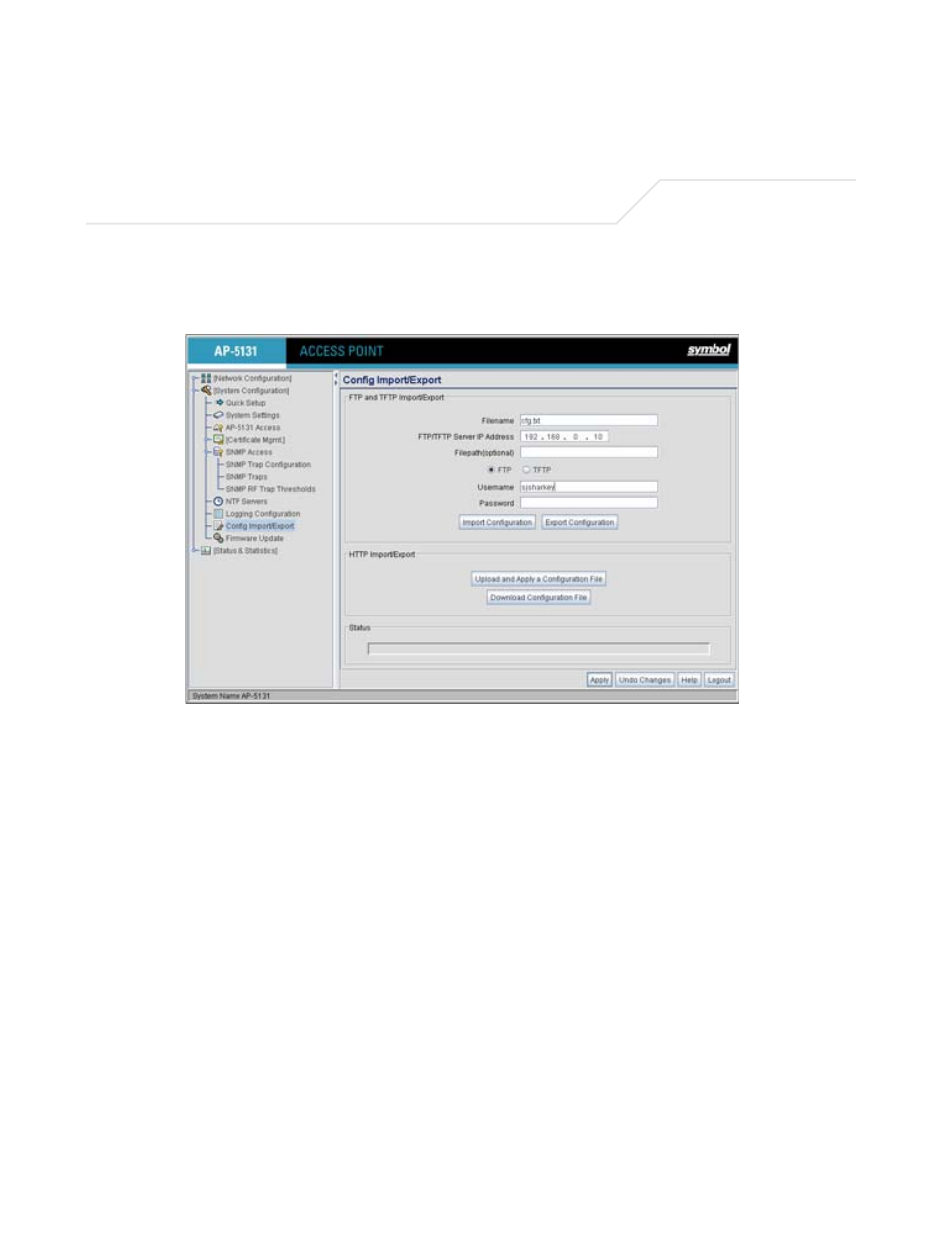

To create an importable/exportable AP-5131 configuration file:

Select

System Configuration

- >

Config Import/Export

from the AP-5131 menu tree.

Configure the

FTP and TFTP Import/Export

field to import/export configuration settings.

Filename

Specify the name of the configuration file to be written to the FTP
or TFTP server.

Server IP

Enter the

numerical (non DNS name)

IP address of the

destination FTP or TFTP server where the configuration file is
imported or exported.

Filepath (optional)

Defines the optional path name used to import/export the target
configuration file.

FTP

Select the FTP radio button if using an FTP server to import or export
the configuration.

TFTP

Select the TFTP radio button if using an FTP server to import or
export the configuration.
