AP-5131 Access Point Product Reference Guide 5-2

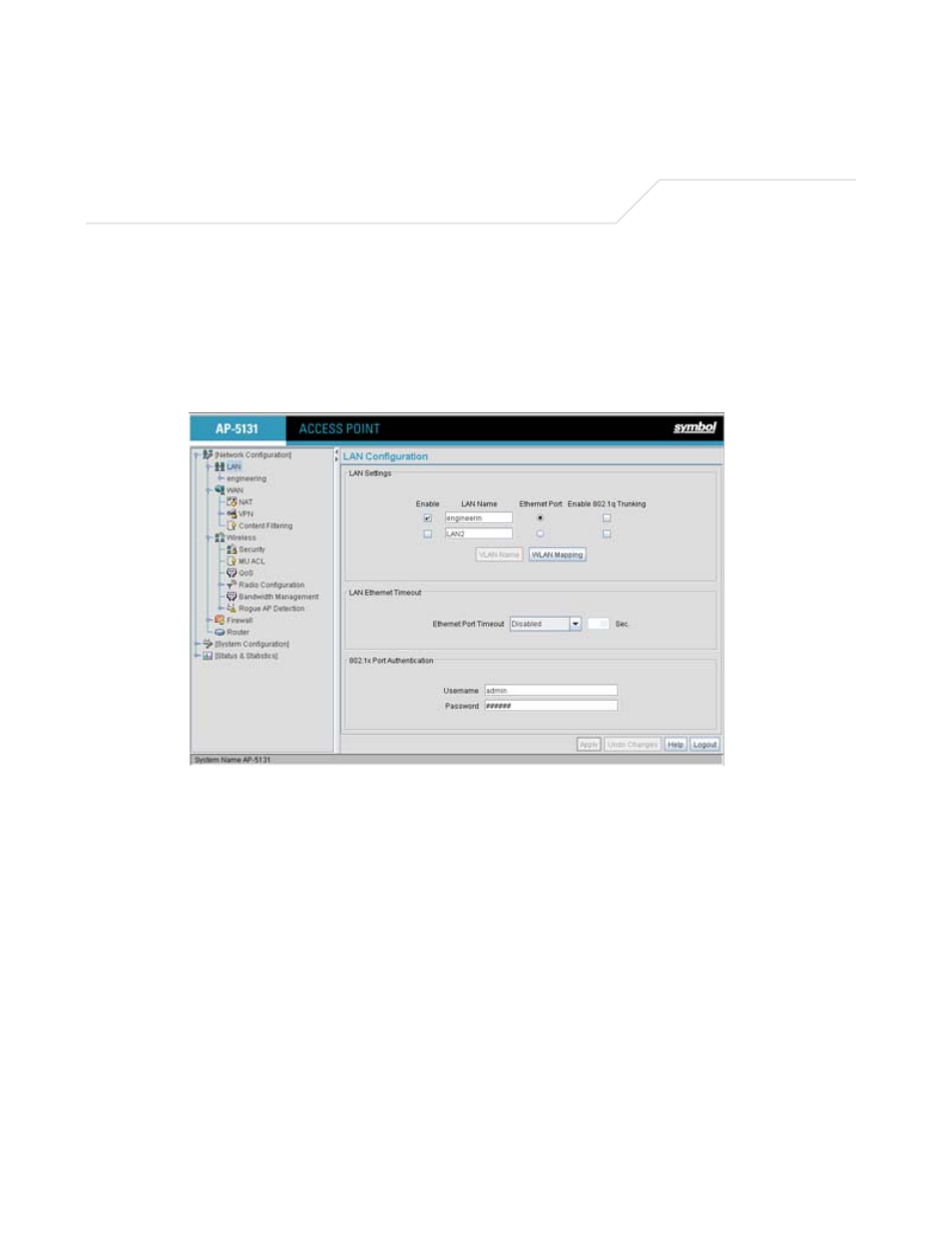

Use the LAN Configuration screen to enable one (or both) of an AP-5131’s LAN interfaces, assign
them names, define which LAN is currently active on the AP-5131 Ethernet port and assign a timeout
value to disable the LAN connection if no data traffic is detected within a defined interval.
To configure the AP-5131 LAN interface:
1. Select Network Configuration -> LAN from the AP-5131 menu tree.
2. Configure the LAN Settings field to enable the AP-5131 LAN1 and/or LAN2 interface,
assign a timeout value, enable 802.1q trunking, configure WLAN mapping and enable
802.1x port authentication.
Enable Select the LAN1 and/or LAN2 checkbox to allow the forwarding of
data traffic over the specified LAN connection. The LAN1
connection is enabled by default, but both LAN interfaces can be
enabled simultaneously.
LAN Name Use the LAN Name field to modify the existing name of LAN1 and
LAN2. LAN1 and LAN2 are the default names assigned to the LANs
until modified by the user.
