VLAN C
ONFIGURATION
2-65
forwarding a frame from this switch along a path that does not contain any
VLAN-aware devices (including the destination host), the switch must first
strip off the VLAN tag before forwarding the frame. When the switch
receives a tagged frame, it will pass this frame onto the VLAN(s) indicated
by the frame tag. However, when this switch receives an untagged frame
from a VLAN-unaware device, it first decides where to forward the frame,
and then inserts a VLAN tag reflecting the ingress port’s default VID..
Displaying Basic VLAN Information
Command Attributes
• VLAN Version Number – The VLAN version used by this switch as
specified in the IEEE 802.1Q standard. (Web interface only.)
• Maximum VLAN ID – Maximum VLAN ID recognized by this
switch.
• Maximum Number of Supported VLANs – Maximum number of
VLANs that can be configured on this switch.

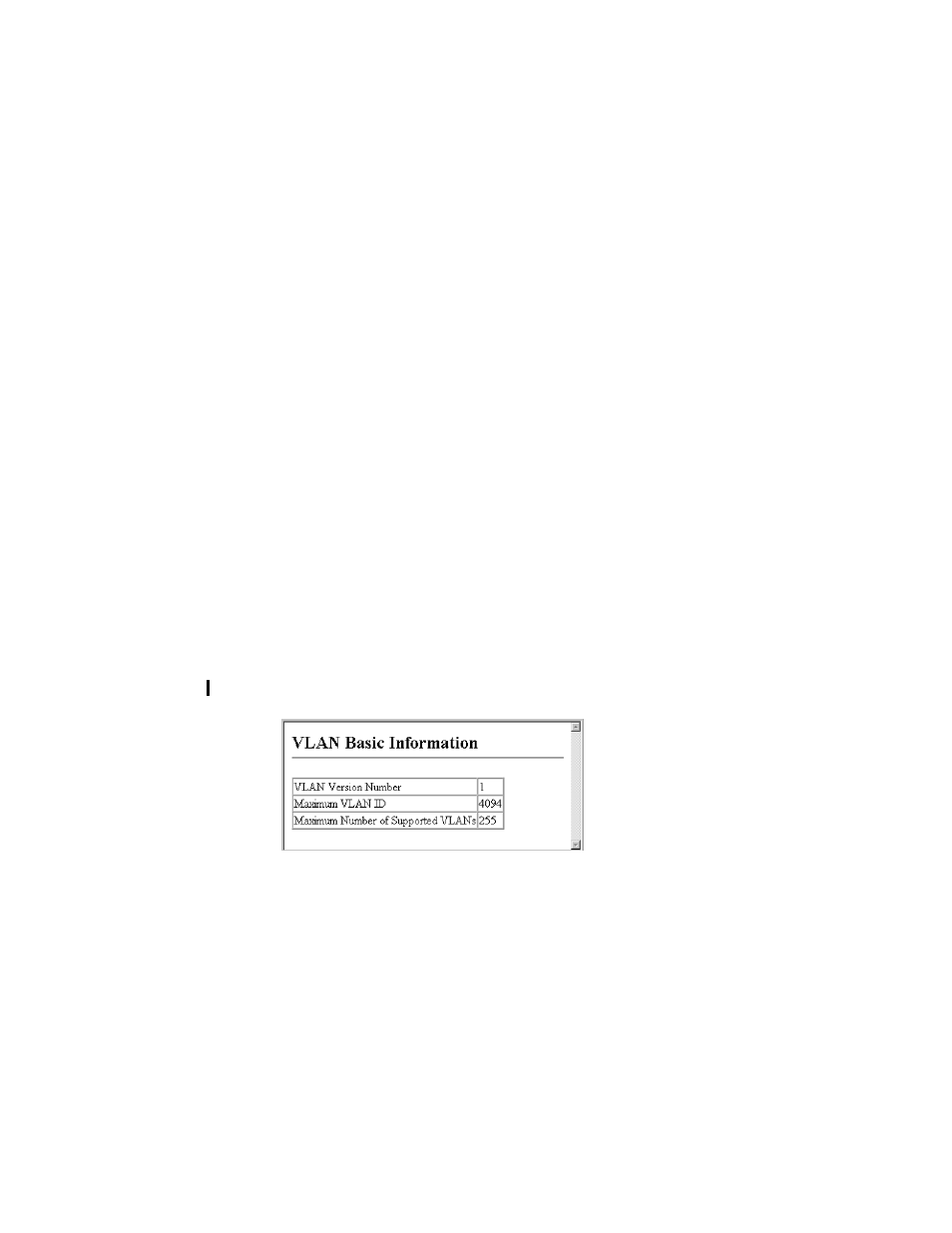

Web – Click VLAN, VLAN Basic Information.
CLI – Enter the following command.
