P
ORT
C
ONFIGURATION
2-35
used for half-duplex operation and IEEE 802.3x for full-duplex
operation. (Avoid using flow control on a port connected to a hub
unless it is actually required to solve a problem. Otherwise back
pressure jamming signals may degrade overall performance for the
segment attached to the hub.)
- (Default: Autonegotiation enabled; Advertised capabilities for
100BASE-TX – 10half, 10full, 100half, 100full; 1000BASE-T –
10half, 10full, 100half, 100full, 1000full; 1000BASE-SX/LX/LH –
1000full)
• Trunk – Indicates if a port is a member of a trunk. To create trunks
and select port members, see “Port Trunk Configuration” on page
2-88.
Note: Autonegotiation must be disabled before you can configure or
force the interface to use the Speed/Duplex Mode or Flow
Control options.

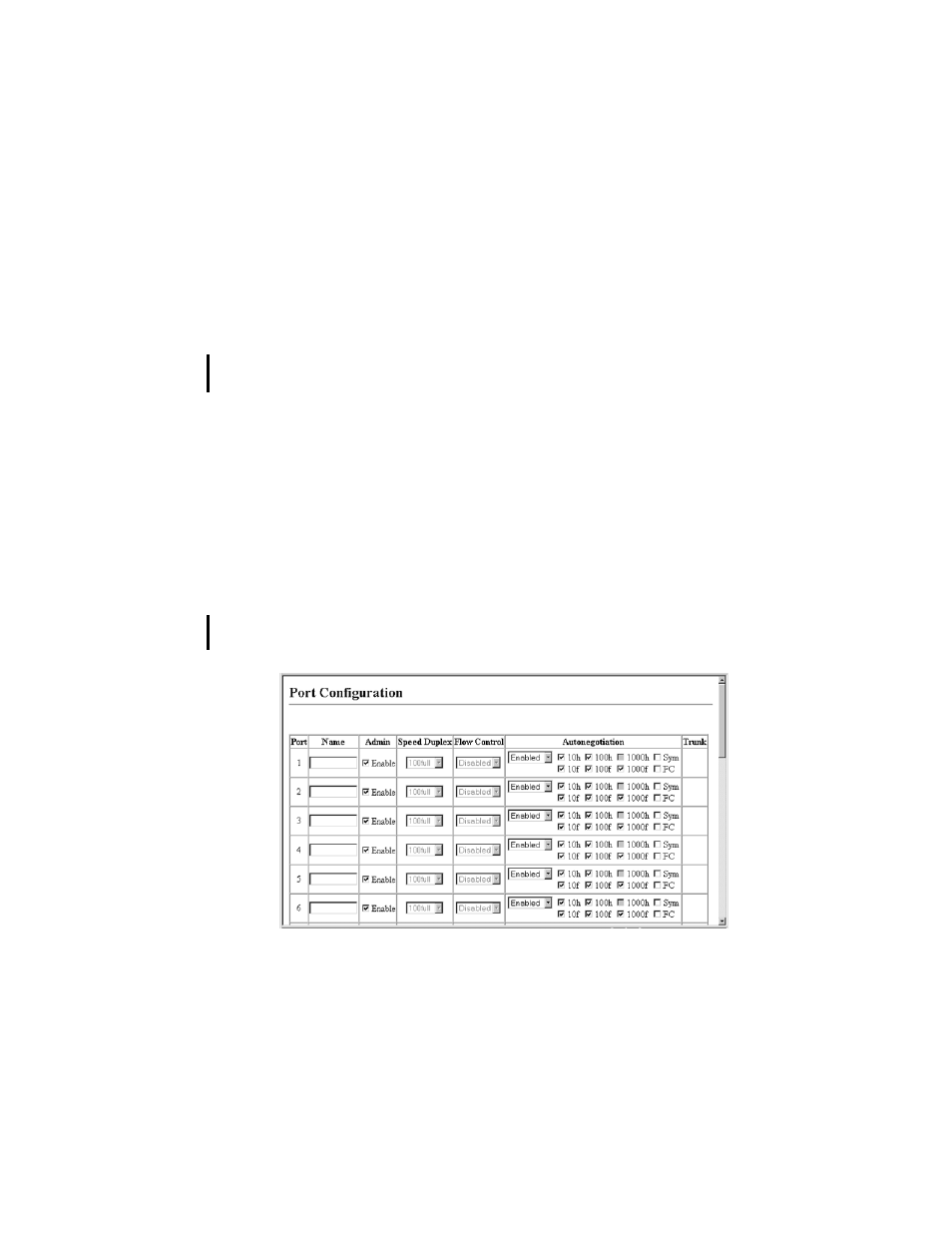

Web – Click Port, Port Configuration or Trunk Configuration. Modify the
required interface settings, and click Apply.
