1.8 L
AYOUT
& I
NSTALLATION

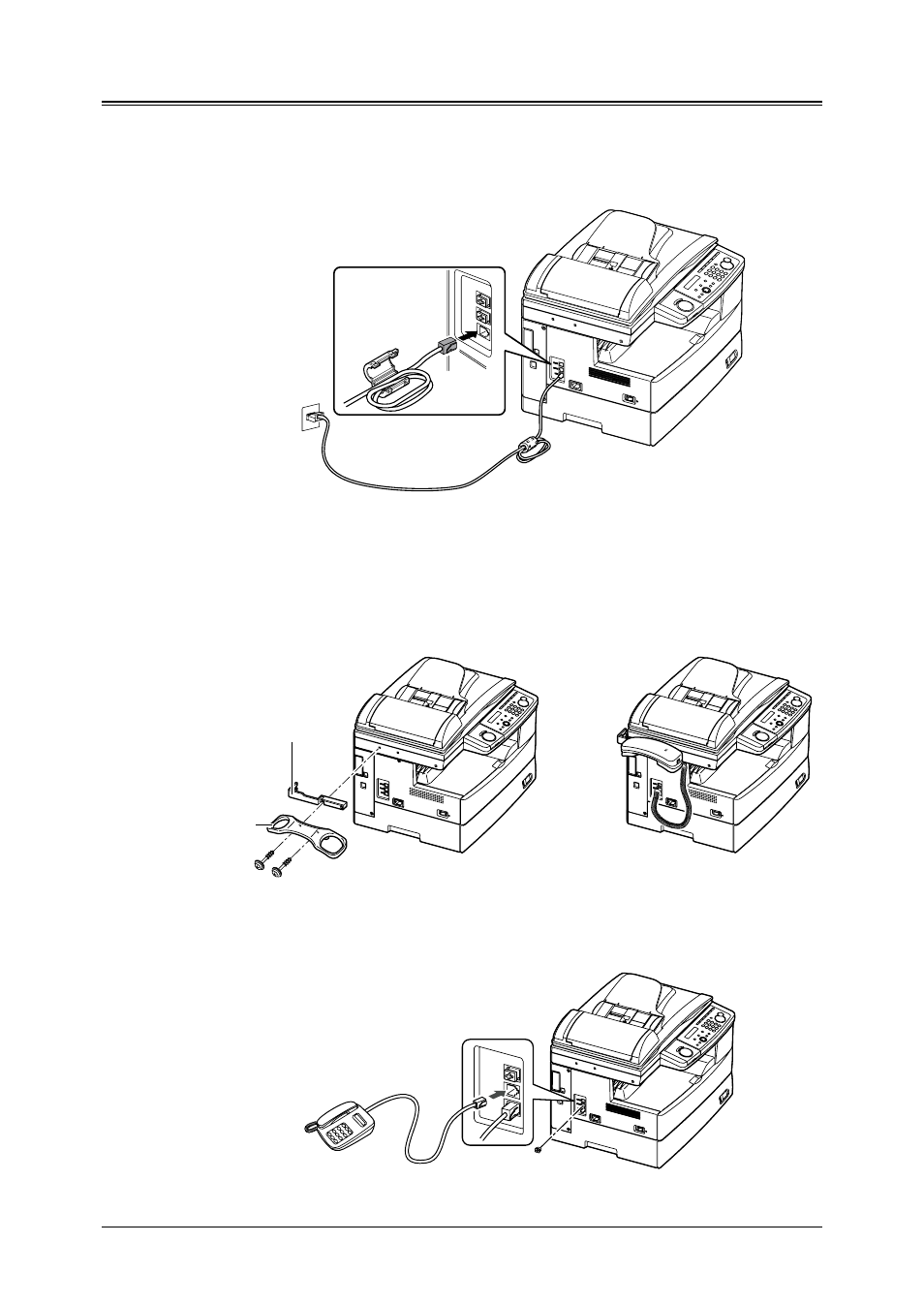

Making connection
Telephone line connection
Ataach the supplied ferrite core to the telephone line cord as illustrated below.
Plug the telephone line cord to the LINE jack and the other end to the wall jack.
Telephone wall jack
LINE
PHONE
1
PHONE
2
If you want to use your machine for receiving both faxes and voice calls, connect the
optional handset or an external telephone to your machine.
Connecting the optional handset
Attach the handset cradle and the spacer using the screws supplied with the cradle.
Then plug the handset cord into the PHONE 1 jack of your machine.
spacer
handset
cradle
Connecting an external phone
Plug the external phone’s line into the PHONE 2 jack of your machine.
External phone
(even an answering machine) Modular cap
LINE
PHONE1
PHONE2
