1.4
L
AYOUT
& I
NSTALLATION

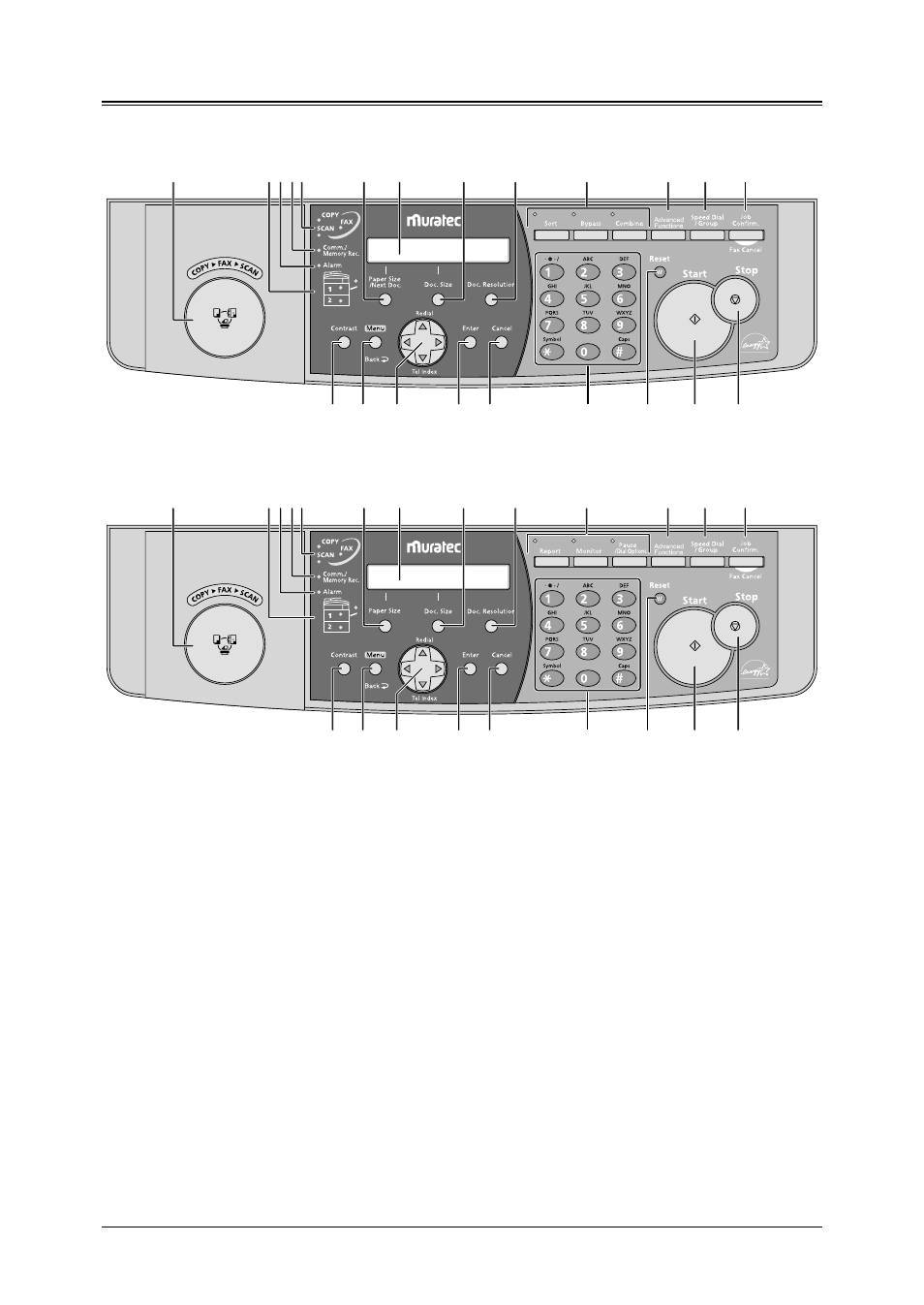

Control Panel Overview
MFX-1330 model
1
2 3 4 5
6
7
8
9
10 11 12
13 14
15
16 17 18
19
20
21
22
F-300 model
1
2 3 4 5
6
7
8
9
10 11 12
13 14
15
16 17 18
19
20
21
22
1
Mode switch button
Pressing this button to switch the machine’s mode.
2
Paper source light
Indicates the selected paper source.
3
Alarm light
Glows when a problem occurs.
4
Comm. /Memory Rec. light
Blinks when the machine is communicating with another machine.
Glows when the machine has the received document in its memory.
5
Machine mode light
Indicates what mode the machine is in.
6
Paper Size /Next Doc. (MFX-1330 model)
Selects the paper you want to use for copying.
Also, if you press this key while the machine is scanning the current documents, the machine will be
put on standby for scanning the additional documents even after the current scanning ends.
Paper Size (F-300 model)
Selects the paper you want to use for copying.
7
LCD (Liquid crystal display)
Shows messages and selections, and prompts during operation.
