SETTING UP
User's Manual 2-21
Quick
Reference
Introduction
Setting Up
P
aper
Handling
Printing
Setup Mode

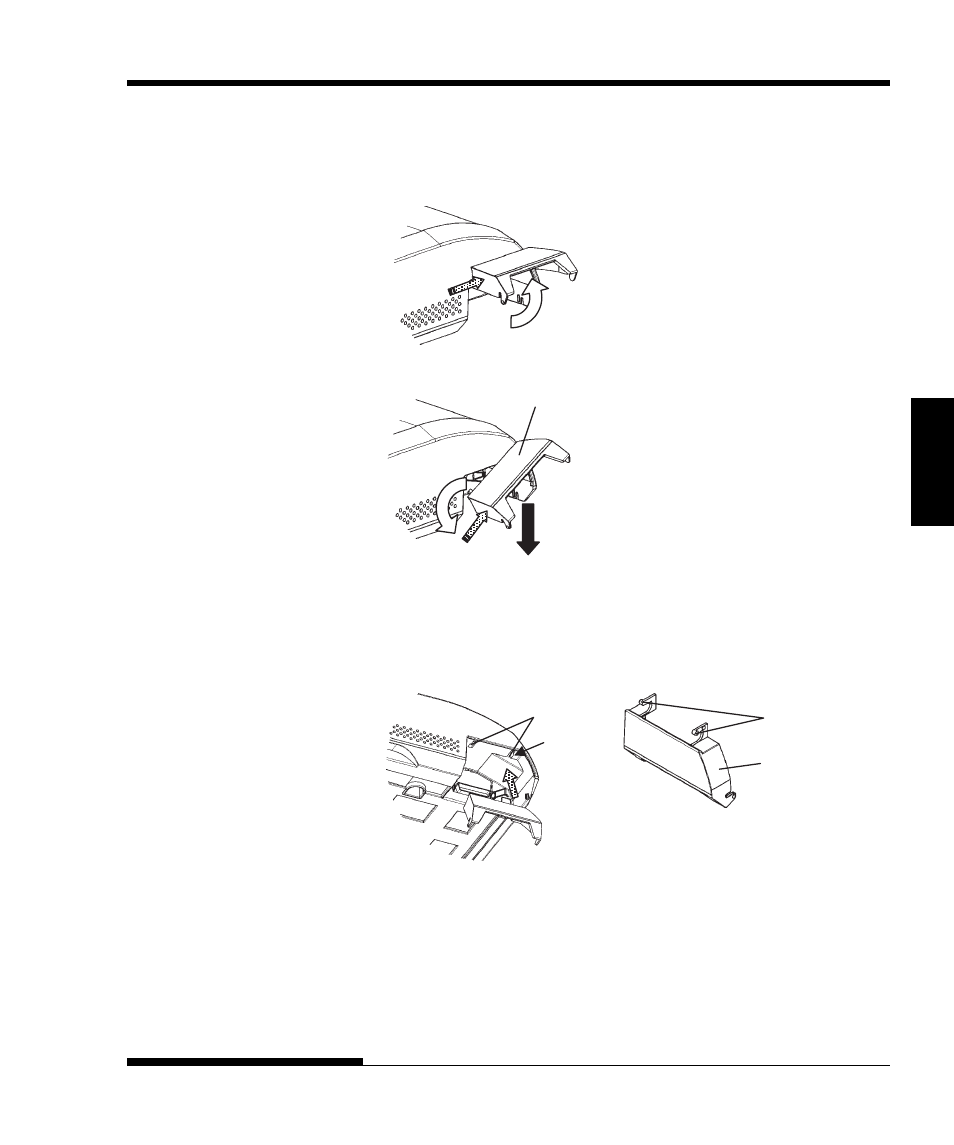

Removing the shutter
1. Open the shutter.
2. Gently push the back end of the shutter
toward the front of the printer.
3. While holding the shutter in the position
described in step 2, rotate it in the manner
shown in the figure on the left to
disengage it.
4. Remove the shutter.
1
2
2
3
4
Shutter
Attaching the shutter
(a)
5
Mounting slots
Tabs
Shutter
5. Tilt the shutter and pass the shutter tabs
through the mounting slots, starting with
the slot on side (a) shown in the figure on
the left. The order in which the shutter tabs
are passed through the slots is the reverse
of that for removing the shutter.
CAUTION
Take care not to use excessive force when pushing the back of the shutter
toward the front of the printer. Otherwise, the shutter tabs may be
damaged.
