SETTING UP
User's Manual 2-7
Quick
Reference
Introduction
Setting Up
P
aper
Handling
Printing
Setup Mode
3. Hold the cut sheet stand at an angle over the top of the printer. Slide
the mounting pins into the long, front grooves of the notches. This is
the cut sheet stand's up position, used for printing single sheets.
To rotate the cut sheet stand to its down position, grasp it at the sides
and lift it up until the two upper mounting pins clear the front notches.
Rotate the cut sheet stand backward to place the upper mounting pins
in the rear grooves.
Installing the Ribbon Cartridge
The printer uses a black ribbon cartridge. To install the ribbon cartridge:
1. Turn the printer off. Open the front cover of the printer. For easy
installation, slide the print head carriage so that it does not face a bail
roller.
2. The paper thickness lever, located on the right of the printer, has nine
positions. Before you install the ribbon cartridge, move this lever to D.

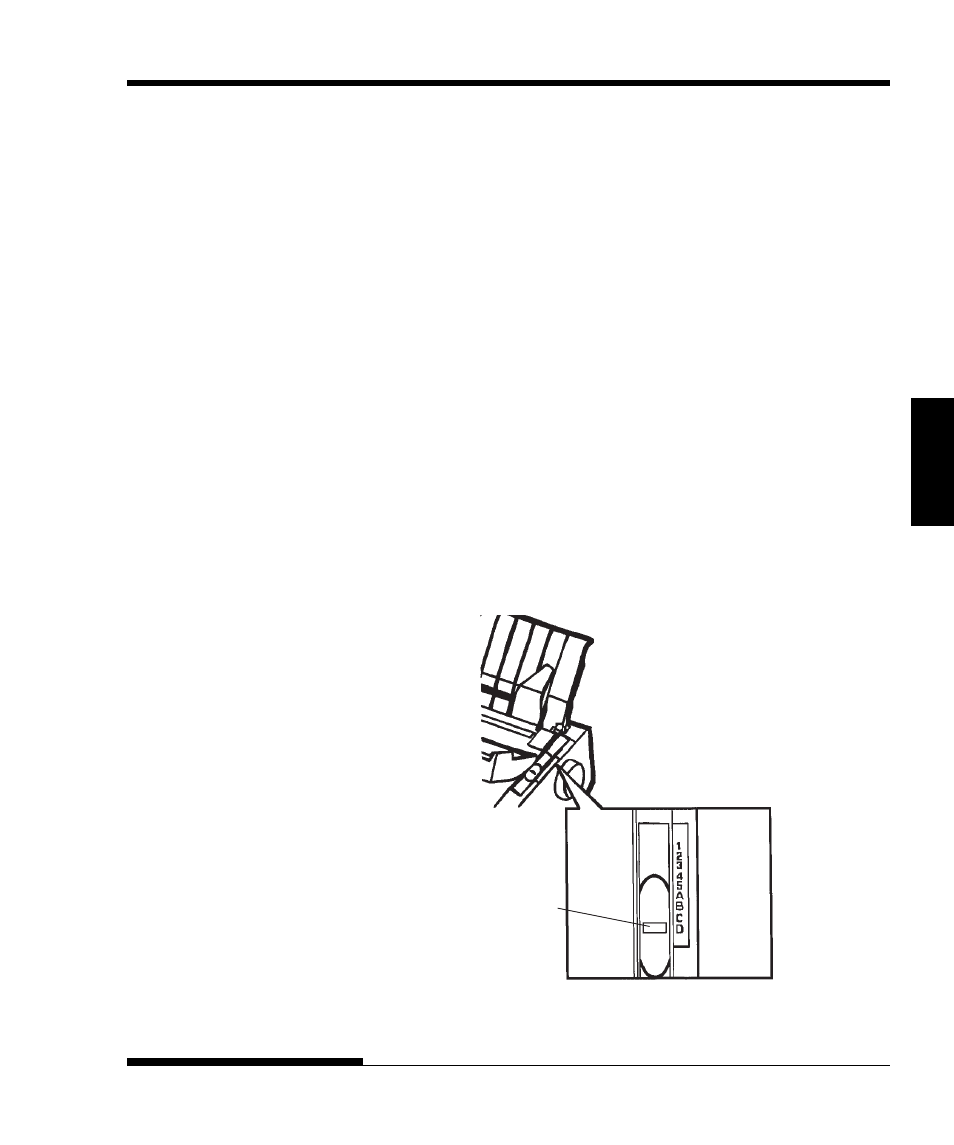

Preparing to install the ribbon
Paper thickness lever
Move to D.
