FUJITSU DL3750+/3850+ - Manual (Page 213)

D-11 User's Manual
INTERFACE INFORMATION
Interface
USB INTERFACE Cable
This printer supports the USB 1.1 Full speed specification. To connect to the
host, use USB 2.0-compliant INF cables (5 meters (196 inch) or shorter).
(Use the shielded cables.)

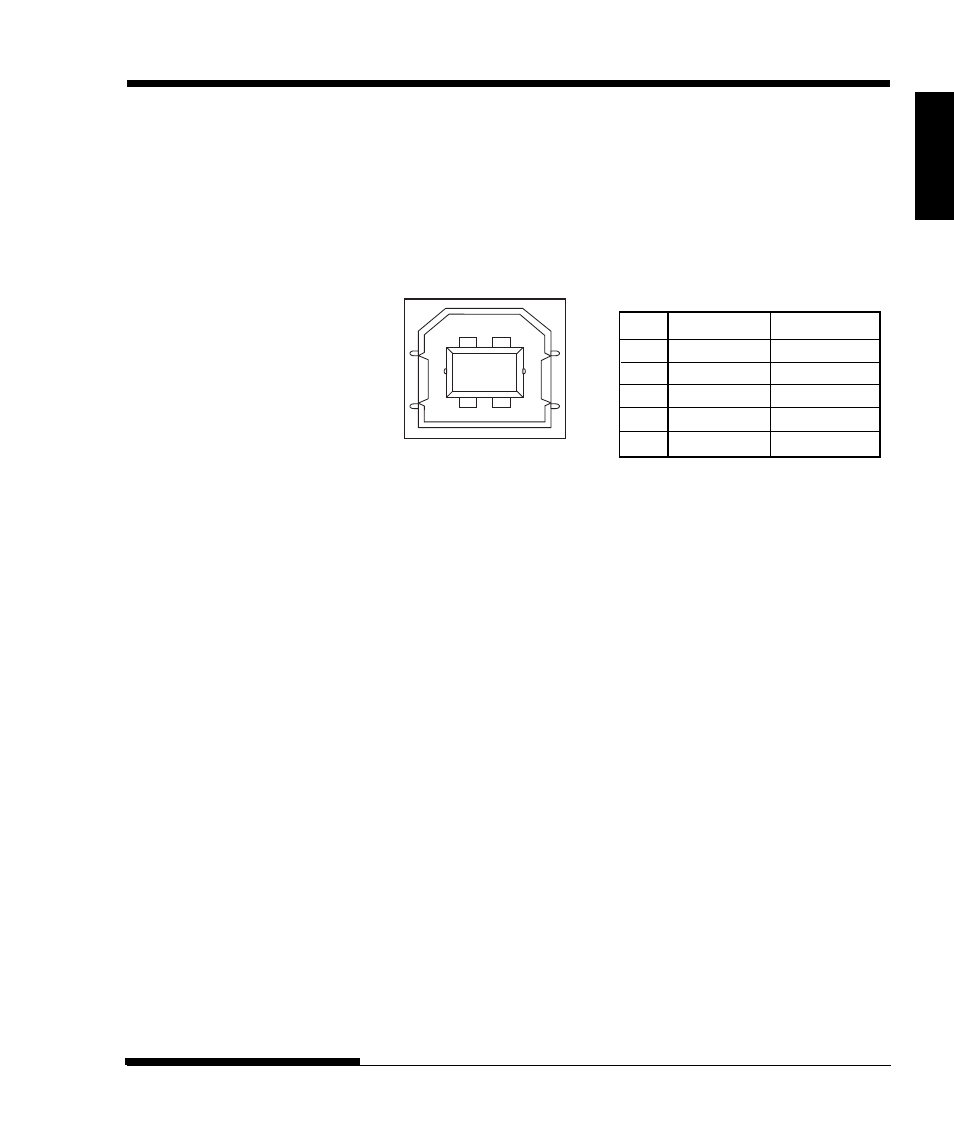

Connector pin alignment
No. Signal line name Function
1 vbus Power supply
2 D- Data transfer
3 D+ Data transfer
4 GND Signal ground
Shell Shield
- Connector specification
Printer side Type B receptacle (female)
Upstream port
Cable side Type B plug (male)
Specification
- Basic specification USB interface compliant
Note
It does not guarantee all operations on hosts.
- Power control Self-power device
- Transmission mode Full speed (Maximum 12 Mbps +
0.25%)
2 1
3 4
