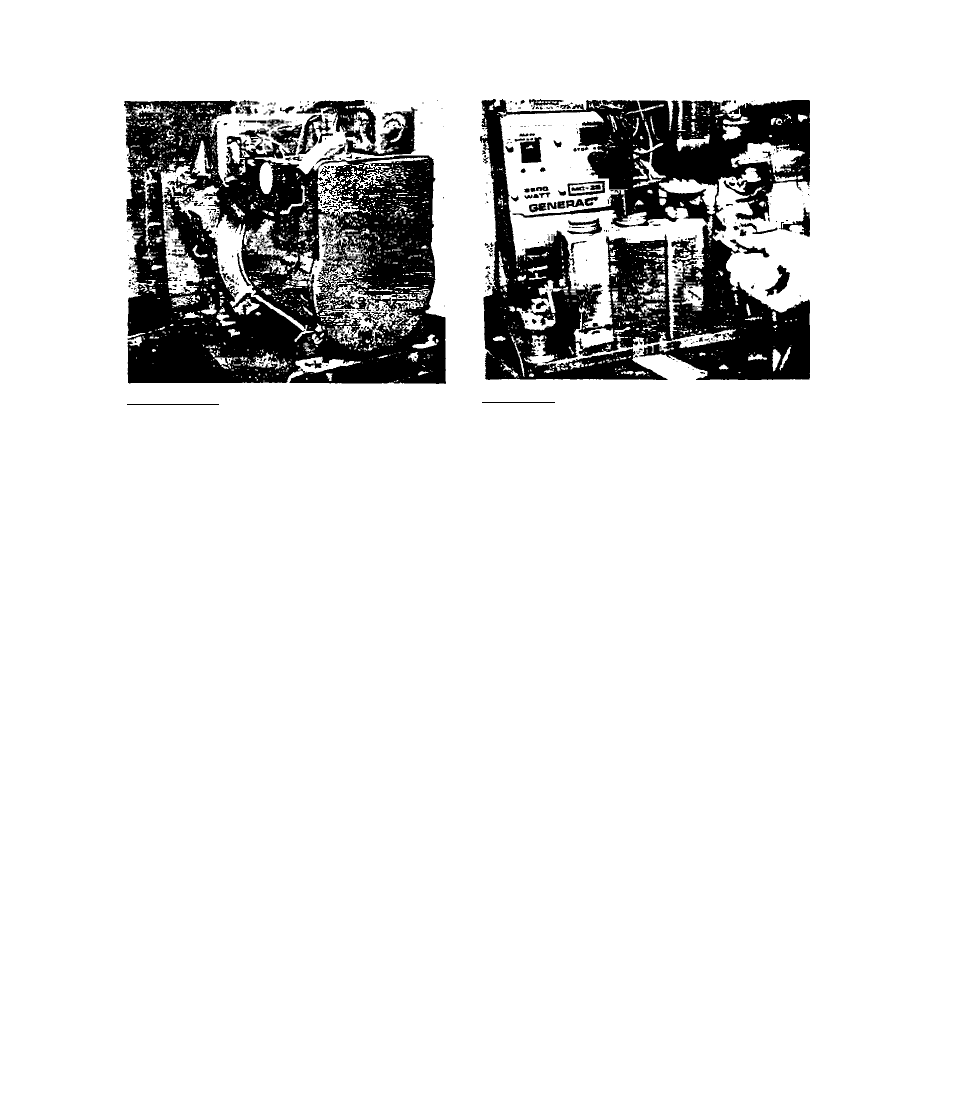

3« 2» 3,24-Install rpar panel with
voltage regulator. Connect read
and white connector plugs into
their receptacles. Install front
panel• Connect ground wire (No.
10) to center terminal of stop/
start switch.
3.2.3,25-lnstall oil make-up tank
with piimp. Connect oil lines to
pump and probe, retain with clamps.
Connect Wire No. 20 from low oil
level shutdown switch to terminal
strip (see appropriate wiring dia
gram) , Connect ground wire from
low oil level shutdown switch and
from fuel lockoff solenoid to the
tapped hole on adapter casting, a-
long with fuel lockoff solenoid clamp
3,2-ll
