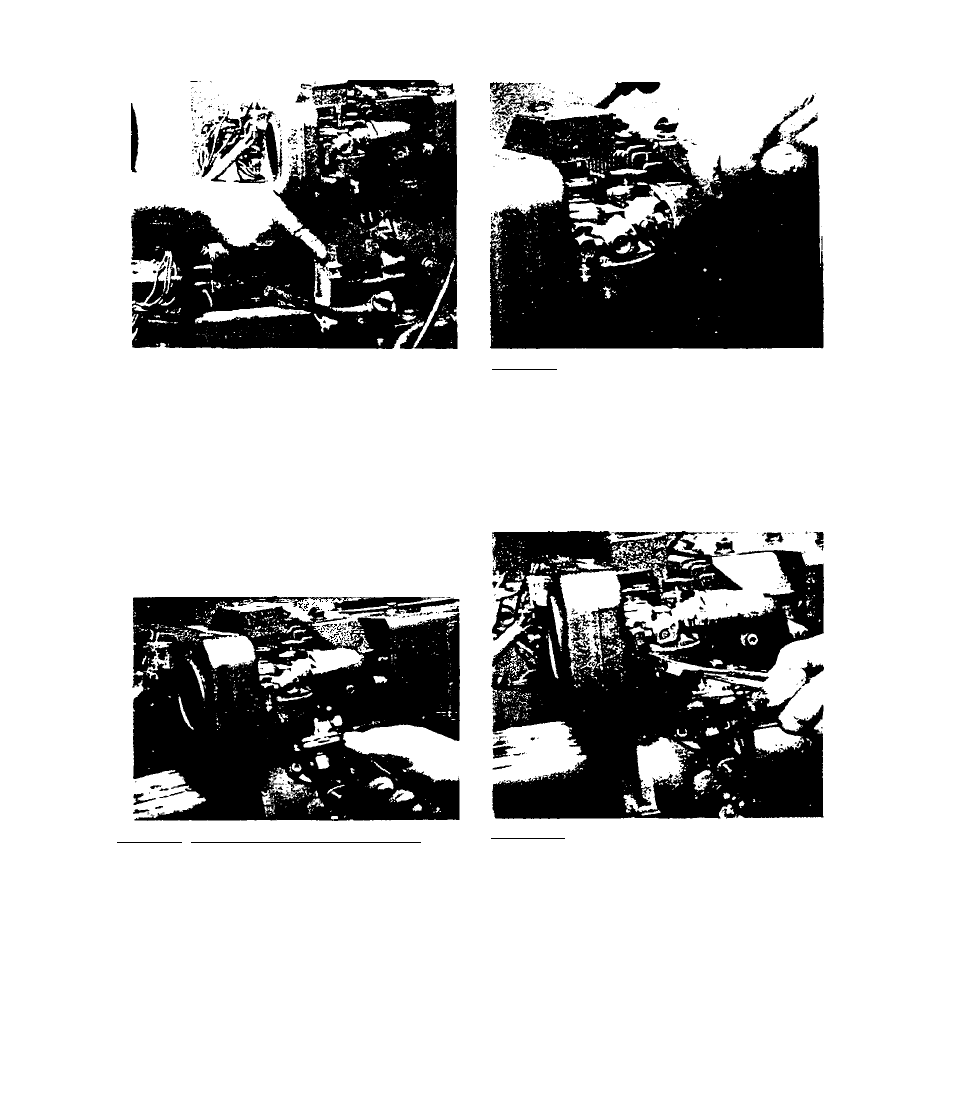

3¿_2 j j _3_2_7-Align adapter casting with
bolt holes in engine gear cover.
Install casting, making sure the
carburetor intake manifold studs
are aligned with carburetor. At
the lower right comer of casting,
retain wi Lh a x 2'^ bolt
\d.th square nut. Also retain with
two 'i/ló-lS X 2^” bolts, lockwash-
ers and hex nuts. Upper left corn­
er of casting will be retained by
a 5/16-18 X 4" bolt and hex nut,
which will aslo retain the starter.
3.2.3.9-MechanicaI Fuel Pump Only:
Install fuel pump, inlet filter,
solenoid shutoff valvp, interconn­
ecting hoses and clamps. Retain the
fuel pump with two M6 x 18 mm sock­
et head capscrews and lockwashers.
Tighten capscrews to 25-30 inch
pounds.
3.2.3.8-Iastall a new carburetor
to intake manifold gasket. Retain
carburetor to intake manifold with
two -^-20 NyLok nuts.
3.2.3.10-The fuel pump to carburet­
or fuel line contains a filter
screen. Install clamps over fuel
line. Then connect line to carbur­
etor inlet fitting and fuel pump
outlet fitting. Retain line with
clamps.
3 . 2 - 7
