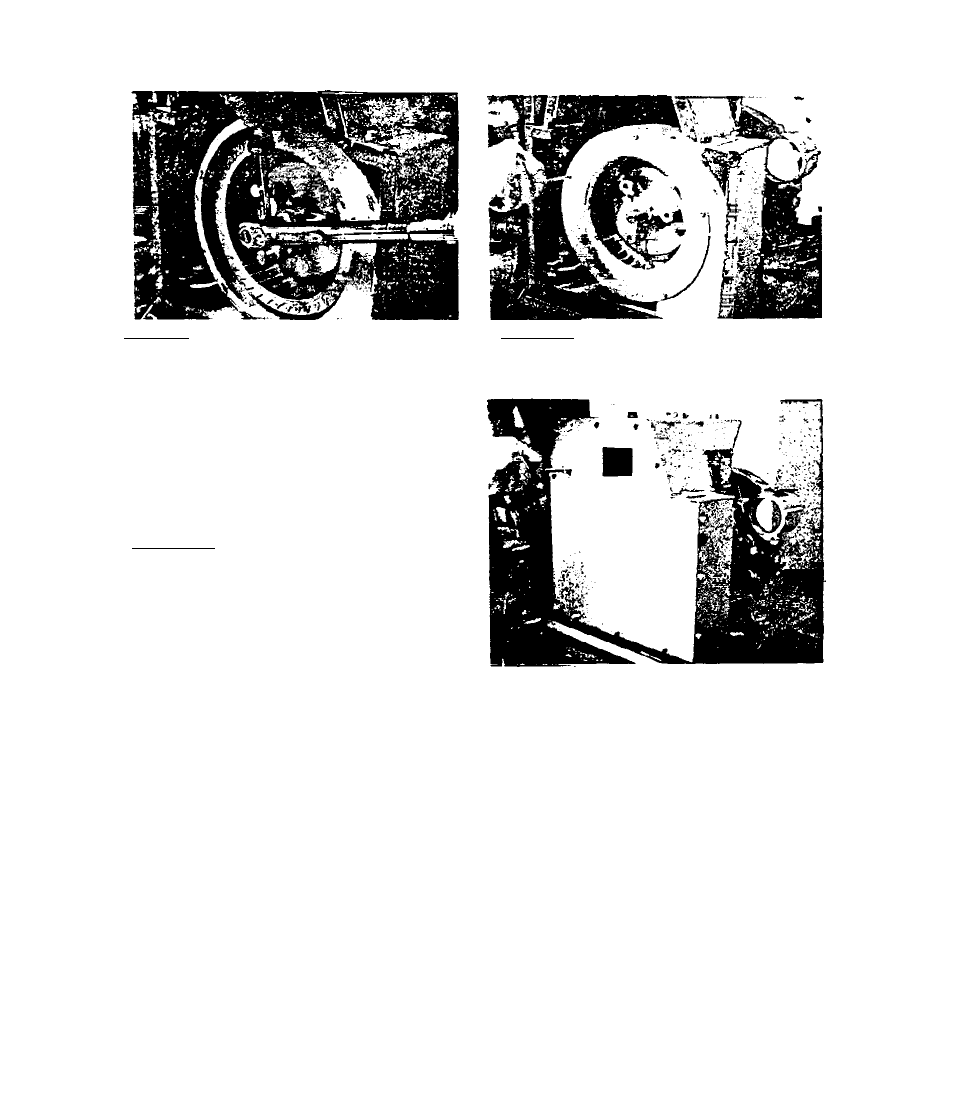

3^1,3>9-Align keyway in blower fan
hub wlCh drive key on engine shaft.
Install blower fan over engine
shaft. Make sxire drive key and key
way are engaged. Install special M-
14 hex nut and flatwasher. Prevent
crankshaft from turning, then torq
ue hex nut to 50-55 foot-pounds.
3.It 3#11-Install blower shroud end
panel. Retain with No. 10-32 screws
and flatwasherst
3.1.3.lO-jnstall inlet ring as
sho\smi. Retain w1 th No. 6-32 x
3/8 inch long screws and lock-
washers.
3.1-5
