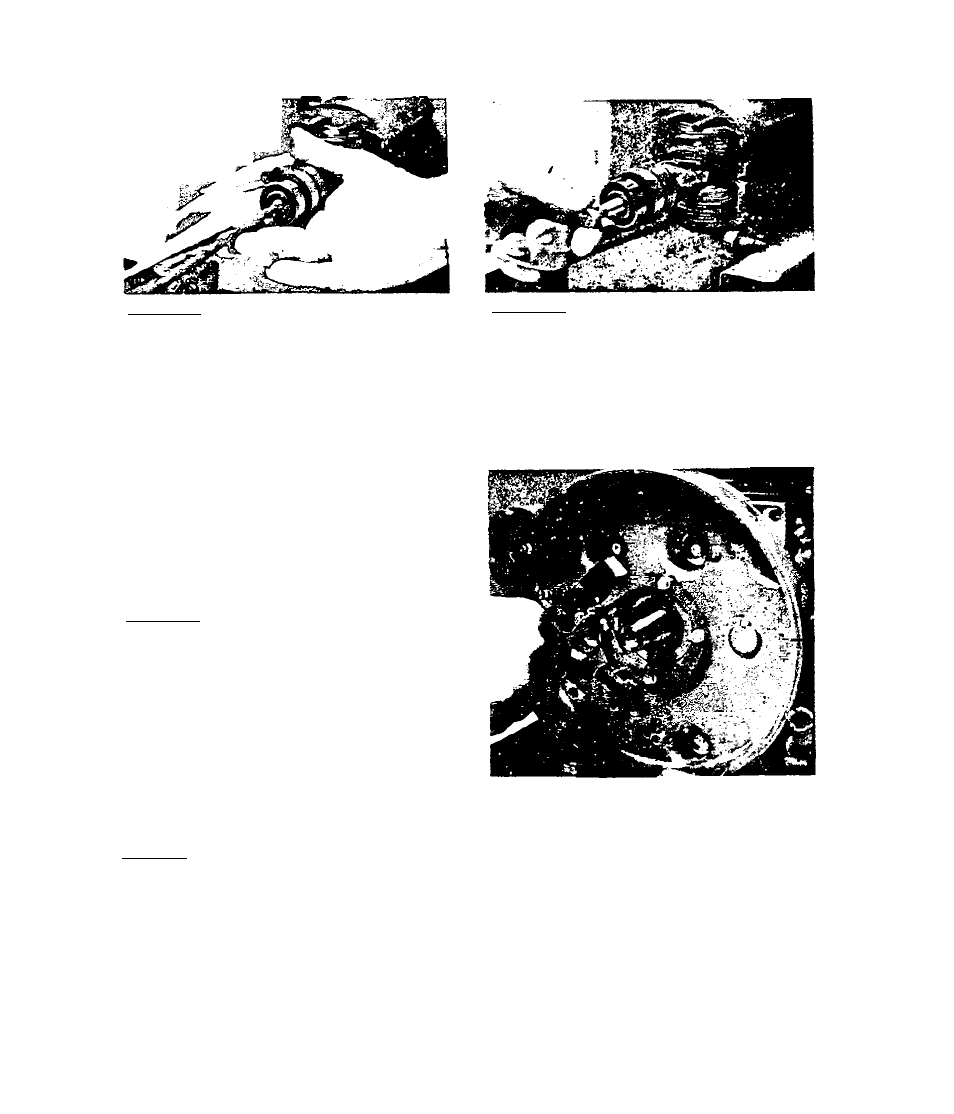

3,2,1,20~SelQcc a stud from the
kit that is long enough so that,
when the stud is threaded into
the engine crankshaft, the slot­
ted end of the stud will extend
approximately Inch into the
rotor shaft. Thread the stud in­
to the engine crankshaft.
3,2,1,22-Remove the ignition stat­
or.
3,2,1,21-Thread the 5/16-24 bolt
(included with rotor removal kit)
into the rotor shaft until It Is
fiinnly seated against the stud.
Tighten the bolt against the stud
and tap the bolt head with a mal­
let, Continue tightening and cap­
ping until rotor is free. Remove
Che rotor and fan assembly.
3.2.2-INSPECTION AND REPAIR
3,2,2,1- GENERAL
Inspect wiring for pinching, obvious damage, defective insulation.
Clean all parts and Inspect for-obvious damage, cracks, etc. Check
connector plugs and receptacles for damage, pins pushed out of
sockets, etc. Repair or replace damaged, defective parts as requir*
ed.
3 . 2 - 4
