GENII SENRx Wireless Temperature Sensors
The GENII SENRx Wireless Temperature Sensors are housed in a square case manufactured from an
ignition resistant grade of ABS, which meets the requirements of AS2420.
There are four models of the GENII SENRx modules:
• SENR1 Wireless Temperature Sensor
• SENR2 Wireless Temperature Sensor with Set Point
• SENR5 Wireless Temperature Sensor with After Hours
• SENR6 Wireless Temperature Sensor with Set Point and After Hours
Colour: Off white
Dimensions(max): 80mm(w) x 80mm(h) x 37mm(d)
Mounting: Wall Mounted
The GENII SENRx modules should be mounted within a 20 metre radius (depending on obstructions)
of the GENII WMI Wireless Module Interface. The location should be dry, clean and free of excess
vibration. Refer to Figure 2-9.
�
U P
MOUNTING
HOLES
80
80
5
7
30

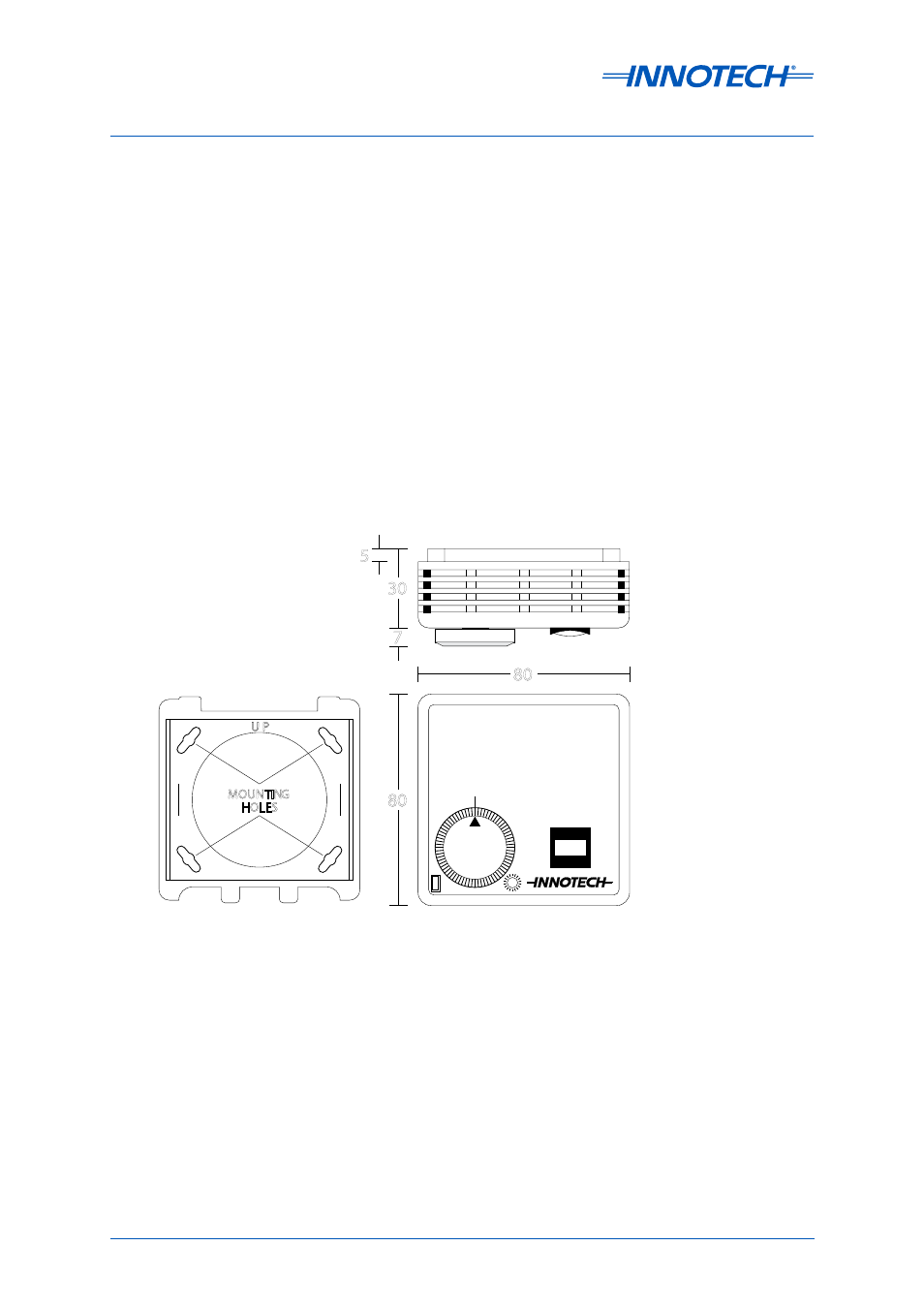

Figure 2-9: GenII SENRx Wireless Temperature Sensors
