Figure 27 – Quantum TC2201 User Manual

Page 57

Chapter 2 TC2201 Web Interface

iSCSI Mapping Page

Quantum TC2201 User’s Guide

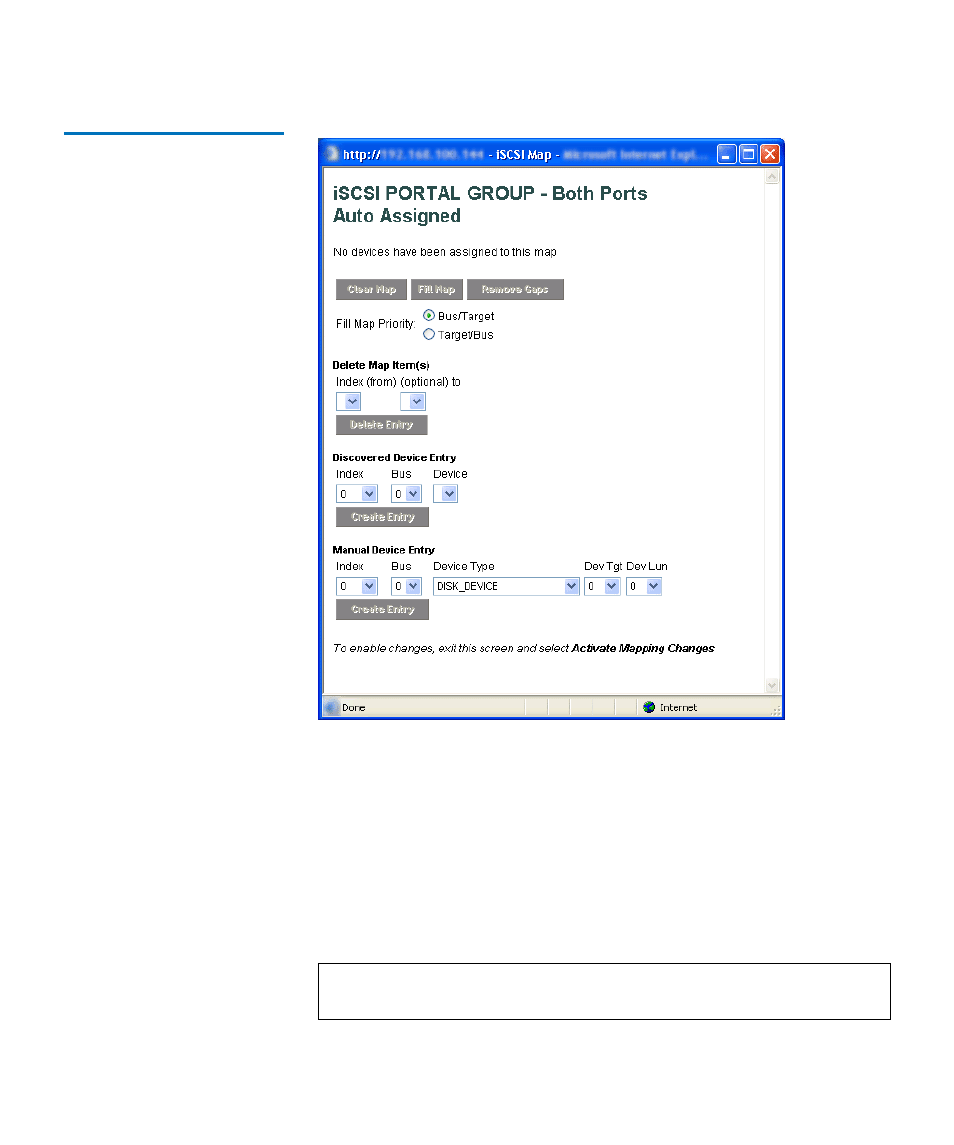

Figure 27 Select Current Map
Page

• To completely clear the current map of all entries, select the

Clear Map

button.

• To fill the map, select the fill option from the pull-down list and then

select the

Fill Map

button. When the map is filled, the menu shows the

current mappings.

• To remove all gaps, or unfilled entries, from this map, select the

Remove Gaps

button. When removing gaps from the table, this

option also renumbers all Indexes in sequential order starting with

Index 0.

Note:

Some operating systems require gaps be removed in the

mapping table in order to detect all devices.
