Chapter 2 TC2201 Web Interface
Ethernet Page
Quantum TC2201 User’s Guide 26

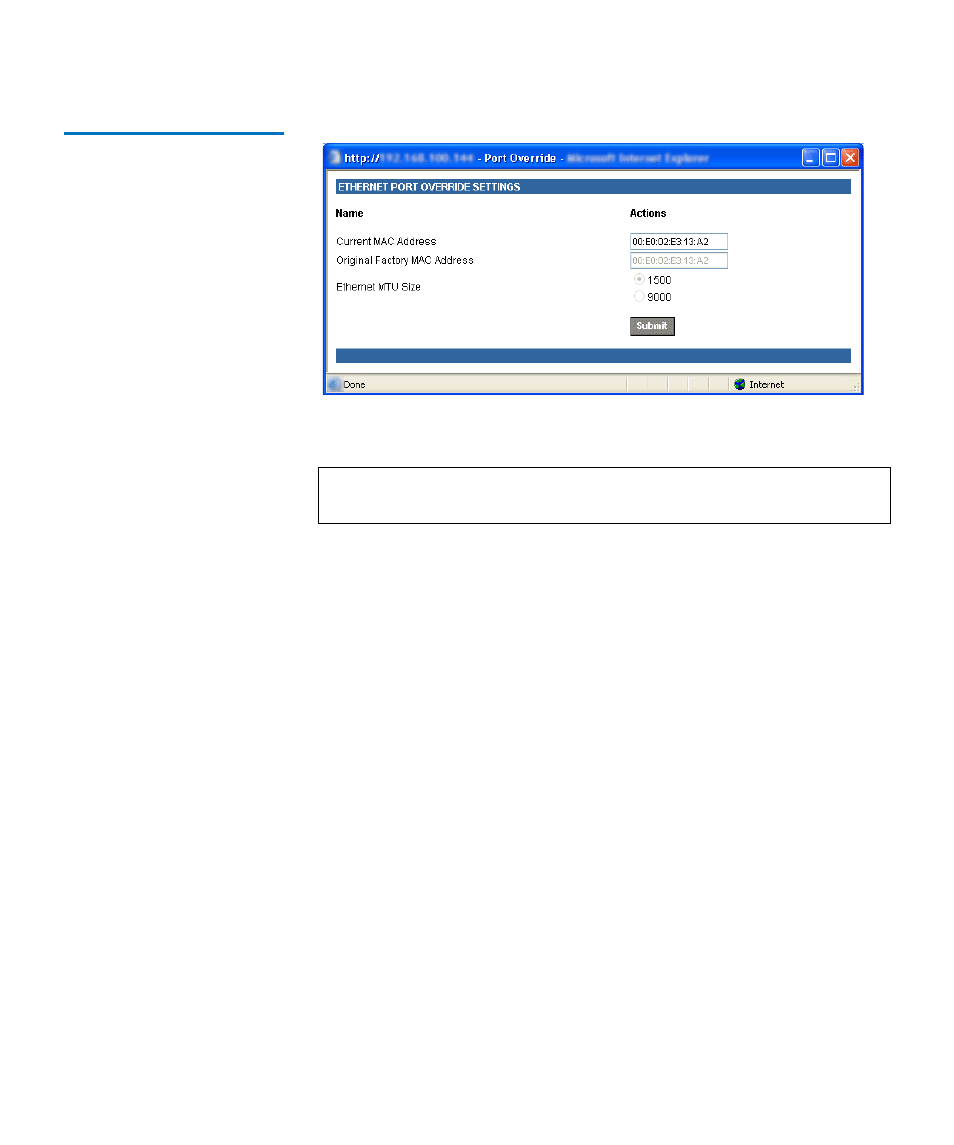

Figure 18 Ethernet Overrides
Settings Page
To finalize any changes for the override settings, select the
Submit
button
on the Ethernet Override Settings page.
•
Current MAC address
is the current Media Access Control (MAC)
address configured for the TC2201. The MAC address is a hardware
address that uniquely identifies each physical node on an Ethernet
network. While the MAC address can be changed, it is highly
recommended not to change this address.
•
Original Factory MAC address
is the MAC address assigned by the
hardware manufacturer to the Ethernet adapter in the hardware. The
TC2201 comes initialized with this assigned MAC address.
• Ethernet MTU Size is the Maximum Transmission Unit (MTU) for
Ethernet. This setting can be configured for 1500 or 9000 byte frames.
The Ethernet Management port is permanently set to 1500 and cannot
be changed. The default setting for the iSCSI ports is also 1500 but a
value of 9000 can be configured for jumbo frame support for iSCSI
frames.
Note:
Override settings should not be changed except by or under
the direction of an authorized Quantum technician.
