Chapter 1 Introduction
Processing SCSI Information
Quantum TC2201 User’s Guide
4
4
The SCSI controller sends the command to the SCSI device (target).
5
The SCSI target interprets the command and executes it.

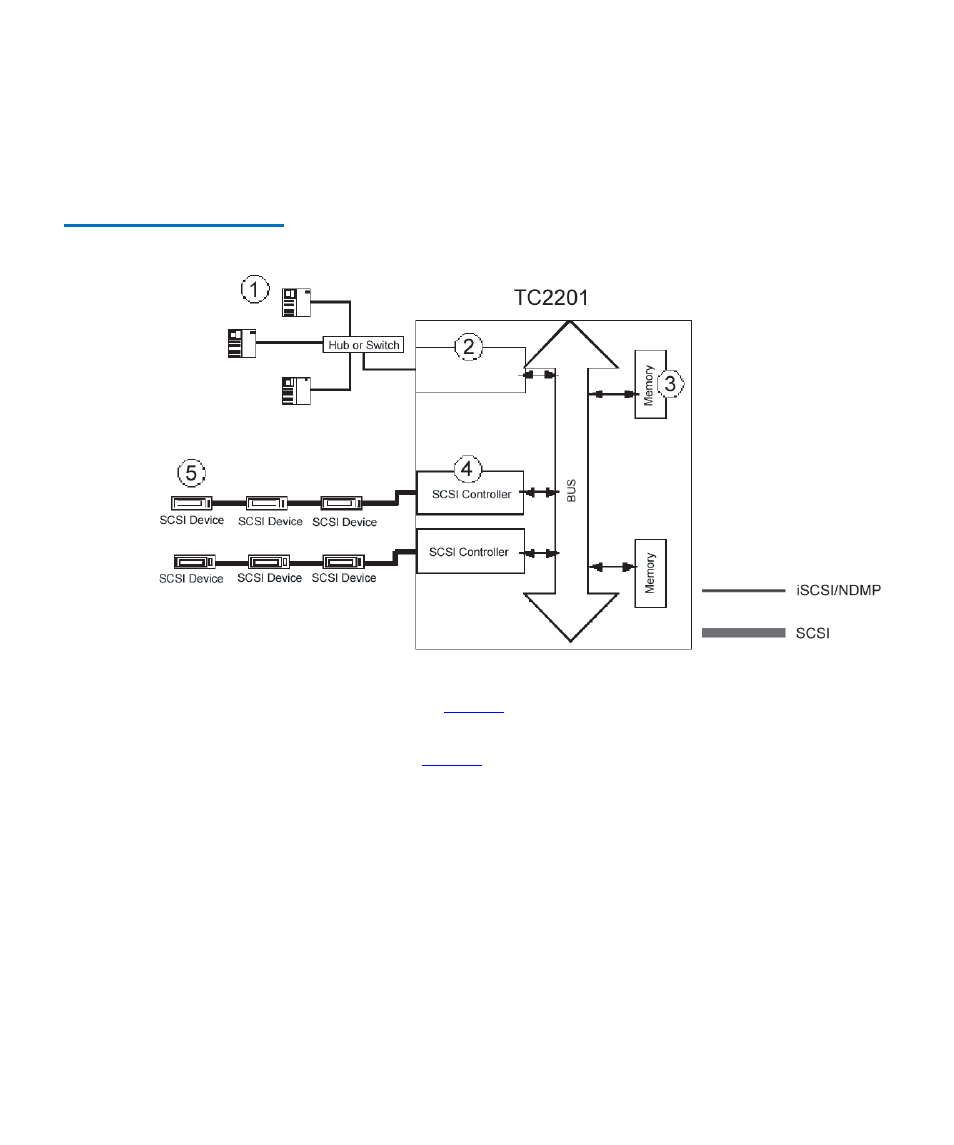

Figure 3 Information Processing
6
Data flows between the iSCSI host and SCSI target through payload
buffers (see
).
7
Response information flows from the SCSI target back to the iSCSI
).
