Removing and Replacing the Front Bezel on a Pedestal-Mounted Server
You must remove the front bezel from the chassis to gain access to the power supplies and optical
drive.
Removing the Front Bezel on a Pedestal-Mounted Server
To remove the front bezel parts, follow these steps:
1.
Use the indentation at the top edge of the bezel to pull the bezel away from the chassis and
to a 45 degree angle.

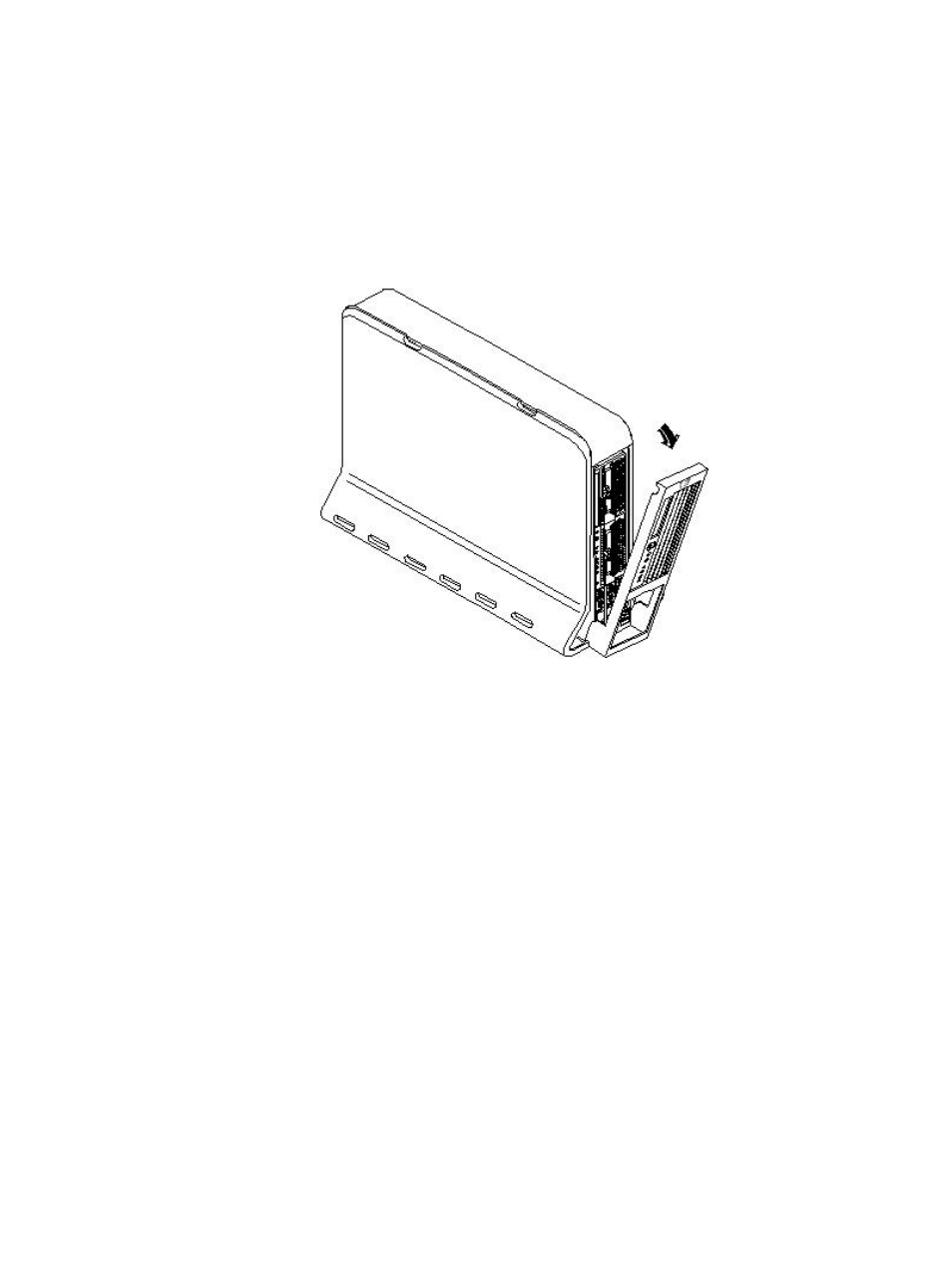

Figure 3-16 Removing the Front Bezel on a Pedestal-Mounted Server
2.
Lift the bezel off the mounting tabs and away from the chassis.
Replacing the Front Bezel on a Pedestal-Mounted Server
To replace the front bezel parts, follow these steps:
1.
Position the bezel at an approximate 45 degree angle and align the retaining slots at the
bottom with the retaining tabs on the chassis.
2.
Press the bezel against the chassis to engage the tabs.
