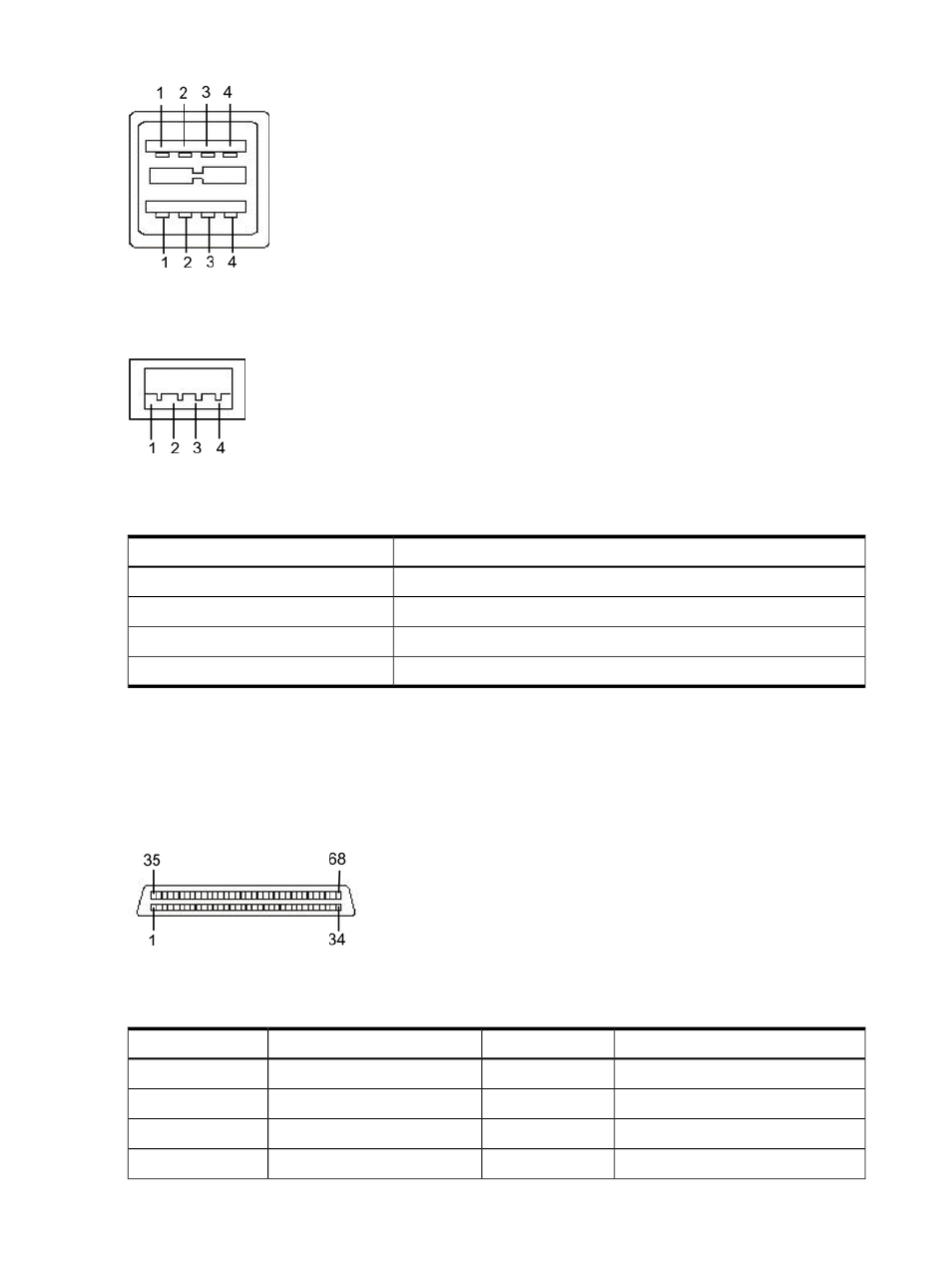

Figure 1-13 Dual USB Port Connector
Figure 1-14 shows the single USB port.
Figure 1-14 Single USB Port
Table 1-13 lists the USB pinouts.
Table 1-13 USB Pinouts
Signal Description Pin Number
+5 VDC 1
MR 2
PR 3
Ground 4
SCSI Port, Ultra 3, 68-Pin
A single, Ultra 3, 68 pin SCSI connector is located at the rear panel of the server. The external
connector supports SCSI channel “B.”
Figure 1-15 shows the SCSI port, Ultra 3, 68-pin.
Figure 1-15 SCSI Port, Ultra 3, 68-Pin
Table 1-14 lists the SCSI port pinouts.
Table 1-14 SCSI Port Pinouts
Signal Description Pin Number Signal Description Pin Number
S35 (–DB 12) 35 S1 (+DB 12) 1
S36 (–DB 13) 36 S2 (+DB 13) 2
S37 (–DB 14) 37 S3 (+DB 14) 3
S38 (–DB 15) 38 S4 (+DB 15) 4
